Manitowoc Grove RT765E-2

7-15
RT765E-2 SERVICE MANUAL POWER TRAIN
7
Published 9-04-2014, Control # 422-08
GROVE
Tier 3 Muffler

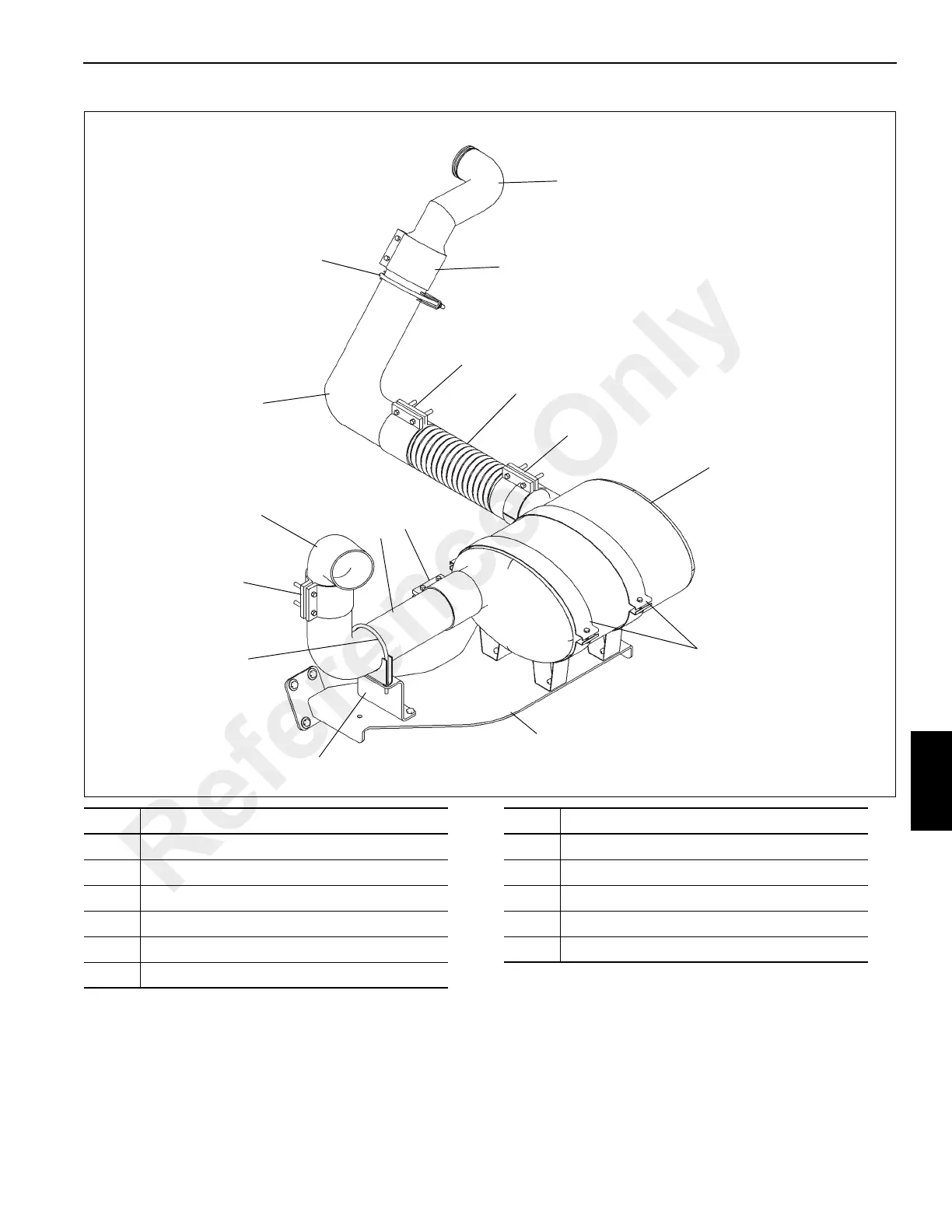

FIGURE 7-8
6
10
7
11
8
9
1
5
2
3
4
2
2
2
2
3
7844
Item Description
1 Exhaust Tube
2 Clamp
3 Muffler Clamp
4 Elbow
5 Flex Tube
6 Elbow
Item Description
7 Exhaust Elbow
8 Muffler
9 Mounting Band
10 Exhaust Bracket
11 Bracket
Reference Only
