HYDRAULIC SYSTEM RT765E-2 SERVICE MANUAL
2-16
Published 9-04-2014, Control # 422-08

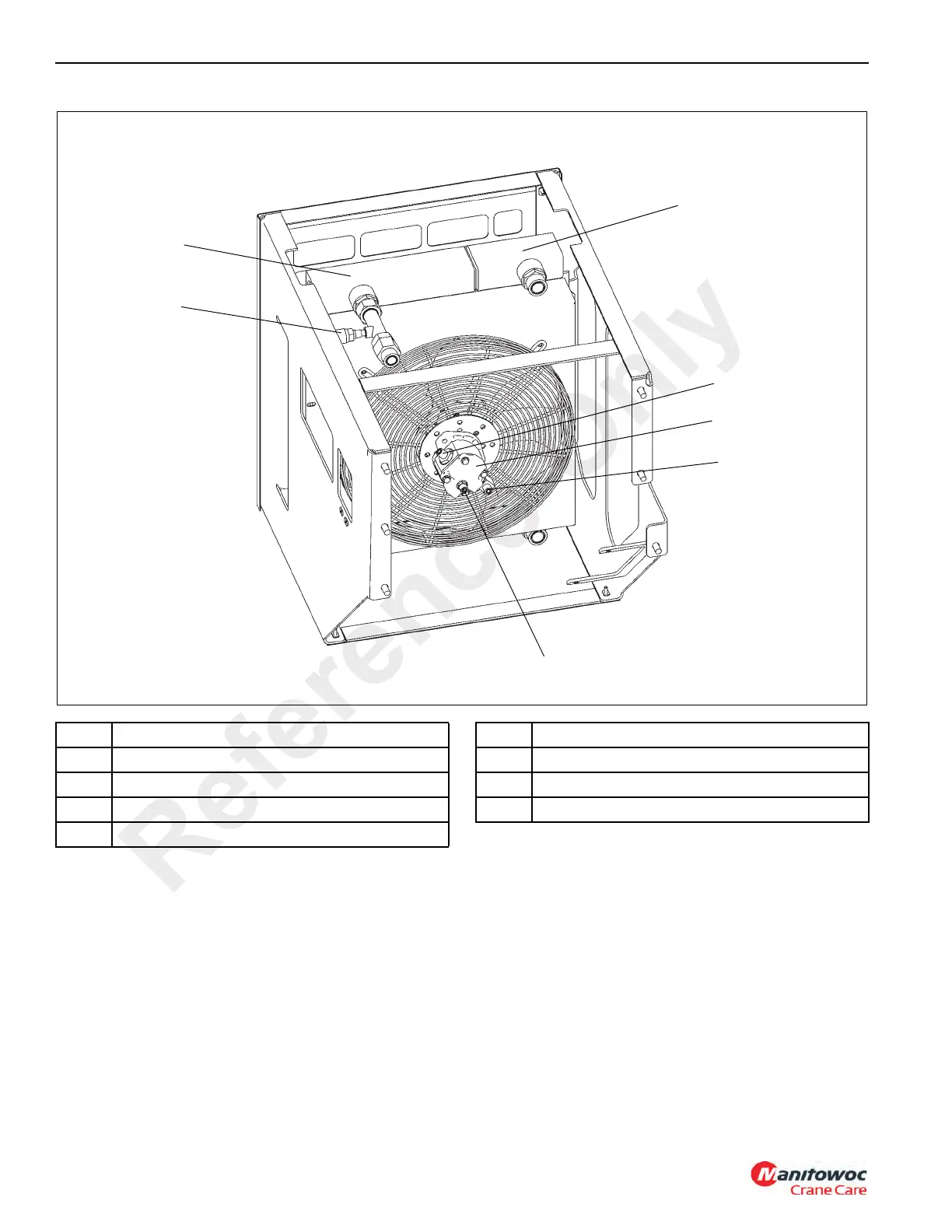

FIGURE 2-3
5
1
2
3
6
7
4
7839
Item Description
1Outlet Port
2 Fan Motor
3 Inlet Port
4Drain Port
Item Description
5 Temperature Switch
6 Transmission Oil Cooler
7 Hydraulic Oil Cooler
Reference Only
