Manitowoc Grove RT765E-2

2-31
GROVE
RT765E-2 SERVICE MANUAL HYDRAULIC SYSTEM
2
Published 9-04-2014, Control # 422-08
7840

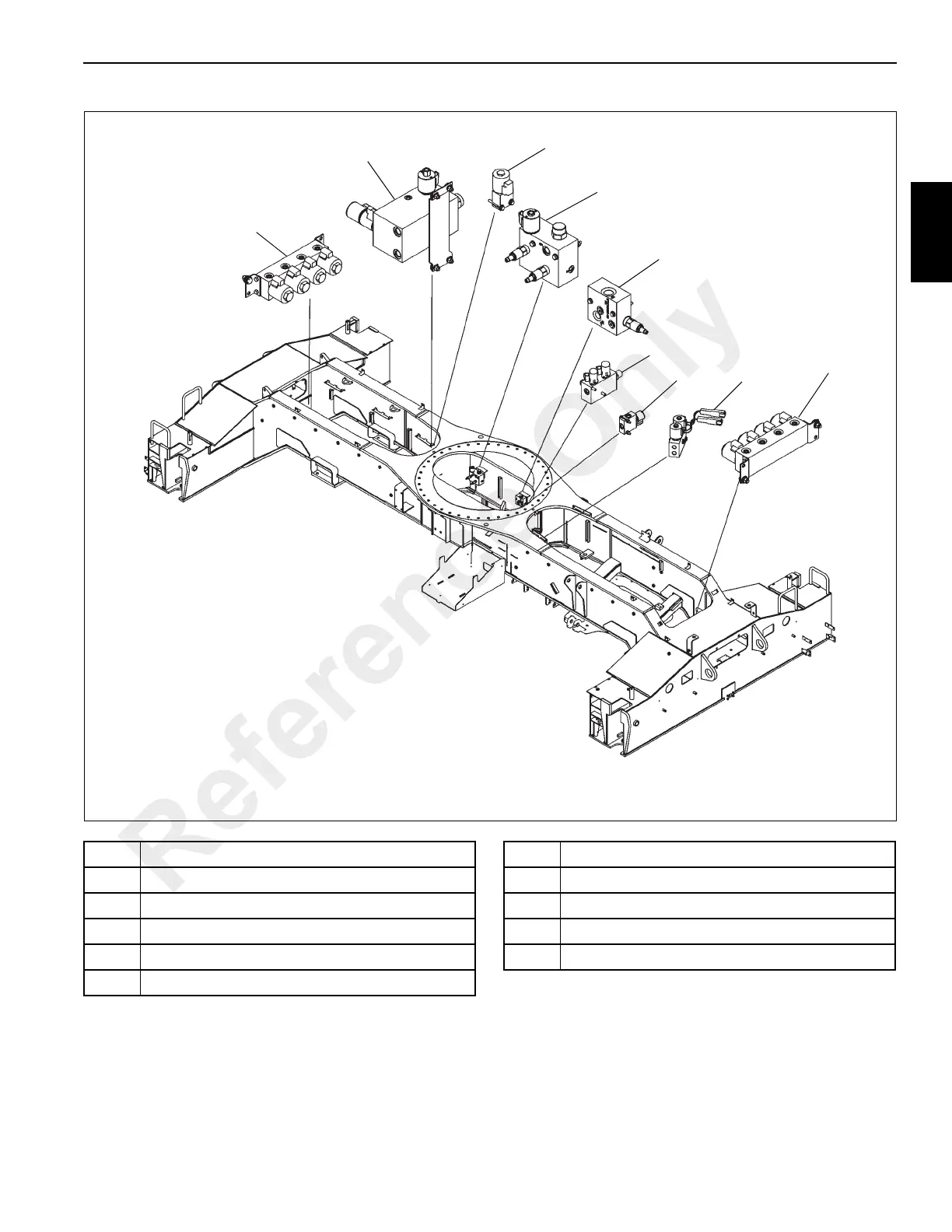

FIGURE 2-17
1
2
3
4
6
8
Valve Installation - Carrier
5
7
Rear
9
Item Description
1 Front Outrigger Control Valve
2 Integrated Outrigger/Rear Steer Valve
3 Fan Bypass Valve
4 Priority Flow Divider Valve
5 Adjustable Flow Valve
Item Description
6 Park Brake Range Shift Valve
7 Differential Lock Valve (Optional)
8 Axle Lockout Valve
9 Rear Outrigger Control Valve
Reference Only
