HYDRAULIC SYSTEM RT765E-2 SERVICE MANUAL
2-42
Published 9-04-2014, Control # 422-08

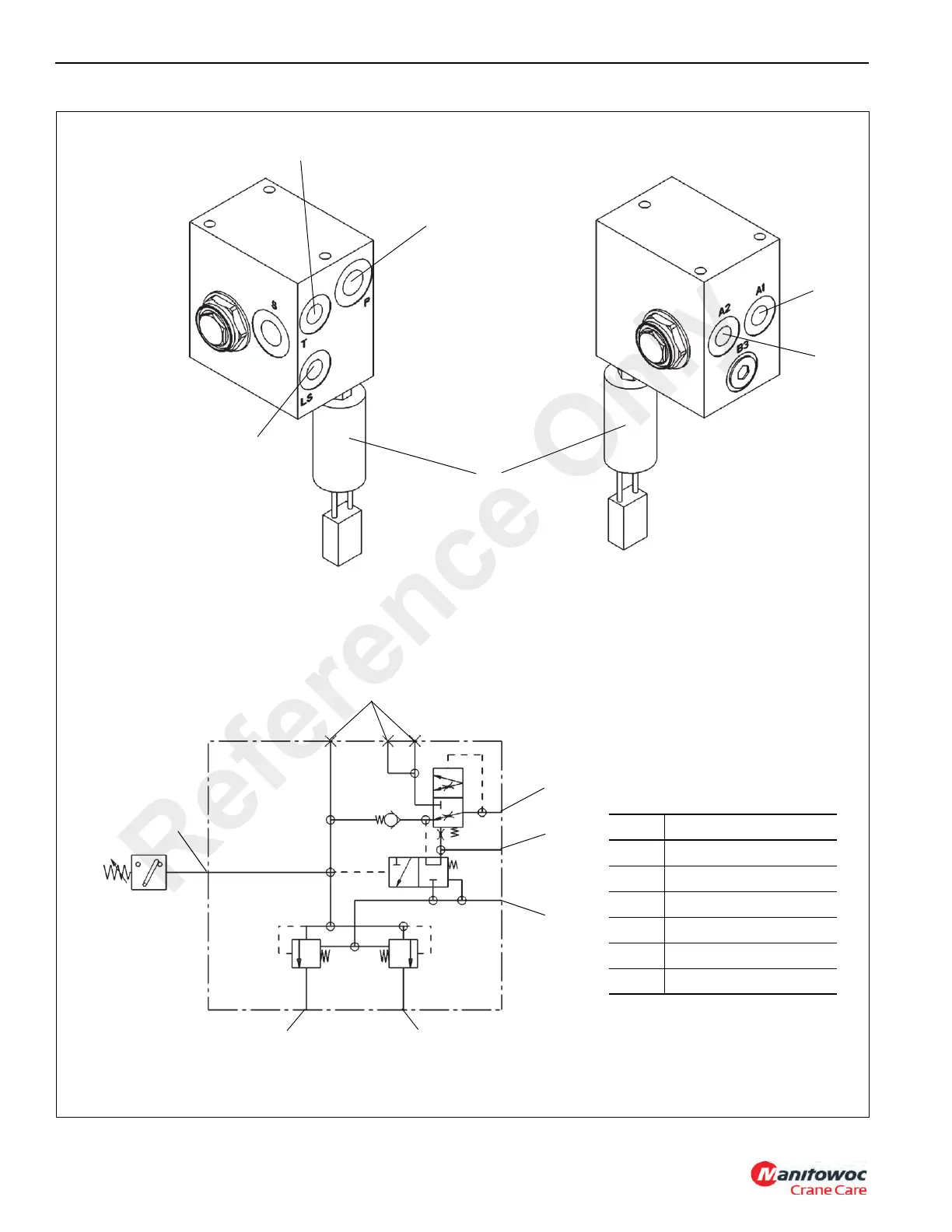

FIGURE 2-25
Valve Hydraulic Schematic
7752-01
7752-02
7752-03
4
6
2
1
3
5
Item Description
1 Load Sense Port
2 Tank Port
3 Pressure Port
4 Accumulator Port 1A
5 Accumulator Port 2A
6 Pressure Switch
4
6
2
1
3
5
These ports plugged
Reference Only
