RT770E POWER TRAIN
Published 11/26/2014, Control # 447-05
9. Attach the fuel filter and engine lubrication filter to the
frame.Connect the battery cables and engine electrical
harness connector in accordance with the identification
marks made during removal.
10. Connect the electrical wiring to the hourmeter as tagged
during removal.
11. Connect the air filter tubing at the engine and the air fil-
ter. Connect the exhaust tubing to the engine and muf-
fler. On Tier IV engines, replace the exhaust tube
gaskets with new
12. Install the hood top door assembly.
13. Service the transmission, engine lubrication system, and
engine cooling system.
14. Start the engine. Check all hoses and fittings for leaks.
Recheck all fluid levels.
Engine Drive Belts
The proper operation of engine belt-driven components such
as the alternator, fan, and water pump depend on the proper
condition and tension of the engine drive belt.
NOTE: Belt tension is maintained with an automatic belt
tension device.
The engine drive belt should be inspected visually on a daily
basis. The drive belt should be inspected for cracks, frayed
areas, and glazed or shiny surfaces (see Figure 7-1). A drive
belt that is glazed or shiny indicates belt slippage.
Engine drive belt damage can be caused by various factors
such as incorrect tension, incorrect belt size, misaligned
engine pulleys, incorrectly installed belt, or by oil, grease, or
hydraulic fluid on the belt.
Refer to the engine manufacturer’s manual for any special
tools or belt tension specifications.
OK
OK
OK

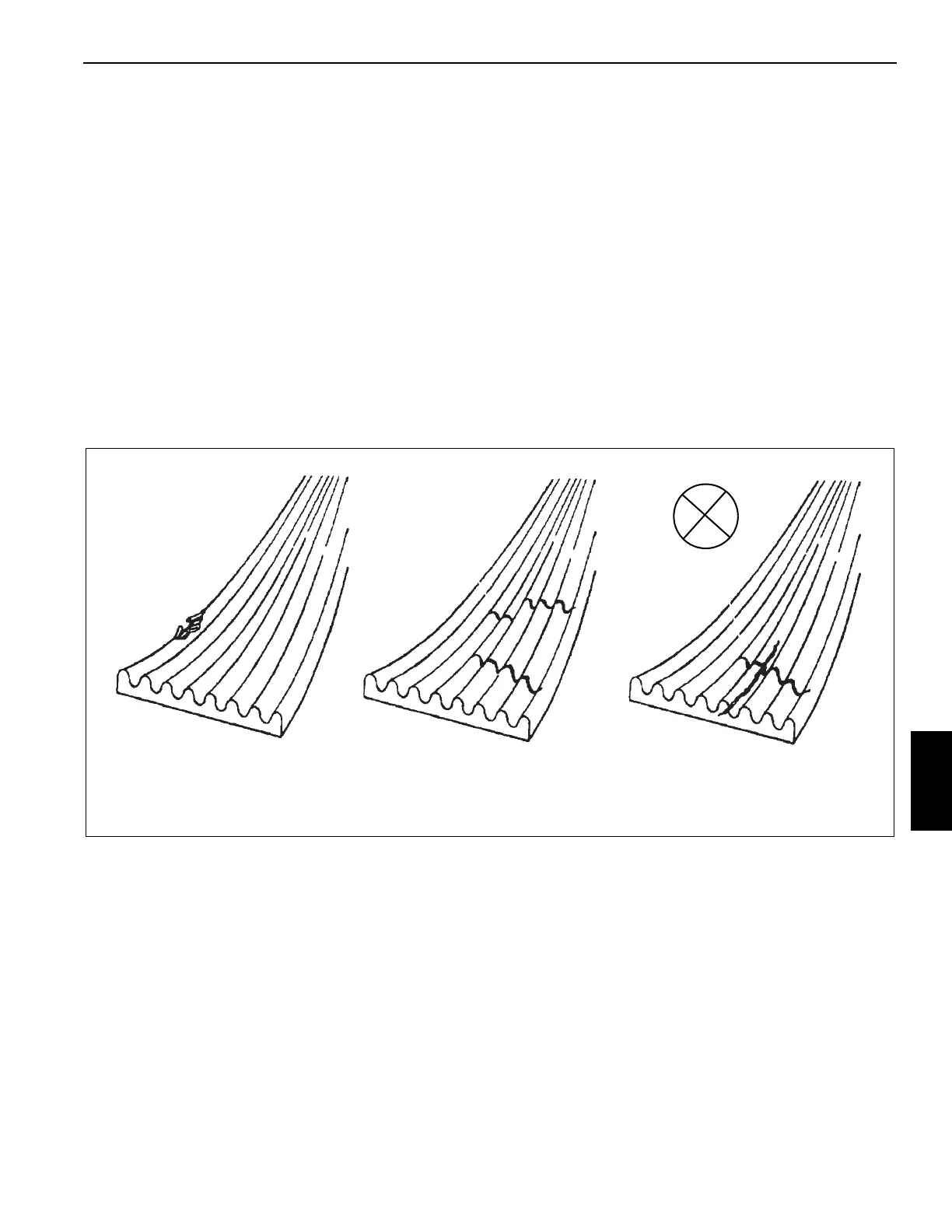

FIGURE 7-1
Missing Material
Traverse Cracks
Longitudinal Cracks Intersecting with Transverse
Cracks must be Replaced
