Manitowoc QuietQube SD0672C - S1470 C;S1870 C;S2070 C;S2170 C

Part Number 80-1505-3 6/11 291
S1470C/S1870C/S2070C/S2170C

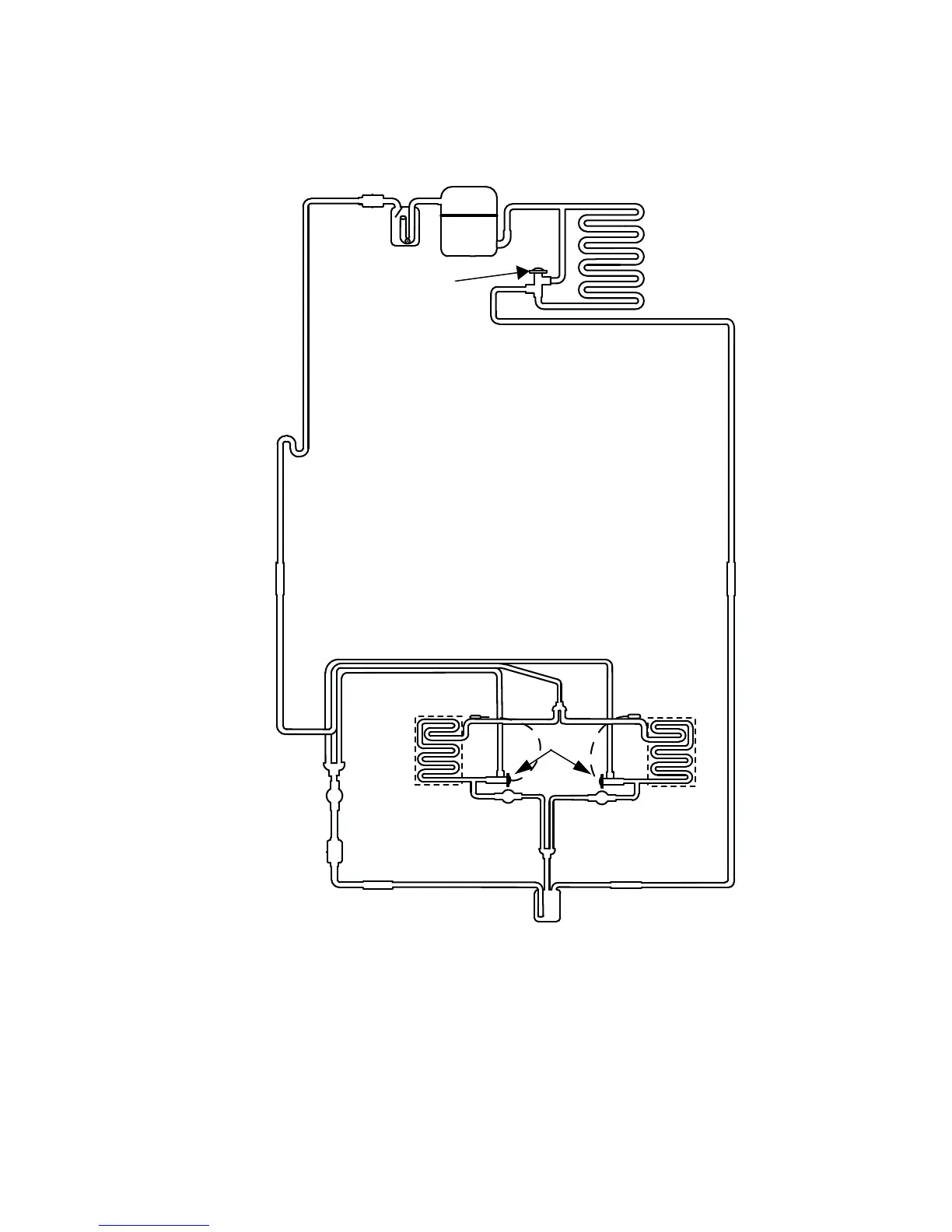

COMPRESSOR
LIQUID LINE
SHUT-OFF
VALVE
LLSV
EVAPORATOR
HEAT EXCHANGER
CONDENSER
SUCTION
FILTER
CHECK VALVE
RECEIVER
DRIER
HEAD
PRESSURE
CONTROL
VALVE
ACCUMULATOR
HARVEST
VALVE
SUCTION
SHUT-OFF
VALVE
EVAPORATOR
TXV
HARVEST
VALVE
S Trap Required 21’
or Greater Rise
RECEIVER SERVICE
VALVE
