Manitowoc QuietQube SD0672C

294 Part Number 80-1505-3 6/11

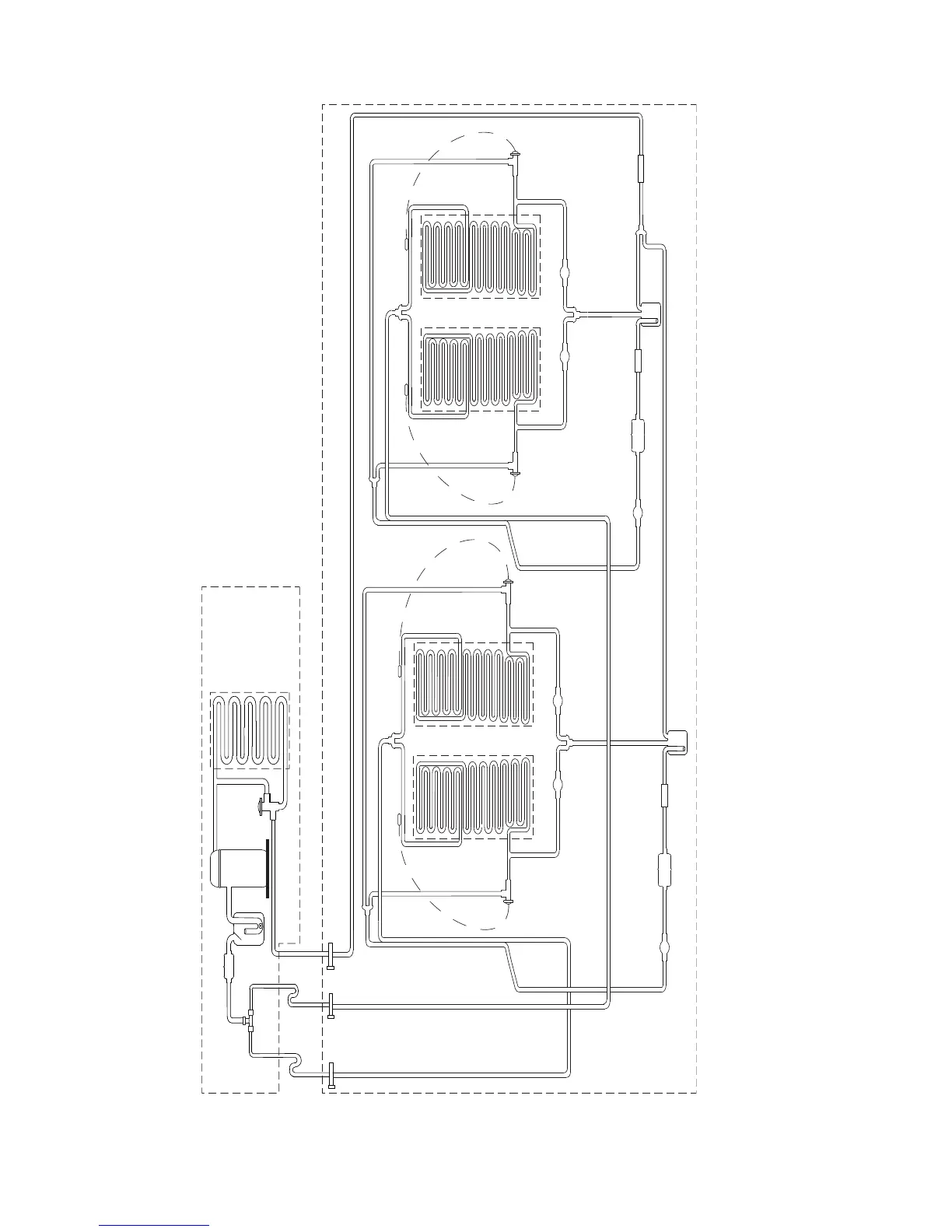

S3070C Without Check Valve
x
x
x
x
EVAPORATOR 1 EVAPORATOR 2
EVAPORATOR 3
EVAPORATOR 4
HARVEST SOLENOID
VALVE
HARVEST SOLENOID
VALVE
HARVEST SOLENOID
VALVE
HARVEST SOLENOID
VALVE
EXPANSION
VALVE
EXPANSION
VALVE
EXPANSION
VALVE
EXPANSION
VALVE
HEAT
EXCHANGER
HEAT
EXCHANGER
DRIER
RECEIVER
CHECK VALVE
SHUT-OFF
VALVES
S-TRAPS
REQUIRED
21’ OR
GREATER
RISE
ACCUMULATOR
SUCTION LINE
FILTER
SCROLL COMPRESSOR
HEAD PRESSURE
CONTROL VALVE
CONDENSER
TUBING MUST BE
CONNECTED
TO TEE
AS SHOWN
CVD
CONDENSING
UNIT
ICE MACHINE
HEAD SECTION
RECEIVER
SERVICE VALVE
LIQUID LINE
SOLENOID VALVE
DRIER
RECEIVER
RECEIVER
SERVICE VALVE
LIQUID LINE
SOLENOID VALVE
