Part Number 80-1505-3 6/11 31
S1470C/S1870C/S2070C/S2170C
INSTALLATION ON A MANITOWOC BIN
An ice deflector kit is required for installation. Order
appropriate kit (30” or 48”) for your bin.

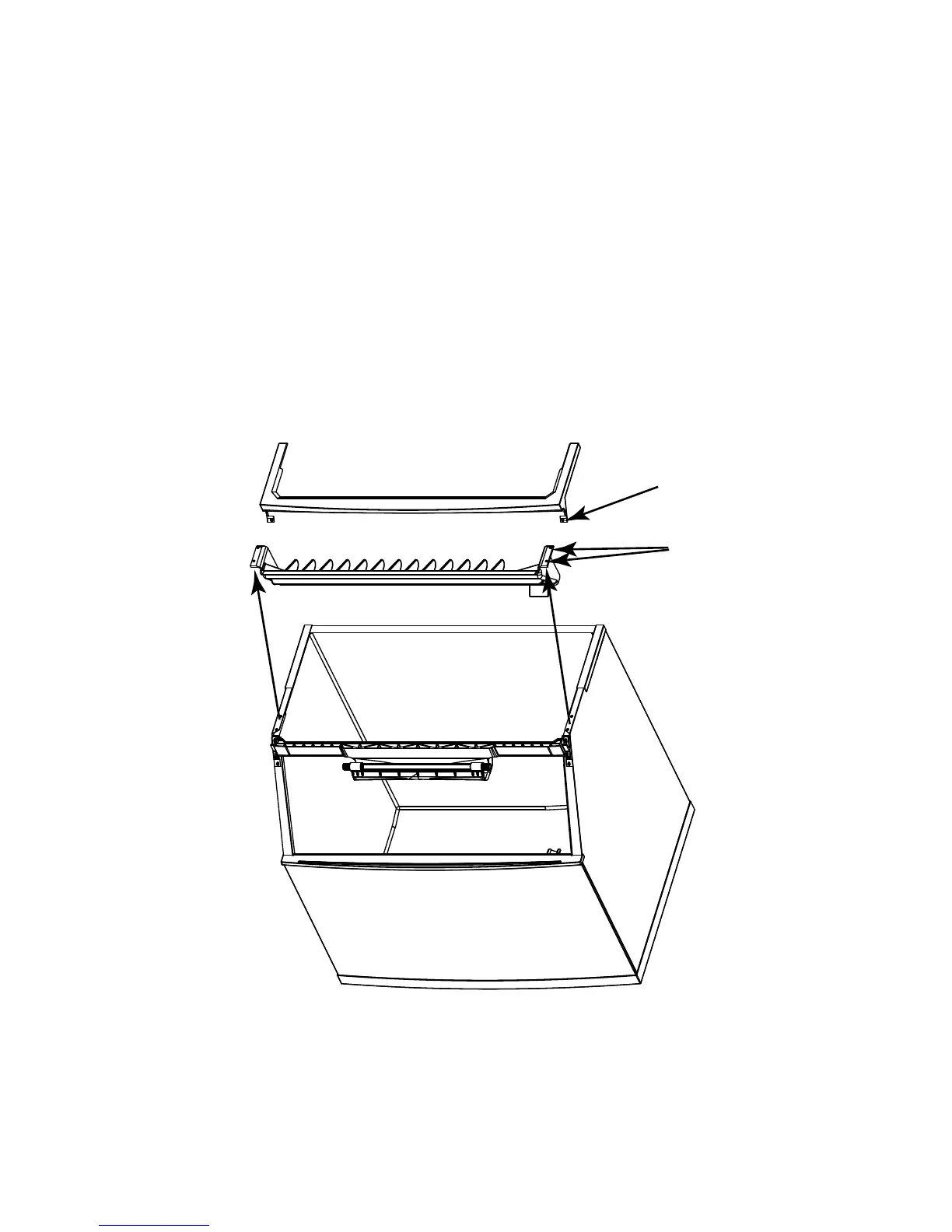

Step 1 Remove the stock ice deflector.
A. Remove the left and right side cover screws
B. Remove the cover to expose four screws,
which secure the plastic deflector.
C. Remove fours screws and plastic deflector
D. Install polymer spacer on each side and
secure with the four screws.
E. Reinstall cover and screws.
To Next Page
