TRANSMISSION AND TORQUE CONVERTER CD5515-2/YB5515-2 SERVICE MANUAL

7-20 Published 1-20-2017, Control# 483-02

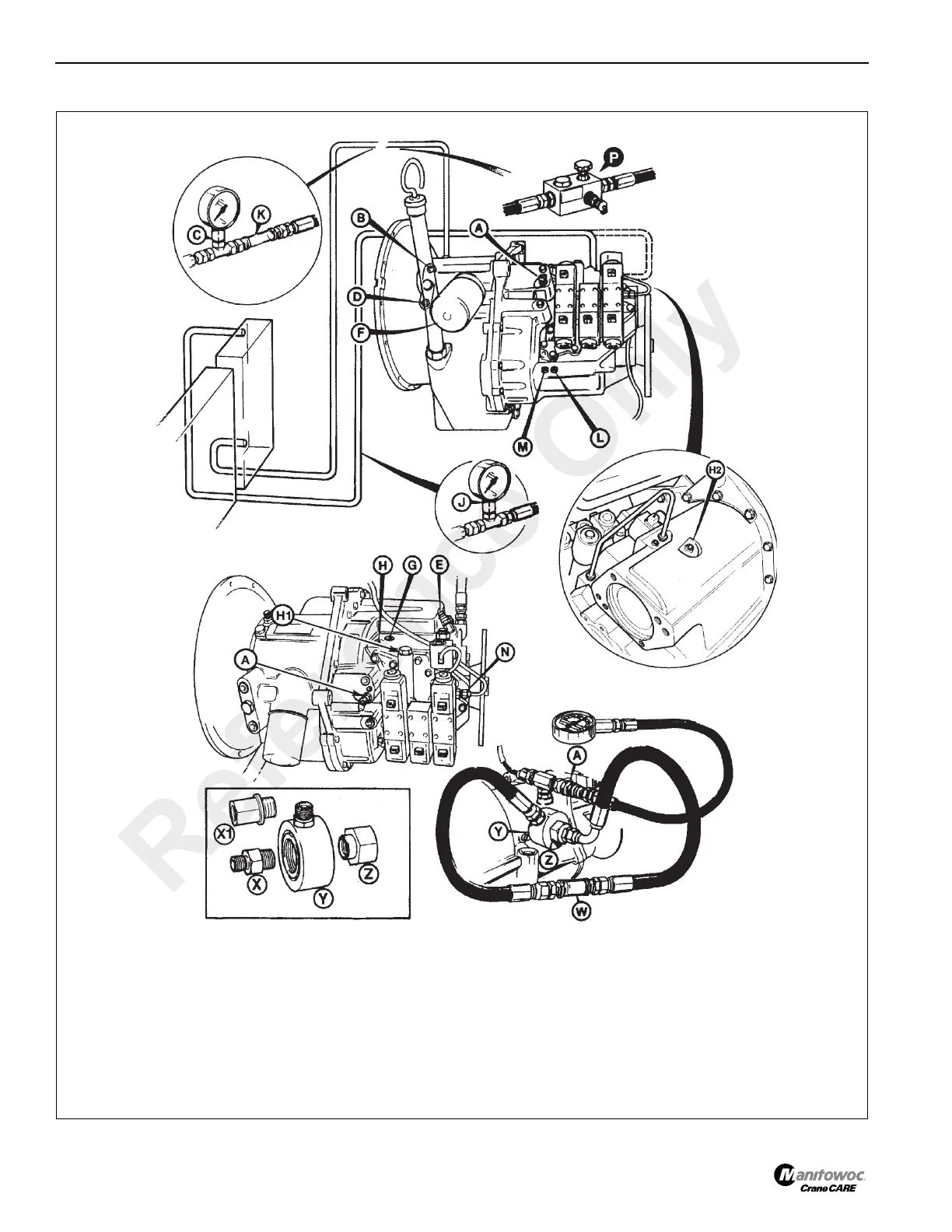

FIGURE 7-15

a2279

A - Mainline Pressure

B - Converter inlet/converter relief valve pressure

C - Converter outlet pressure

D - Mainshaft clutch pressure

E - Layshaft clutch pressure

F - Pump flow (remove filter and fit adapters)

G - Reverse high ratio clutch pressure

H - Reverse low ratio clutch pressure

J - Lubrication Pressure

K - Cooler flow (flowmeter in line from cooler to

transmission)

L - Forward high ratio clutch pressure

M - Forward low ratio clutch pressure

N - 5- wheel drive clutch pressure

P - Load valve

TEST POINTS

Reference Only
