Manitowoc Shuttlelift CD5515-2 Service And Maintenance Manual

STRUCTURALS CD5515-2/YB5515-2 SERVICE MANUAL
11-28 Published 1-20-2017, Control# 483-02

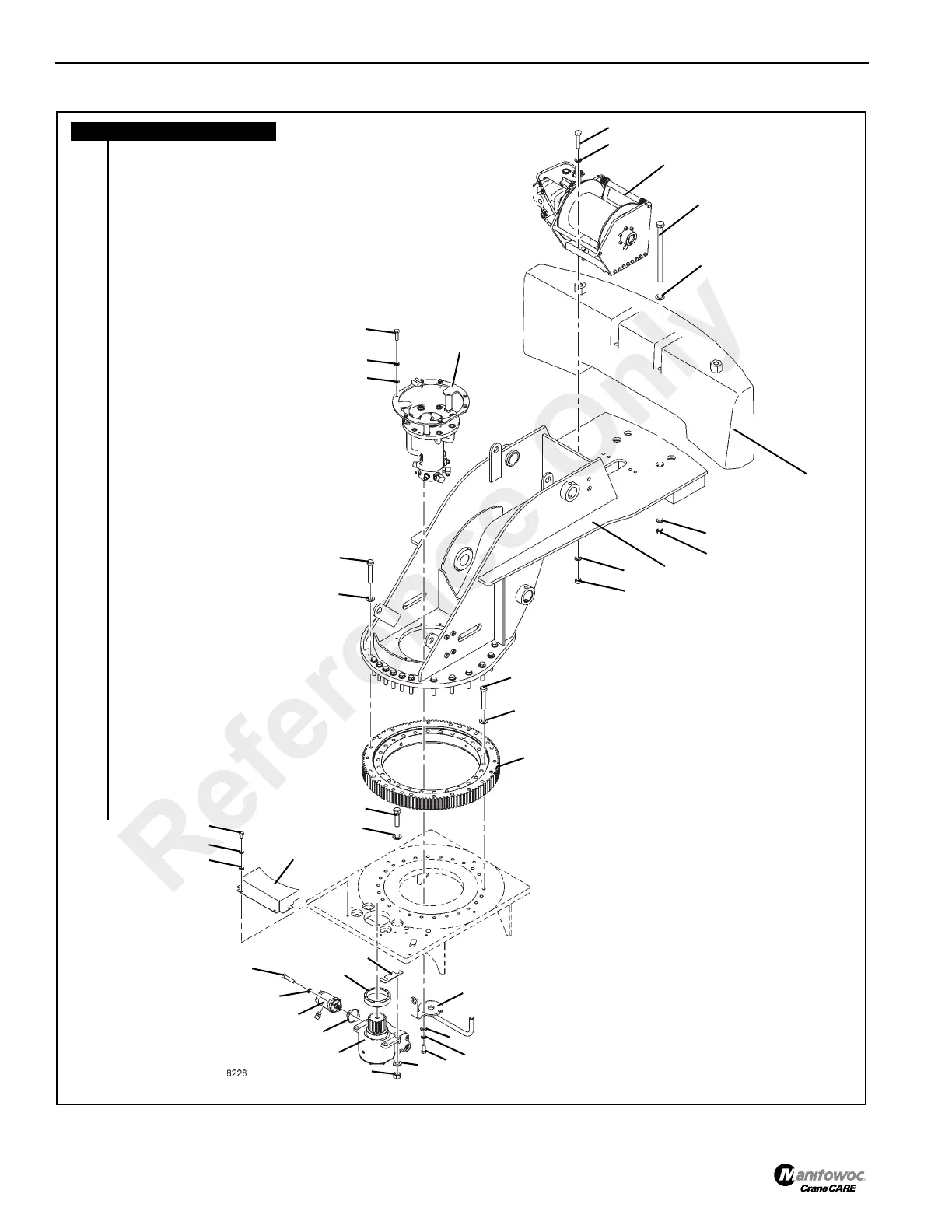

FIGURE 11-23
a0488
Mast Assembly
Item Description
1Mast
2 Counterweight
3Hoist
4Bolt
5Washer
6Washer
7Nut
8Washer
9Nut
10 Bolt
11 Washer
12 Bolt
13 Lock Washer
14 Washer
15 Hydraulic Swivel
16 Bolt
17 Washer
18 Bolt
19 Swing Bearing
20 Bolt
21 Washer
22 Bolt
23 Lock Washer
24 Washer
25 Pinion Gear Cover
26 Bolt
27 Washer
28 Swing Motor
29 Gasket
30 Swing Gear Box
31 Nut
32 Washer
33 Bolt
34 Lock Washer
35 Washer
36 Stop Assembly
37 Bar
38 Eccentric Ring
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Reference Only
