Manitowoc Shuttlelift CD5515-2 - Rear Axle Brakes

GROVE Published 1-20-2017, Control# 483-02 9-13
CD5515-2/YB5515-2 SERVICE MANUAL
9

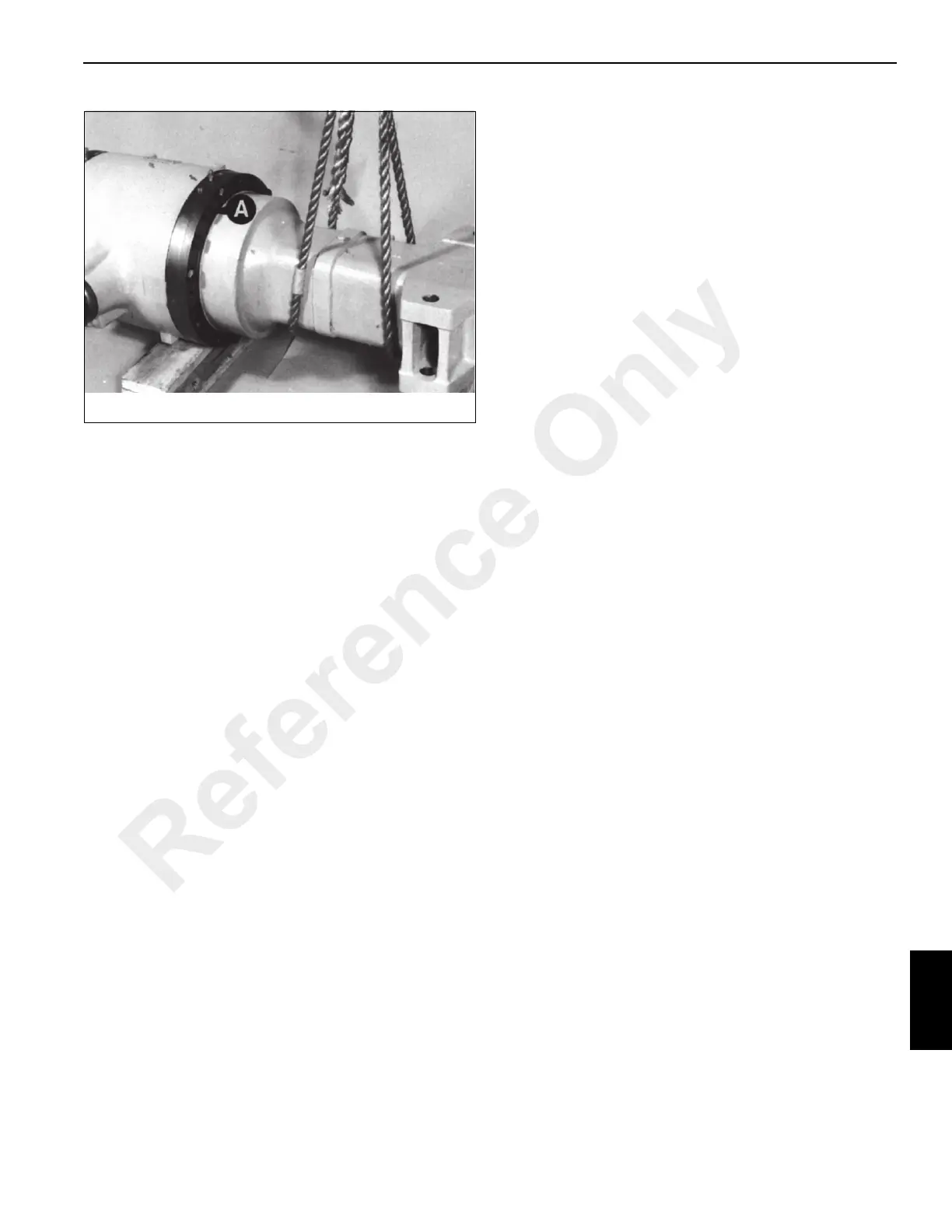

7. Install bolts A Figure 9-25 and tighten to a torque of 244
Nm (178 lb-ft).
NOTE: Check the grade of bolts installed. Grade 8.8
should be tightened to a torque of 244 Nm (178 lb-
ft). Grade 12.9 bolts should be tightened to a torque
of 400 Nm (295 lb-ft).
8. Fill the axle with recommended lubricant. See
Preventative Maintenance on page 5-1.
9. Install the axle to the crane’s frame. Refer to Axles/Drive
Shafts/Wheels and Tires on page 8-1.
Rear Axle Brakes
Refer to Axles/Drive Shafts/Wheels and Tires on page 8-1
for Axle Hub Assembly Service. The service instructions
include disassembly, replacement and assembly of the rear
axle brakes.
FIGURE 9-25
p0088
Reference Only
