GROVE Published 1-20-2017, Control# 483-02 7-27
CD5515-2/YB5515-2 SERVICE MANUAL TRANSMISSION AND TORQUE CONVERTER
3. Install the torque converter and drive plate assembly 4 to
the engine flywheel using six bolts 6. Check the
alignment of the torque converter to the flywheel using a
dial indicator held in position against the converter hub
Figure 7-26. The torque converter must be centered on
the flywheel within 0.15 mm (0.006 in).
NOTE: If the alignment should exceed 0.15 mm (0.006 in),
remove the torque converter and check the spline
shaft for burrs, remove the drive shaft and rotate it
180° on the torque converter and repeat step 3.
4. Apply Loctite® 243 to drive plate mounting bolts 6 and
tighten to a torque of 19 Nm (14 lb-ft).
5. Clean and lubricate the splines of the transmission input
shaft.
6. Align the transmission input shaft splines with the
splines of the torque converter impeller and assemble
the transmission/torque converter housing to engine
flywheel housing. Install the 12 bolts and lockwashers
and tighten to proper torque of 39 Nm (28 lb-ft).
7. Install the power unit into the crane.
8. Connect all removed hydraulic lines, electrical
harnesses, cables, etc. Fill the transmission with
recommended transmission fluid. Refer to Section 5,
Preventive Maintenance.
p0162

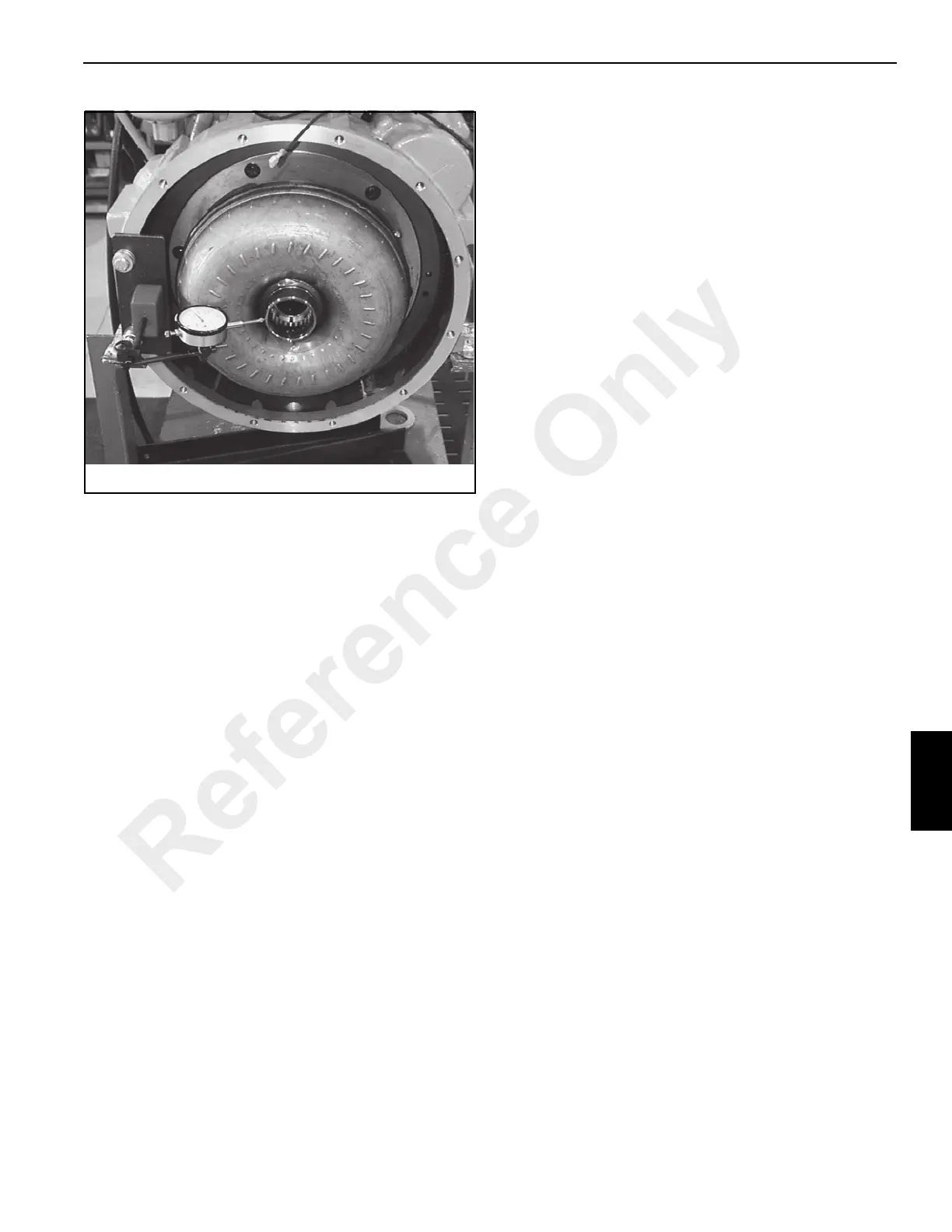

FIGURE 7-26
Checking Centering
Reference Only
