GROVE Published 1-20-2017, Control# 483-02 8-13
CD5515-2/YB5515-2 SERVICE MANUAL AXLES/DRIVE SHAFTS/WHEELS AND TIRES

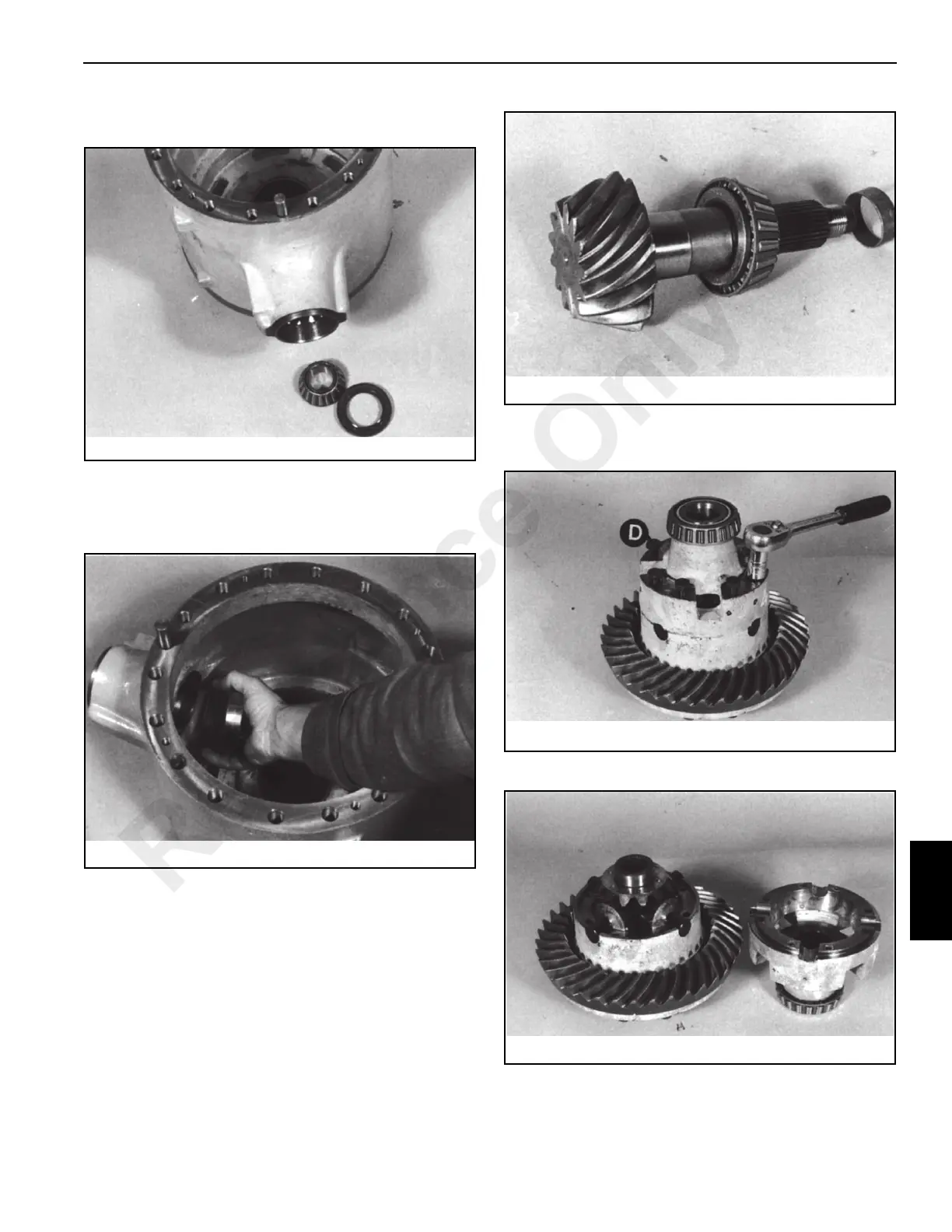

10. Remove the pinion seal and outer bearing cone
Figure 8-19.
11. If necessary, drive out the pinion inner bearing cup and
shims Figure 8-20. Discard the shims. Repeat for the
outer bearing cup, if required. There are no shims for the
outer bearing cup.
12. Remove and discard the pinion collapsible spacer
Figure 8-21. Pull off the bearing cone.
13. To dismantle the differential assembly:
a. Remove bolts D Figure 8-22.
b. Lift off the top half housing Figure 8-23.
