CD5515-2/YB5515-2 SERVICE MANUAL AXLES/DRIVE SHAFTS/WHEELS AND TIRES
8

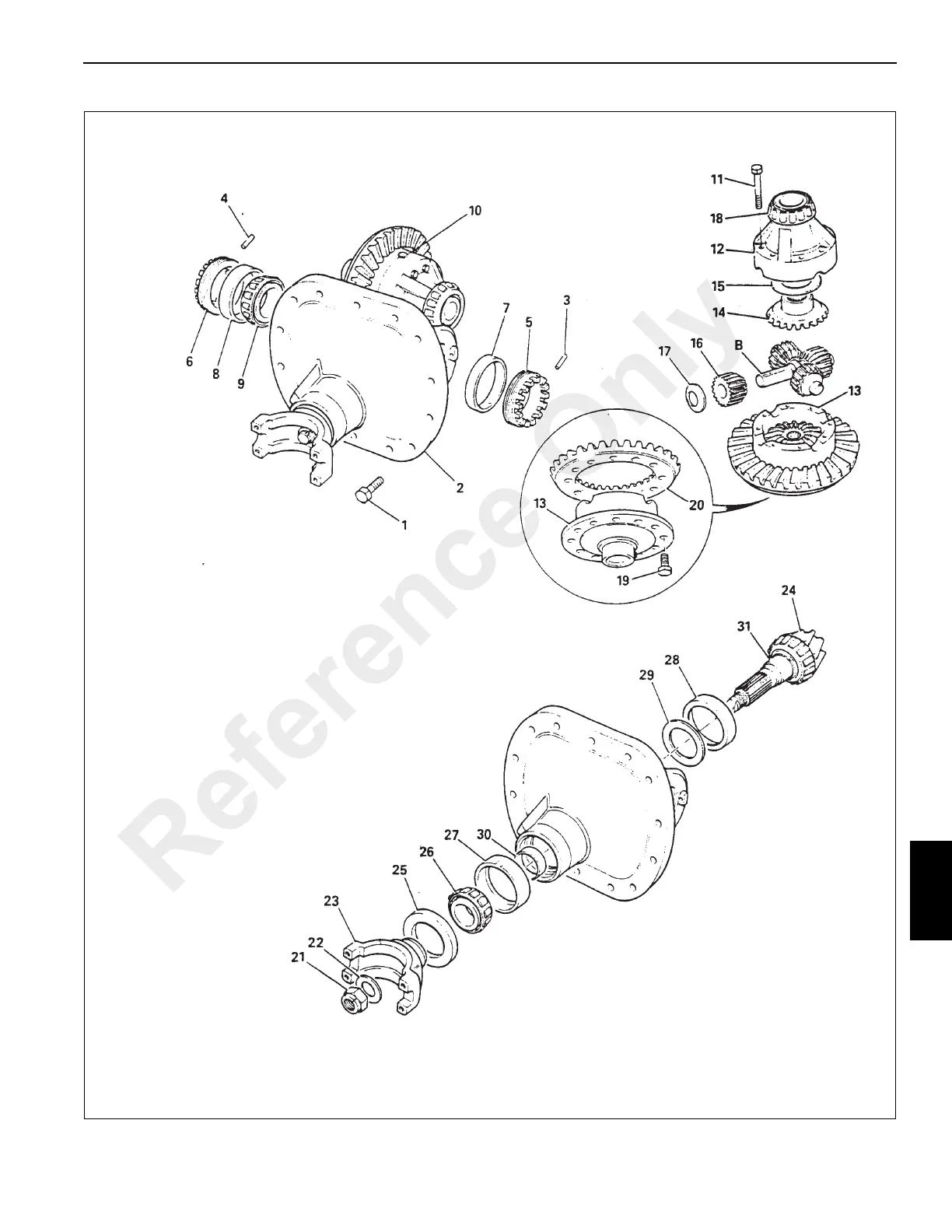

FIGURE 8-49
a0213
1. Bolts (16)
2. Drive Head Carrier
3. Tension Pin
4. Tension Pin
5. Castellated Nut
6. Castellated Nut
7. Outer Bearing Race
8. Outer Bearing Race
9. Taper Roller Bearing Cone
10. Differential Assembly
11. Retaining Bolts (8)
12. Case Half
13. Case Half
14. Differential Side Gears (2)
15. Thrust Washers (2)
16. Planet Gears (4)
17. Thrust Washers (4)
18. Taper Roller Bearing Cone
19. Verbus Ripp Bolts (12)
20 Crownwheel
21. Pinion Nut
22. Washer
23. Drive Yoke
24. Pinion
25. Pinion Oil Seal
26. Taper Roller Bearing Cone
27. Bearing Outer Race
28. Bearing Outer Race
29. Shims
30. Collapsible Spacer
31. Taper Roller Bearing Cone
Drive Head
Reference Only
