STEERING SYSTEM CD5515-2/YB5515-2 SERVICE MANUAL
10-2 Published 1-20-2017, Control# 483-02

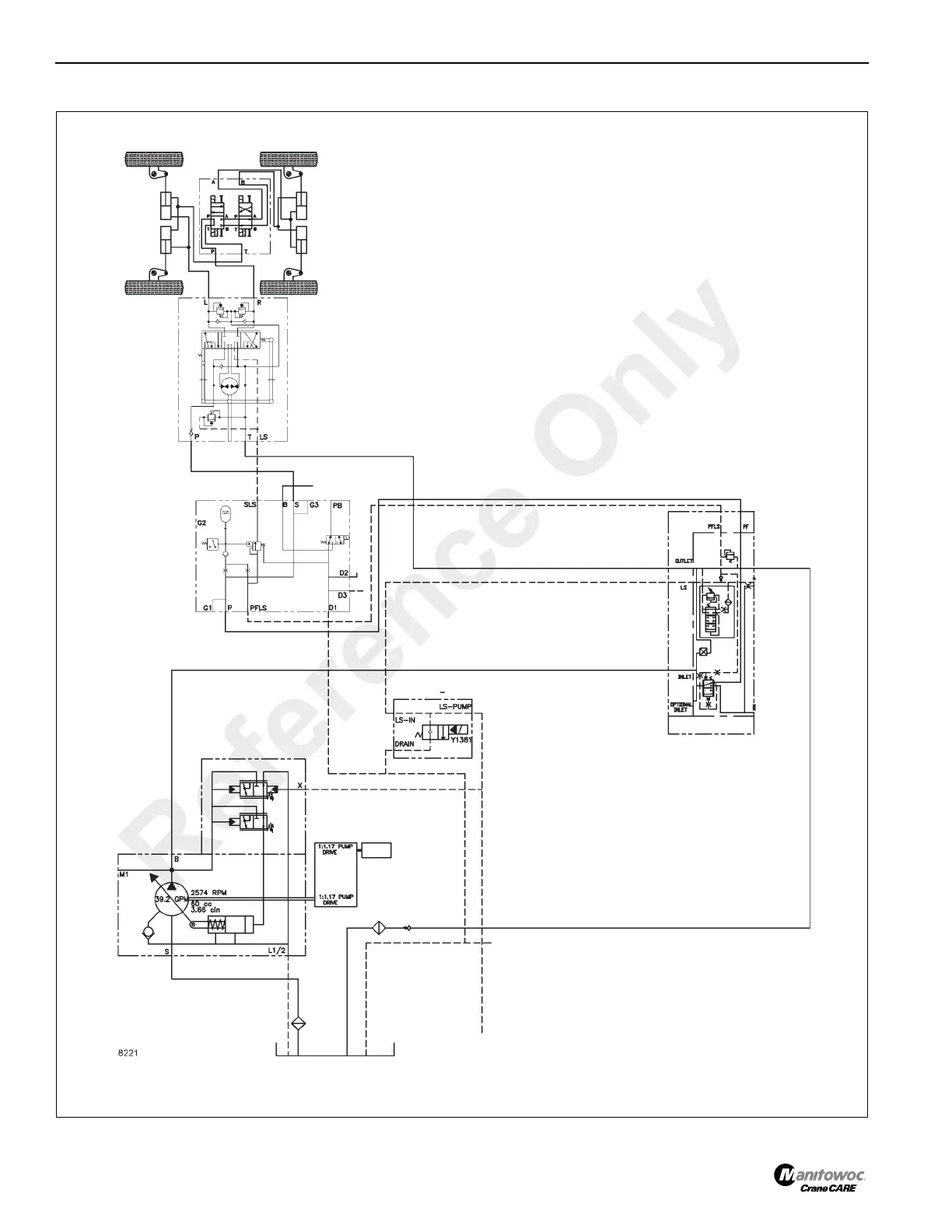

FIGURE 10-1
a2095
Steering System
Variable
Displacement
Piston Pump
Hydraulic Tank
Brake/Steering
Manifold
Priority Flow Control
Valve
Load Sense
Dump Valve
Engine
Transmission
Steering
Orbitrol
Rear
Front
Steering
Selector
Manifold
Reference Only
