STRUCTURALS CD5515-2/YB5515-2 SERVICE MANUAL
11-10 Published 1-20-2017, Control# 483-02

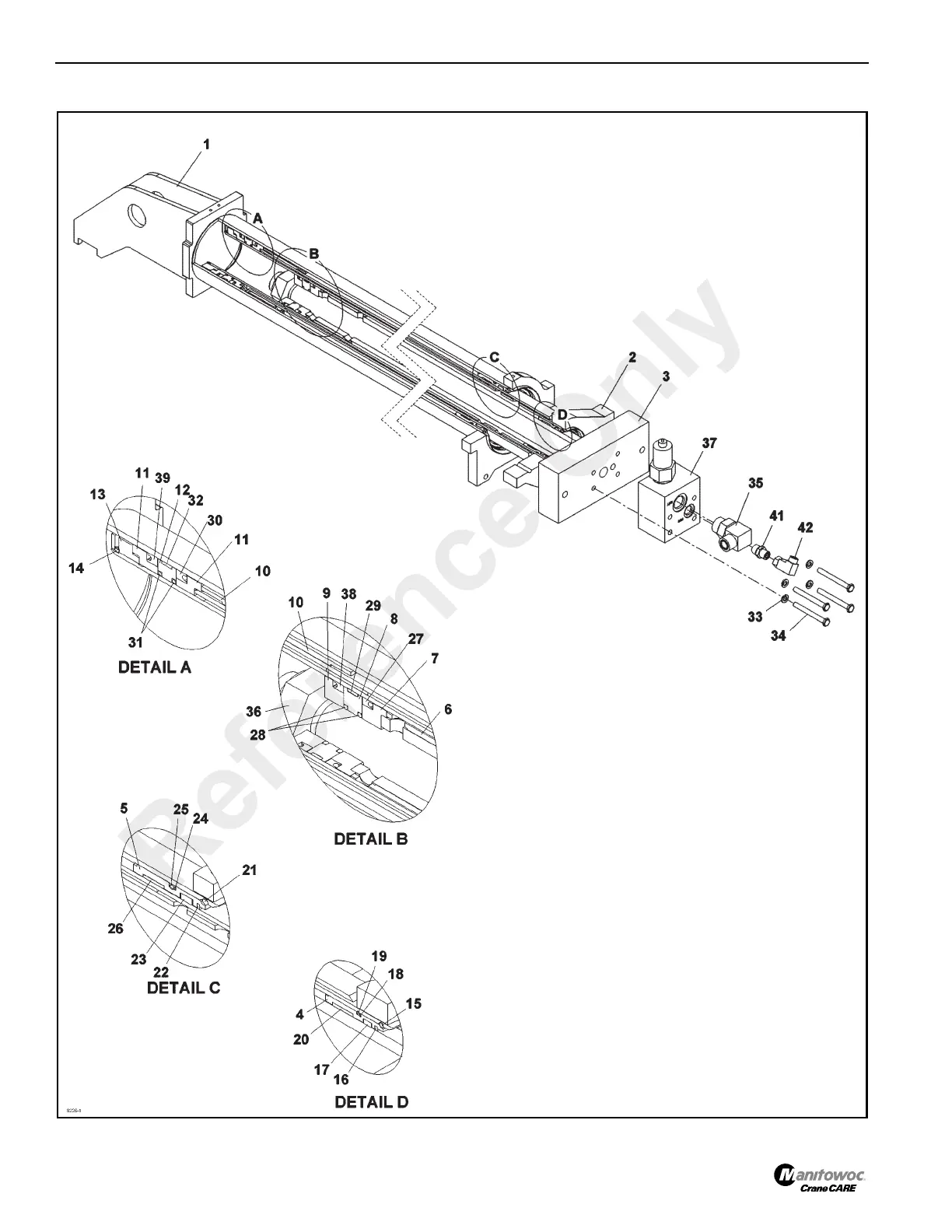

FIGURE 11-2
1. Barrel Cylinder
2. Cylinder Shaft
3. Inner Shaft Assembly
4. Packing Gland
5. Packing Gland
6. Stop Tube
7. Mandrel
8. Piston
9. Mandrel
10. Stop Tube
11. Mandrel
12. Piston
13. Round Nut
14. Screw
15. Retaining Ring
16. Rod Wiper
17. Rod Seal
18. Back-up Ring
19. O-ring
20. Wear Ring
21. Retaining Ring
22. Rod Wiper
23. Rod Seal
24. Back-up Ring
25. O-ring
26. Wear Ring
27. Piston Seal
28. O-ring
29. Wear Ring
30. Piston Seal
31. O-ring
32. Wear Ring
33. Lock Washer
34. Capscrew
35. 90 Degree Elbow Fitting
36. Lock Nut
37. Holding Valve Assembly
38. Piston Seal
39. Piston Seal
40. Not used
41. Straight Adapter Fitting
42. 90 Degree Elbow Fitting
Reference Only
