STRUCTURALS CD5515-2/YB5515-2 SERVICE MANUAL
11-30 Published 1-20-2017, Control# 483-02

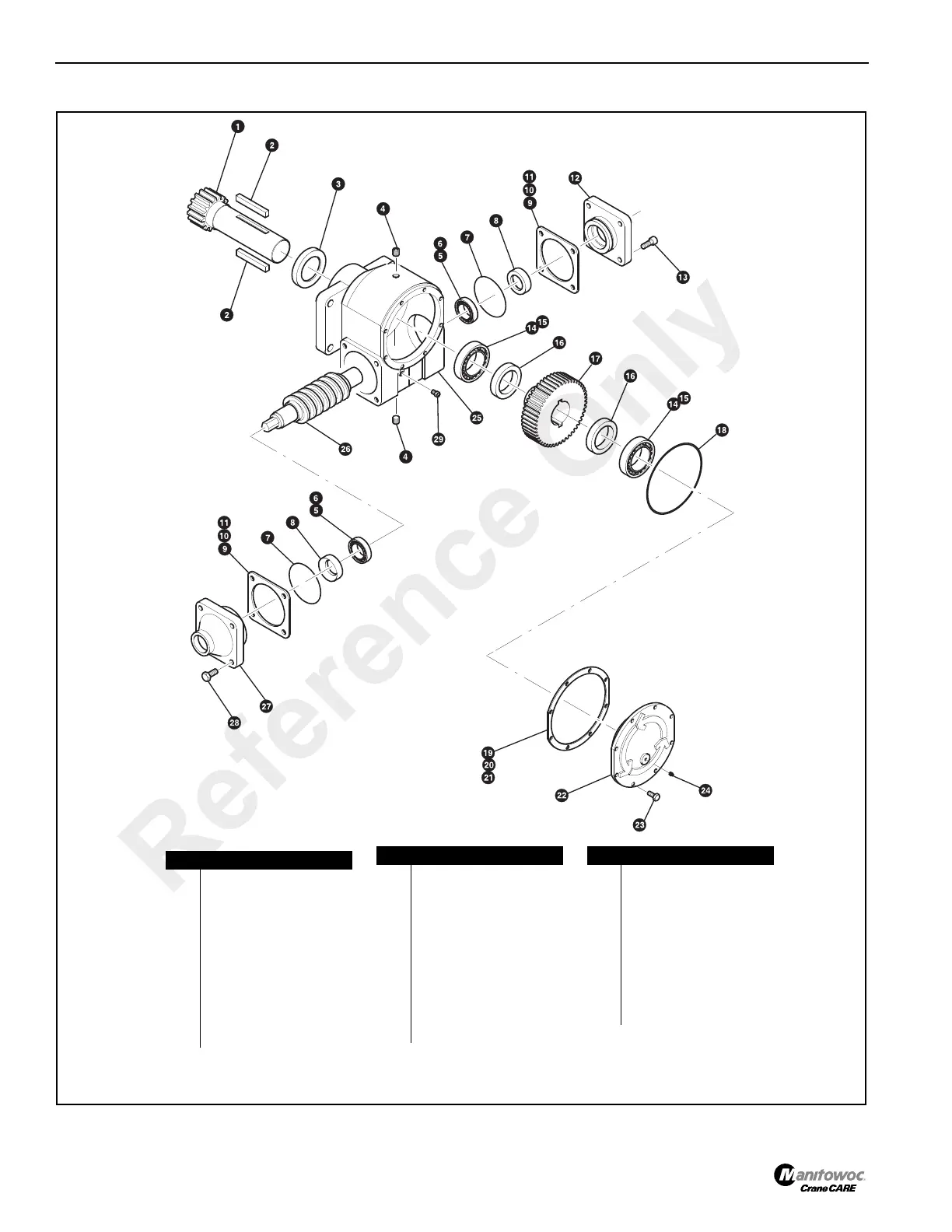

FIGURE 11-24
a0489
Tulsa Swing Gearbox Exploded View
Item Description
1 Pinion Shaft
2Key (2)
3 Oil Seal
4 Pipe Plug (2)
5 Bearing Cup (2)
6 Bearing Cone (2)
7 O-Ring (2)
8Seal (2)
9Shim (2)
10 Shim (2)
11 Shim (2)
12 End Motor Cap
13 Socket Head Capscrew
14 Bearing Cup (2)
15 Bearing Cone (2)
16 Spacer (2)
17 Worm Gear
18 O-Ring
19 Shim
20 Shim
Item Description
21 Shim
22 Cover
23 Capscrew (8)
24 Grease Fitting
25 Housing
26 Worm
27 End Cap
28 Capscrew (4)
29 Breather
Item Description
Reference Only
