Grove Published 1-20-2017, Control# 483-02 11-33
CD5515-2/YB5515-2 SERVICE MANUAL STRUCTURALS
11

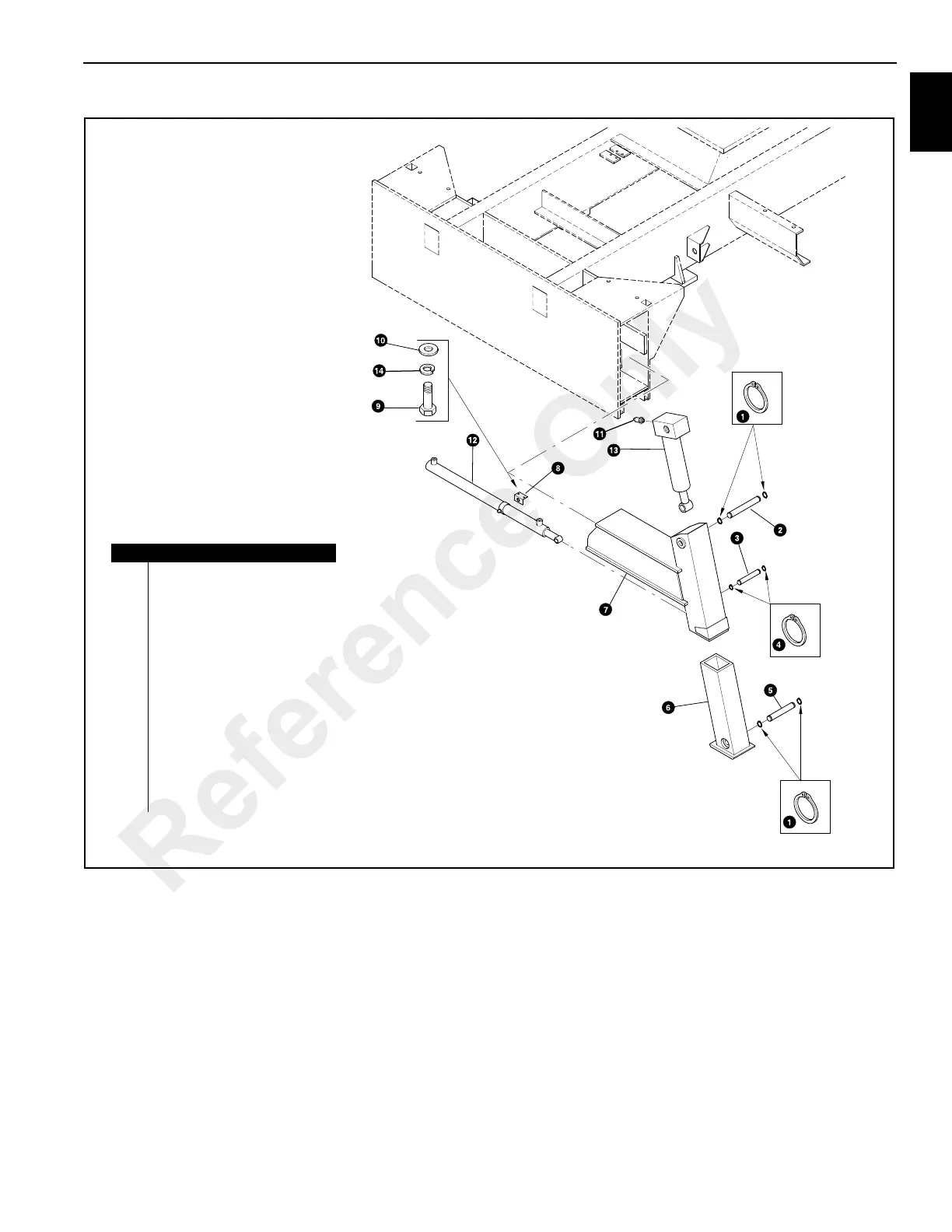

FIGURE 11-26
a0491
Outrigger Assembly
Item Description
1 Retaining Ring (4)
2 Mounting Pin
3 Mounting Pin
4 Retaining Ring (2)
5 Mounting Pin
6 Jack Outrigger
7 Outrigger Beam
8 Cylinder Mounting Bracket (2)
9Hex Bolt (4)
10 Flat Washer (4)
11 Counterbalance Valve
12 Horizontal Cylinder
13 Vertical Cylinder
14 Lockwasher (8)
Reference Only
