CD5515-2/YB5515-2 SERVICE MANUAL ELECTRIC SYSTEM
3

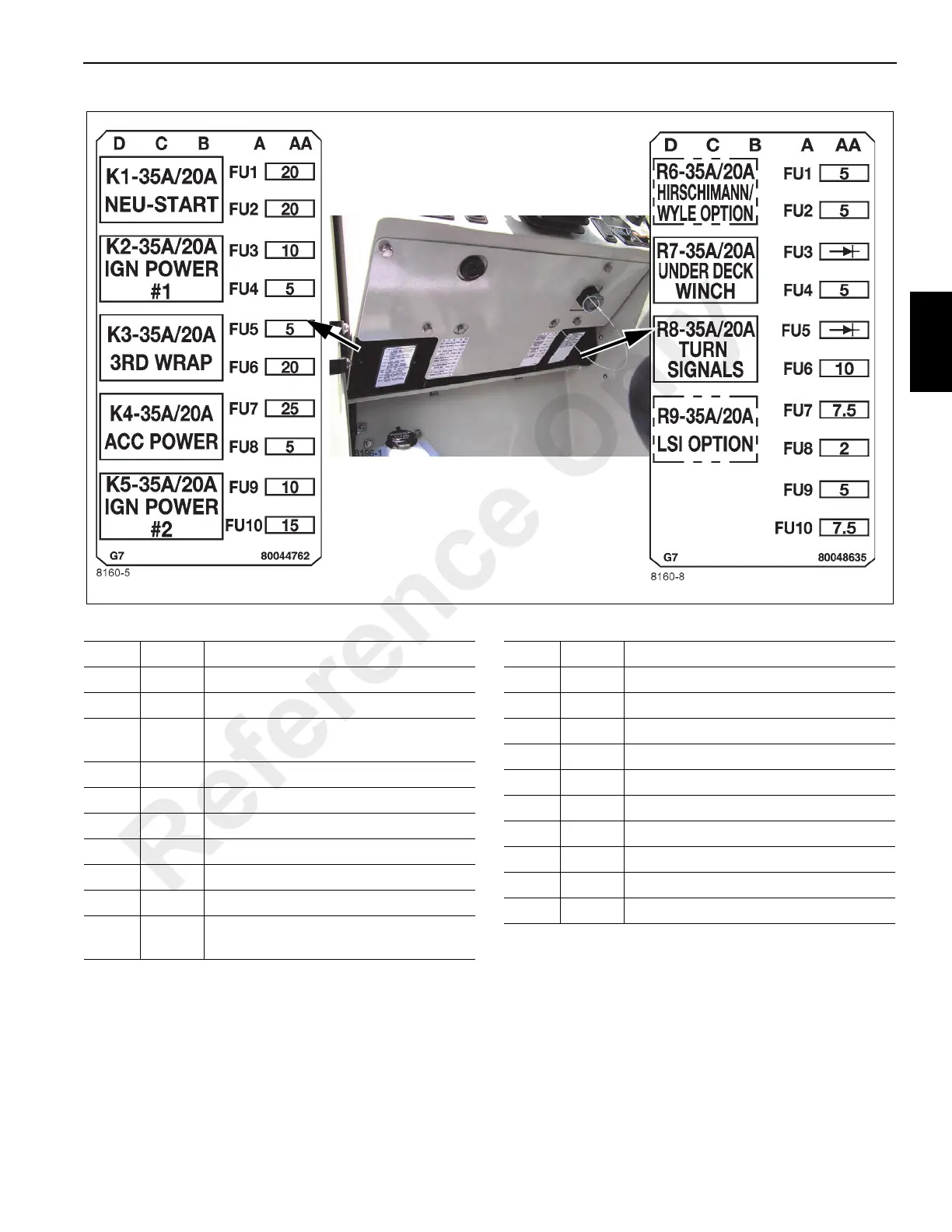

Fuse Box #1 Circuit Identification Fuse Box #2 Circuit Identification
Fuse Block Location &
Relay Identification
FIGURE 3-1
Fuse Amps Circuit
FU1 20 Defroster, Heater, Dome/Strobe Lts.
FU2 20 Wipers, Washer, Swing Lock
FU3 10
Shifter, TCU, Trans Oil Cooler, Back
Up Alarm
FU4 5 Outrigger Monitoring
FU5 5 Park Brake, Brake Light Switch
FU6 20 Outriggers, Winch
FU7 25 RCL, DRI, Crane Functions
FU8 5 Gauge Cluster, Switch LEDs
FU9 10 Steering Select
FU10 15
Head & Tail Lts., Worklights, Turn
Signals/4 Way Flashers
Fuse Amps Circuit
FU1 5 Hoist Down Solenoid
FU2 5 1195, ECM Power, E-Stop
FU3 Diode Buzzer
FU4 5 Diagnostic Connector
FU5 Diode RCL Override
FU6 10 Spare
FU7 7.5 RCL Power
FU8 2 RCL Power
FU9 5 Ignition
FU10 7.5 ACC
