Manitowoc Shuttlelift CD5515-2 Service And Maintenance Manual

GROVE Published 1-20-2017, Control# 483-02 4-35
CD5515-2/YB5515-2 SERVICE MANUAL HYDRAULIC SYSTEM
4

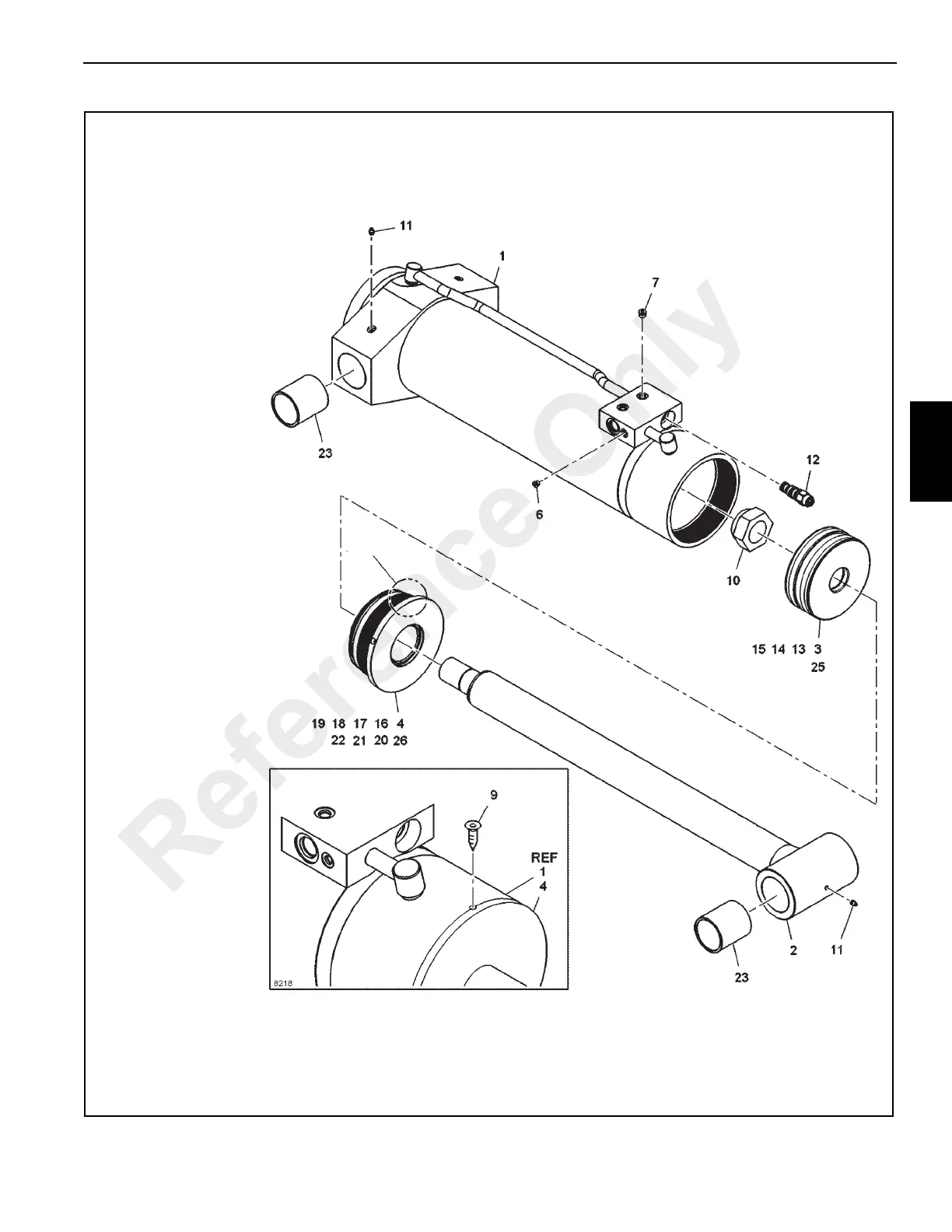

FIGURE 4-26
1. Barrel Assembly
2. Rod Assembly
3. Piston Assembly
includes item 25
4. Head Assembly
includes item 26
5. Not Used
6. O-Ring Plug
7. Metal Plug (2)
8. Not Used
9. Screw
10. Locknut
11. Grease Fitting
12. Counterbalance Valve
13. Piston Seal*
14. Wear Ring (2)*
15. O-Ring*
16. Rod Seal**
17. Buffer Seal**
18. Wear Ring (2)**
19. Wiper Ring**
20. O-Ring**
21. Backup Ring**
22. O-Ring**
23. Bushing (4)
24. Not used
25. Seal Kit, Piston
26. Seal Kit, Head
* = Repair Kit
Lift Cylinder Sheet 1
See Detail
See Sheet 2
See Sheet 2
Detail
Reference Only
