Connect
The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.
For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 48.

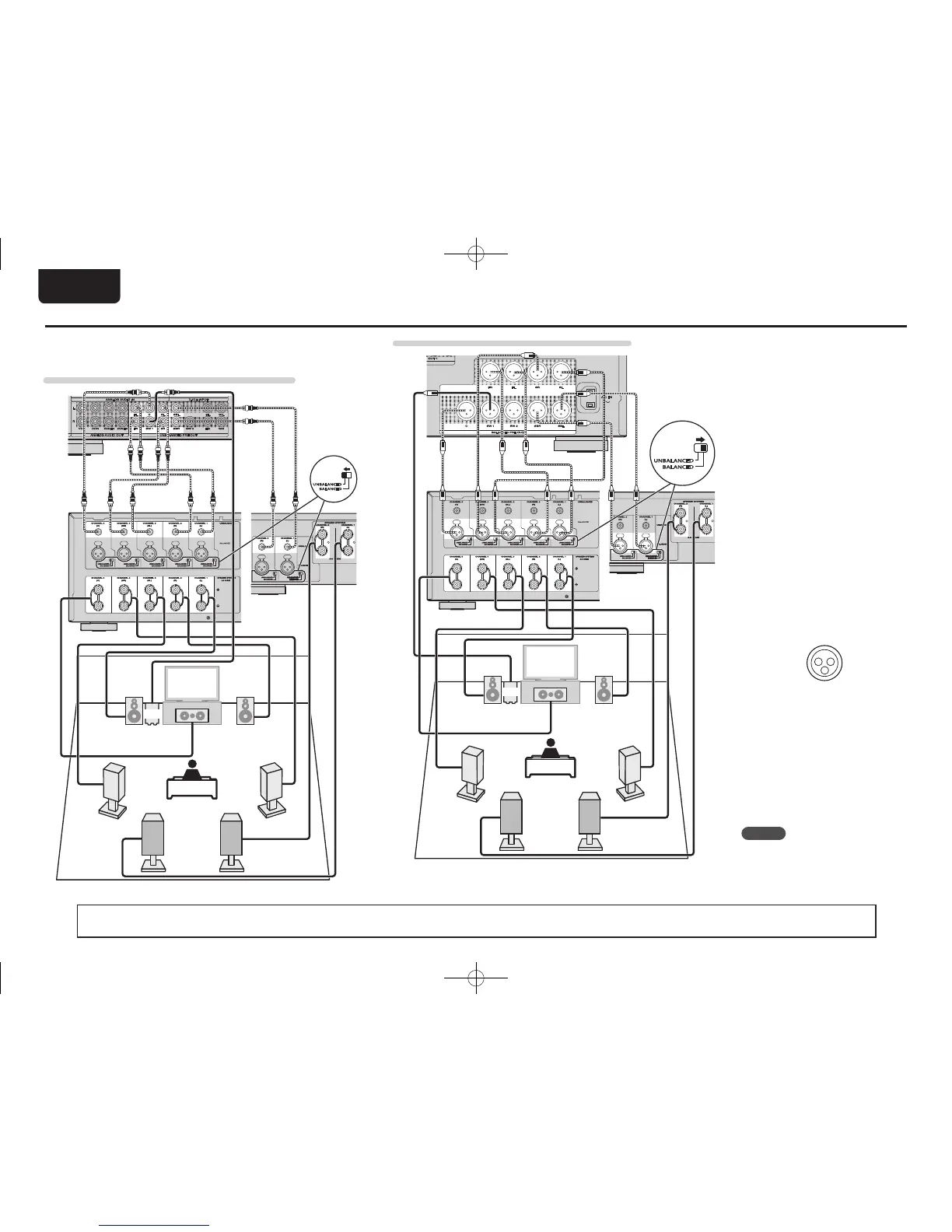

n Example of connections to Marantz MM7055 and MM7025
power amp
Connecting the unbalanced PRE OUT terminal
SBL SBR
FL FR
C
SL
SR
SW
Speaker cables
(sold separately)
Audio cable
(sold separately)
Subwoofer with
built-in amplifier
GMM7055H
GMM7025H
Connecting the balanced PRE OUT terminal
SBL SBR
FL FR
C
SL
SR
SW
Speaker cables
(sold separately)
Audio cable
(sold separately)
Subwoofer with
built-in amplifier
GMM7055H
GMM7025H
GAV7005 XLR connector PIN
arrangementH
1
2
3
q GND (Ground)
w HOT (Hot)
e COLD (Cold)
The PIN arrangement in this device uses
the European method.
In the USA method,
w is COLD, and e
is HOT.
When connecting a device that utilizes
the USA type of PIN arrangement, replace
the w and e plugs on one side of the
balanced cable.
NOTE
Do not short the HOT and GND or COLD
and GND for use.
1.AV7005U_ENG.indd 6 2010/08/23 18:32:03

Marantz AV7005 Specifications

General

Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS-ES
Amplifier class	-
Frequency range	20 - 20000 Hz
Audio output channels	7.1 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	- %
AC (power) in	Yes
Audio (L/R) in	7
Audio (L/R) out	6
USB 2.0 ports quantity	1
Digital audio optical in	3
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Volume control	Rotary
Cables included	AC
Connectivity technology	Wired
Power consumption (standby)	0.2 W
Power consumption (typical)	750 W
THX-certified	No

Weight and Dimensions

Depth	406400 mm
Width	440 mm
Height	184.5 mm
Weight	13000 g
