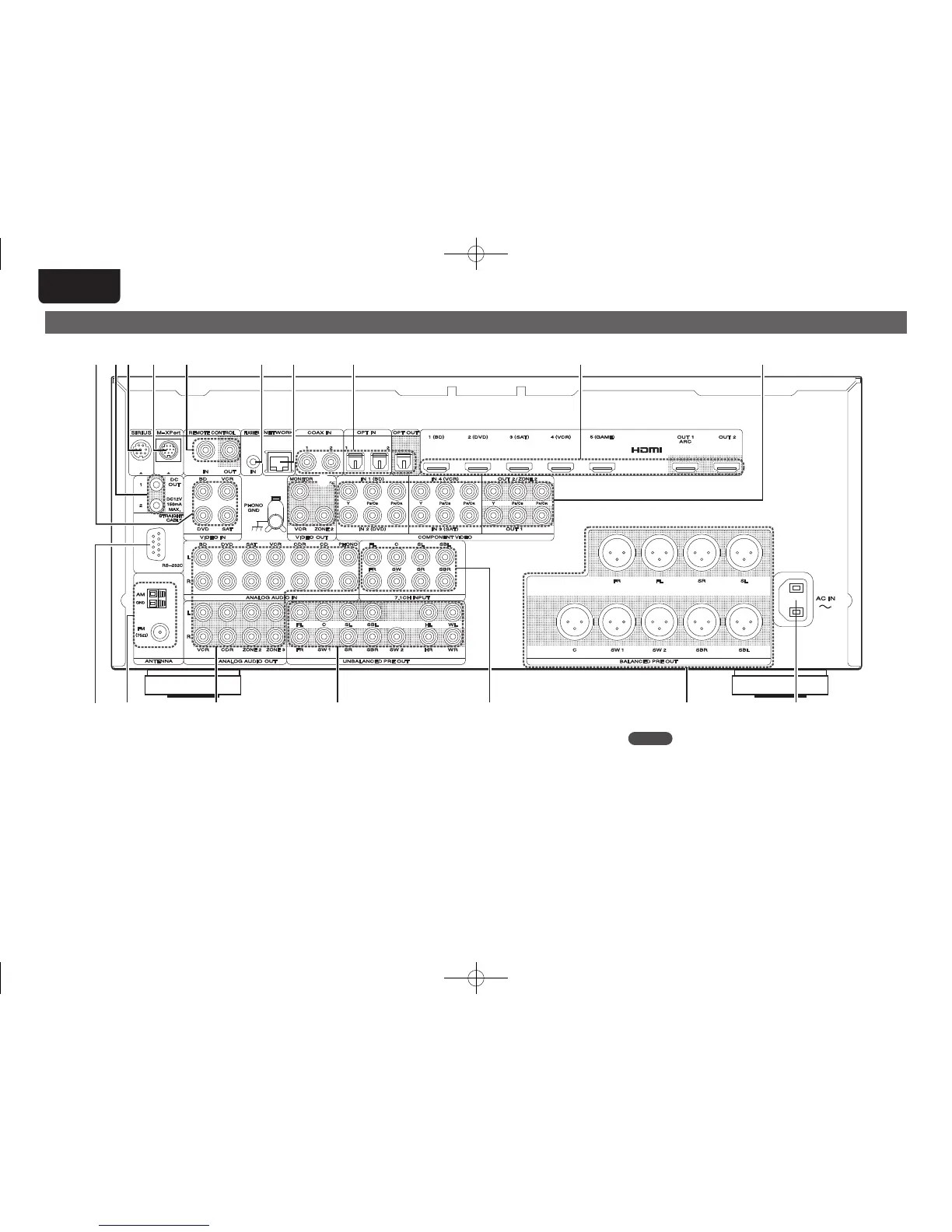

Rear panel
See the page indicated in parentheses ( ).
Q8
q w uyr te
Q6 Q4
Q7
i
Q5
Q3
Q2 Q1 Q0 o
Q7
q RS-232C connector ·································································· (54)
w HD Radio antenna terminals ·················································· (22)
e Analog audio connectors ···········································(17 – 21, 23)
r UNBALANCED PRE OUT terminals ········································· (6)
t 7.1CH INPUT connectors ························································ (23)
y BALANCED PRE OUT terminals ··············································· (6)
u AC inlet (AC IN) ·········································································· (7)
i COMPONENT VIDEO connectors ····································(17 – 19)
o HDMI connectors ····································································· (16)
Q0 Digital audio connectors ··················································(17 – 21)
Q1 NETWORK connector ······························································ (24)
Q2 FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q3 REMOTE CONTROL jacks ······················································· (53)
Q4 M-XPort jack ············································································ (23)
Q5 SIRIUS connector ···································································· (22)
Q6 DC OUT jacks ··········································································· (54)
Q7 VIDEO connectors ····························································(17 – 19)
Q8 SIGNAL GND terminal ···························································· (21)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
