Information

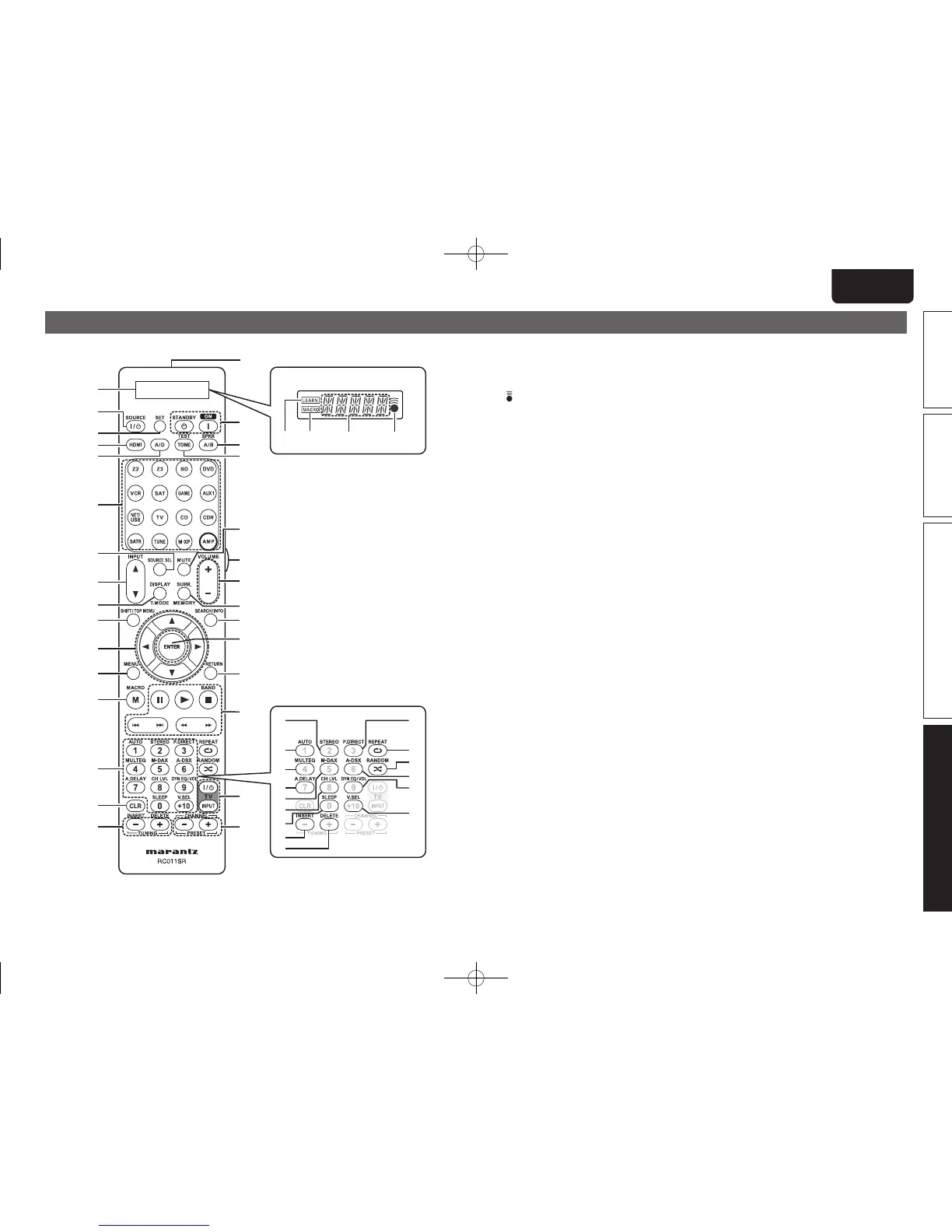

Remote control unit
For buttons not explained here, see the page indicated in parentheses ( ).
e
r
y
t
w
q
i
Q0
o
u
Q1
Q2
Q3
Q4
Q5
Q6
Q8
Q9
W3
W2
W5
W7
W6
W8
R4
R5
W0
W1
W4
Q7
E9
E8W9
E0
E1
E2
E3
E4
E5
E6
E7
R0
R1
R2
R3
q
w
e r
q Display
q LEARN indicator ·······································(93)
w MACRO indicator ······································ (95)
e Information display
r indicator ················································· (91)
w SOURCE power button ·················· (62, 92, 93)
e SET button ······································ (91, 93, 95)
r HDMI button ········································· (16, 94)
t Input mode button (A/D) ··························· (71)
y Input source select buttons ······················· (25)
u Source select button (SOURCE SEL) ········ (25)
i INPUT buttons (d, f) ····················· (25, 62, 91)
o DISPLAY/
Tuner mode (T.MODE) button ············ (32, 86)
Q0 SHIFT/TOP MENU button ·············· (33, 36, 65)
Q1 Cursor buttons (uio p) ·················· (64 – 66)
Q2 MENU button ·············································· (66)
Q3 MACRO button ··········································· (95)
Q4 Number buttons ······················· (33, 36, 91, 95)
Q5 Clear button (CLR) ······································ (96)
Q6 TUNING buttons (+, –) ·······························(32)
Q7 Remote control signal transmitter
Q8 Power buttons (ON, STANDBY) ············ (7, 12)
Q9 Speaker A/B button (SPKR A/B) ··············· (26)
W0 TEST TONE button ····································· (79)
W1 Muting button (MUTE) ······························ (26)
W2 Light button ················································ (96)
W3 Master volume control buttons
(VOLUME +, –)· ··········································· (26)
W4 Surround mode (SURR.) /
MEMORY button ···························· (33, 36, 44)
W5 SEARCH/
Information (INFO) button ······· (27, 31, 33, 66)
W6 ENTER button ····································· (64 – 66)
W7 RETURN button ·································· (64 – 66)
W8 System buttons
························· (28, 29, 36 – 38, 40, 42, 43, 92)
• Pause button (3)
• Play button (1)
• Stop button (2)
• Skip buttons (8, 9)
• Search buttons (6, 7)
FM/AM band switching button (BAND) ··· (34)
W9 STEREO button ··········································· (46)
E0 AUTO buttons ······························· (44, 60, 115)
E1 MULTEQ
®
button ······································· (74)
E2 Audio delay button (A.DELAY) ·················· (76)
E3 M-DAX button ············································ (76)
E4 Channel level button (CH LVL) ·················· (56)
E5 SLEEP button ·············································· (56)
E6 INSERT button ············································ (65)
E7 DELETE button ··········································· (65)
E8 Pure direct button (P.DIRECT) ··················· (46)
E9 REPEAT button ····································· (28, 29)
R0 RANDOM button ·································· (28, 29)
R1 Audyssey DSX button (A-DSX) ················· (75)
R2 Dynamic EQ
®
/Dynamic Volume
®
button
(DYN EQ/VOL) ······································ (74, 75)
R3 Video select button (V.SEL) ······················ (69)
R4 TV operation buttons
(TV POWER / INPUT) ··························· (92, 93)
R5 CHANNEL/
PRESET buttons (+, –) ·············· (33, 36, 92, 93)
