2. MAIN PWB
(1) Remove the screws.
(2) Remove the screws. Disconnect the connectors wire and FFC Cable.
Proceeding :
MAIN PWB
→
TOP COVER

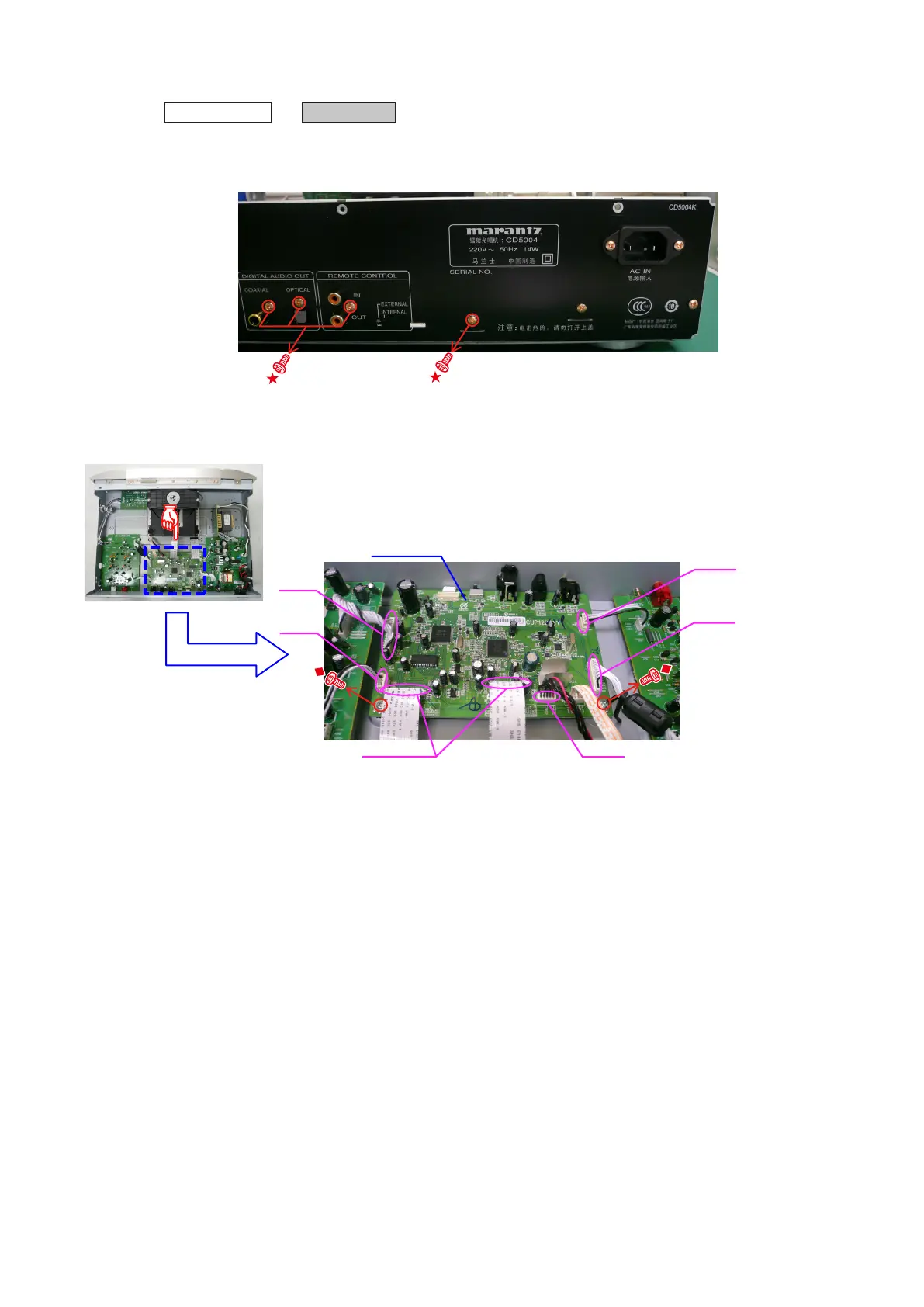

Direction of photograph: A
MAIN PWB
CN44
CN45
FFC Cable
CN43
CN42
CN31
Direction of photograph: B
