Marantz CD5004 - Mecha Assy

13
5. MECHA ASSY

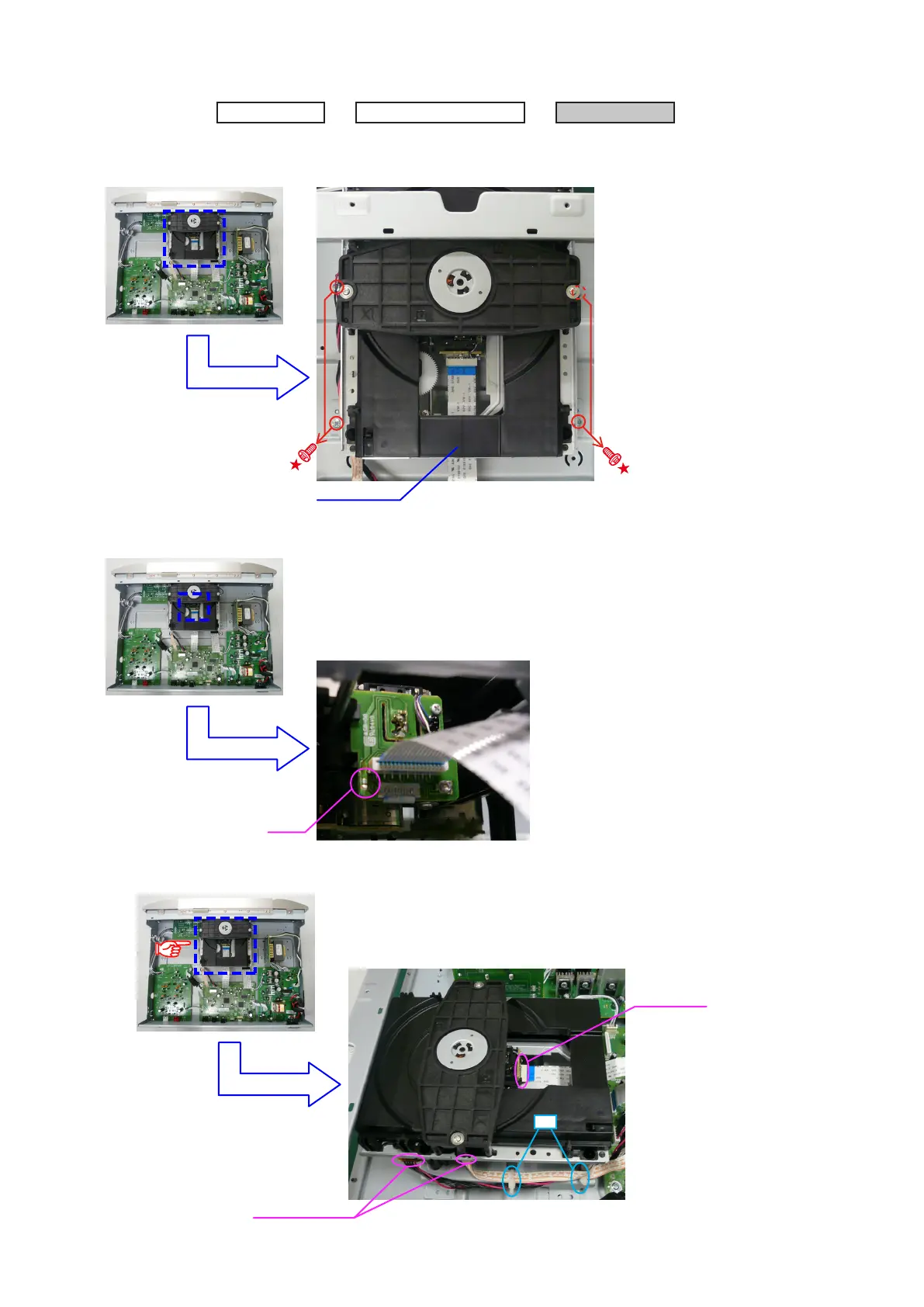

(1) Remove the screws.
(2) Solder the short-circuit before disconnect the FFC Cable.
(3) Disconnect the connectors wire and FFC Cable. Cut the wire clamp bands.
Proceeding :
FRONT PANEL ASSY
→
TOP COVER MECHA ASSY
→
MECHA ASSY
Short
Direction of photograph: C
Connector wire
cut
FFC Cable
