Marantz CD5004 Service Manual

9

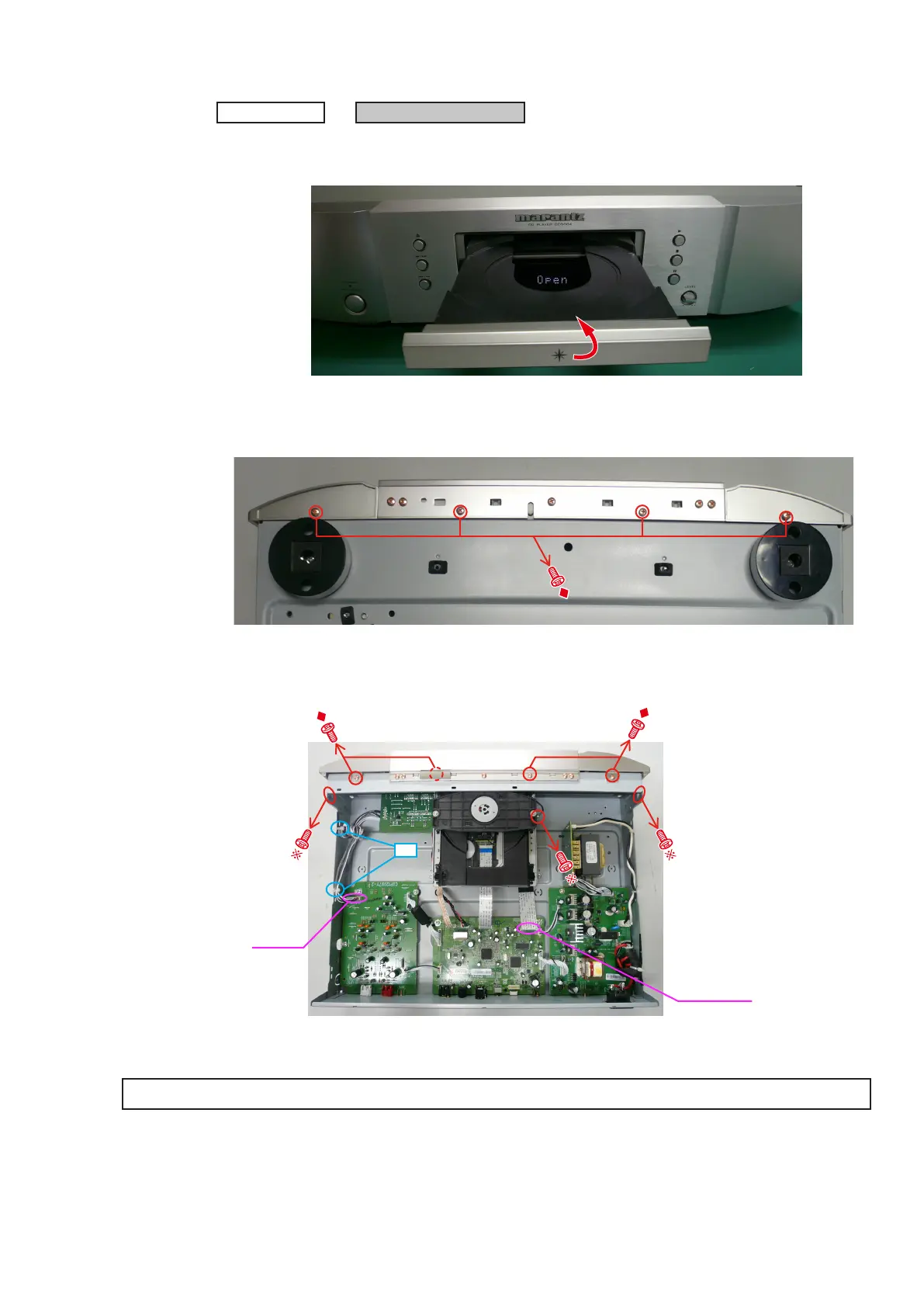

1. FRONT PANEL ASSY
(1) Remove the Loadr Panel.
(2) Remove the screws.
(3) Disconnect the connector wire and FFC Cable. Remove the screws. Cut the wire clamp bands.
FRONT PANEL ASSY
→
TOP COVER
Proceeding :
Direction of photograph: B
View from bottom
CN81
FFC Cable
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.

Marantz CD5004 Specifications

General

DAC	CS4392
Frequency Response	2 Hz - 20 kHz
Signal to Noise Ratio	110 dB
Dynamic Range	100 dB
Total Harmonic Distortion	0.002%
Channel Separation	100 dB
Digital Output	Coaxial, Optical
Headphone Output	Yes
Power Consumption	14 W
Disc Formats	CD, CD-R/RW
Audio Outputs	Analog (RCA)
Dimensions	440 x 340 x 105 mm
Output Level	2.0 Vrms
