11
3. POWER PWB

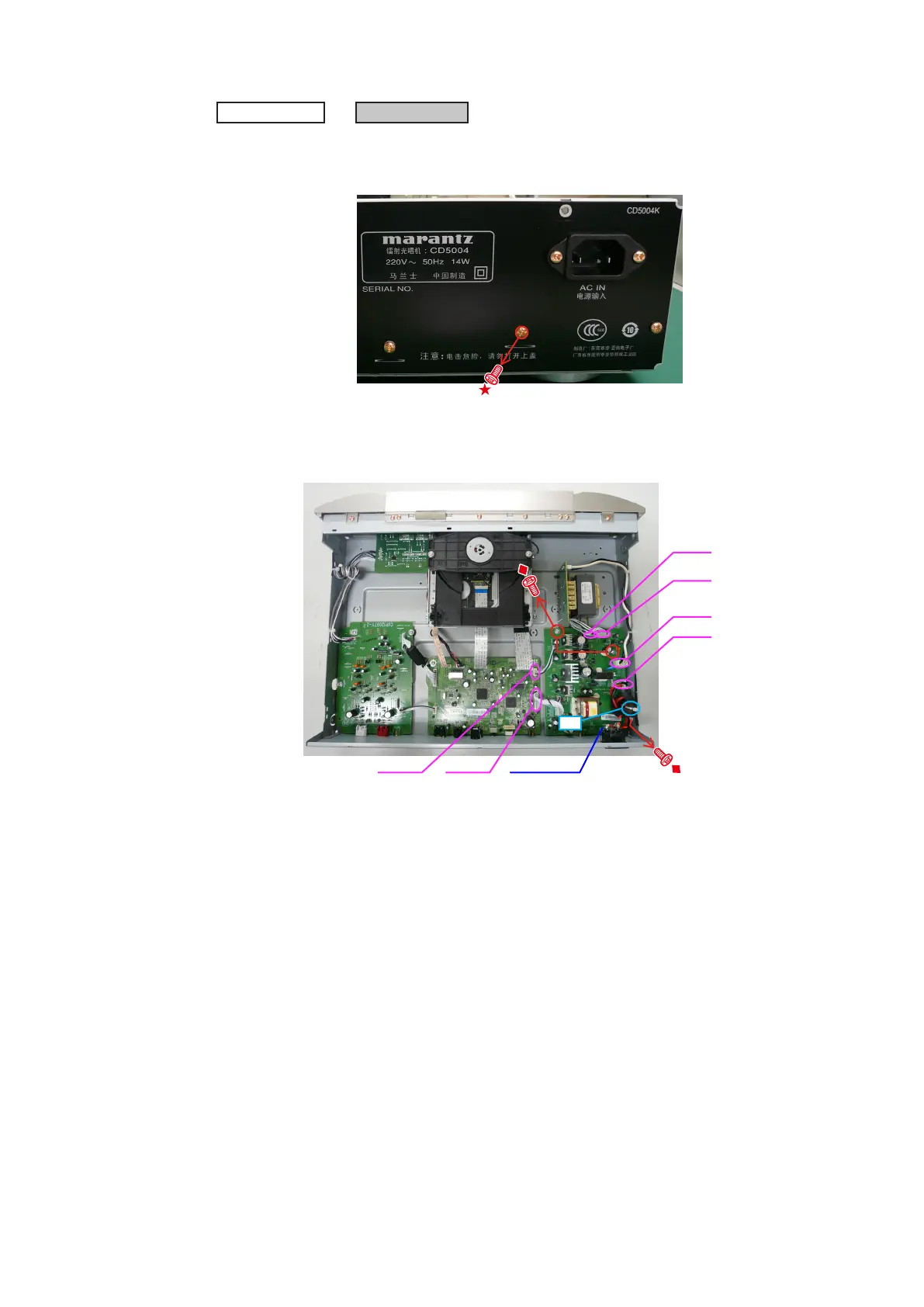

(1) Remove the screws.
(2) Remove the screws. Disconnect the connector wires. Cut the wire clamp band.
Proceeding :
POWER PWB
→
TOP COVER
Direction of photograph: A
MAIN PWB
CN45
CN92
CN44
cut
CN93
CN94
CN91
