Marantz CD5004 Service Manual

8
About the photos used for descriptions in the DISASSEMBLY" section.
• The direction from which the photographs used herein were photographed is indicated at "Direction of photograph:
***" at the left of the respective photographs.
• Refer to the table below for a description of the direction in which the photos were taken.
• Photographs for which no direction is indicated were taken from above the product.
• The photograph is CD5004 K1SG.

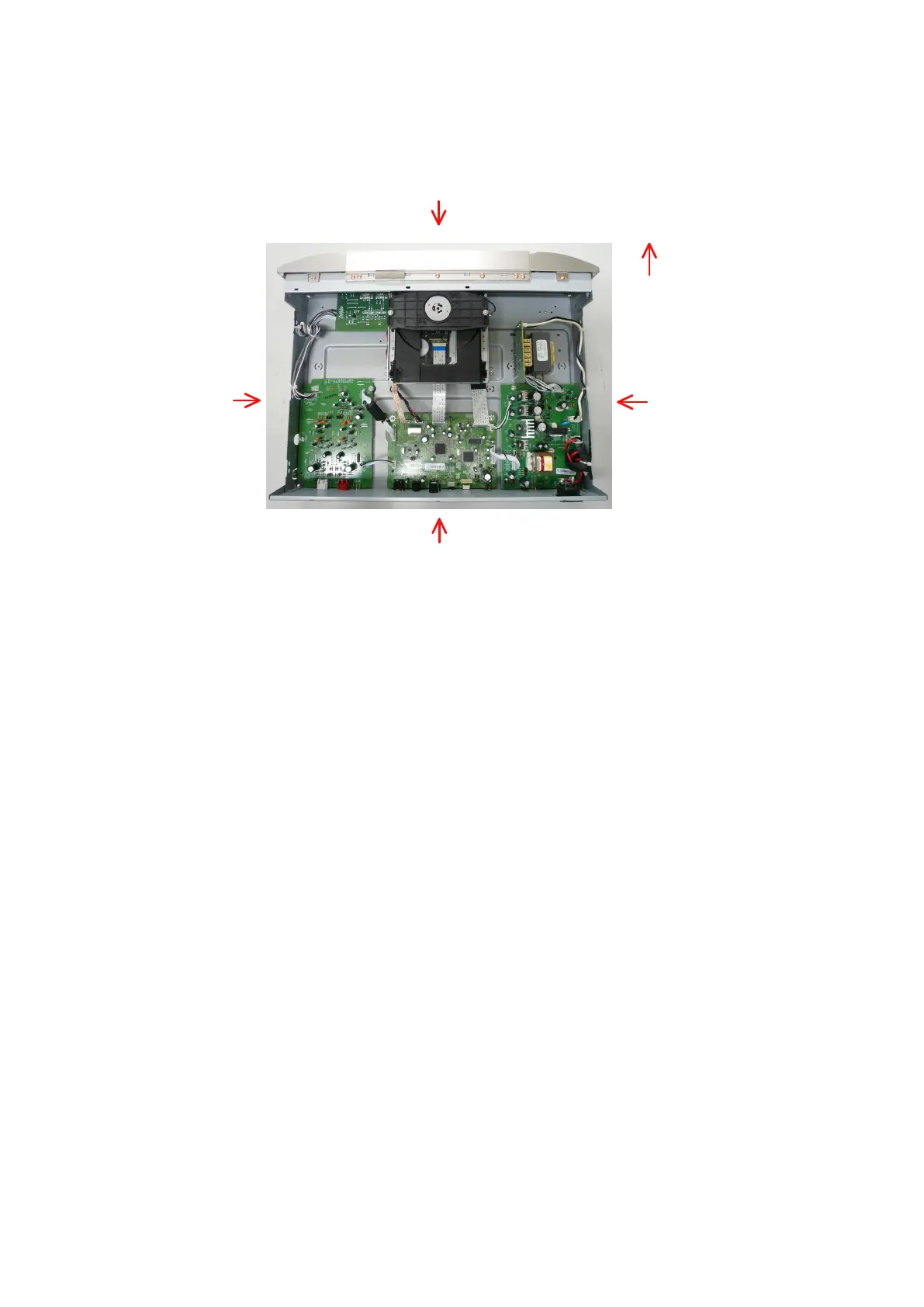

The viewpoint of each photograph
(Photografy direction)
［View from above］
Front side
Direction of photograph: B
Direction of photograph: D
Direction of photograph: C
Direction of photograph: A

Marantz CD5004 Specifications

General

DAC	CS4392
Frequency Response	2 Hz - 20 kHz
Signal to Noise Ratio	110 dB
Dynamic Range	100 dB
Total Harmonic Distortion	0.002%
Channel Separation	100 dB
Digital Output	Coaxial, Optical
Headphone Output	Yes
Power Consumption	14 W
Disc Formats	CD, CD-R/RW
Audio Outputs	Analog (RCA)
Dimensions	440 x 340 x 105 mm
Output Level	2.0 Vrms
