(11) Disconnect the mains cord from the unit.

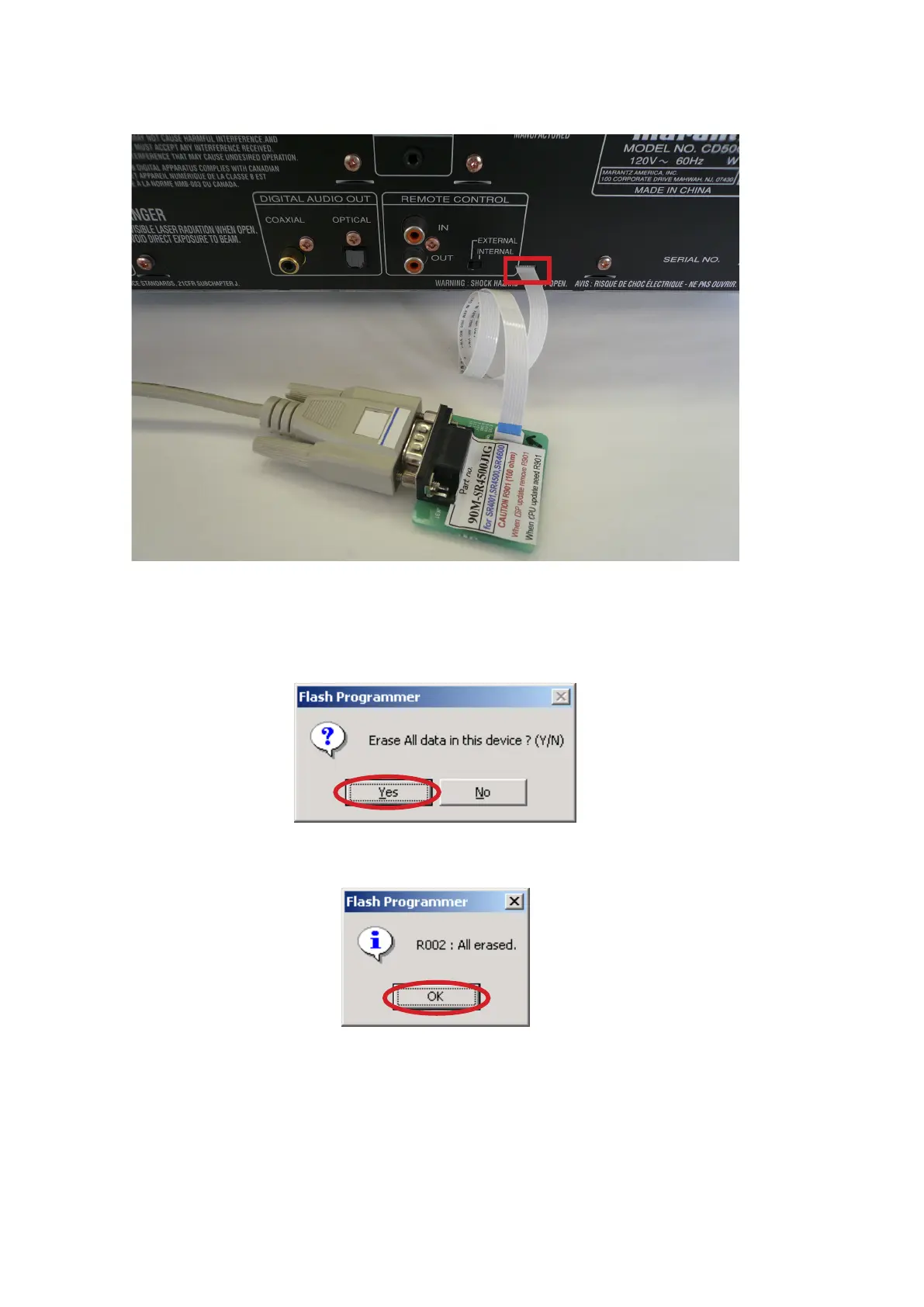

(12) Connect the RS-232C on the connection JIG and the Serial Port of windows PC with RS-232C cable.
(13) Connect FFC (upside contact) to the rear panel of the unit from connection JIG.
(14) Connect the mains cord into the unit.
(15) If the connection with the Flash Programmer is successfully made, a dialogue box saying "Erase All data in this
devise? (Y/N)" appears automatically. If the connection fails, error message will appear. (Ex.: E000)
Click Yes.
(16) Click OK.
22
