Marantz CD6005 - Front Panel Assembly Disassembly

1. FRONT PANEL ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY

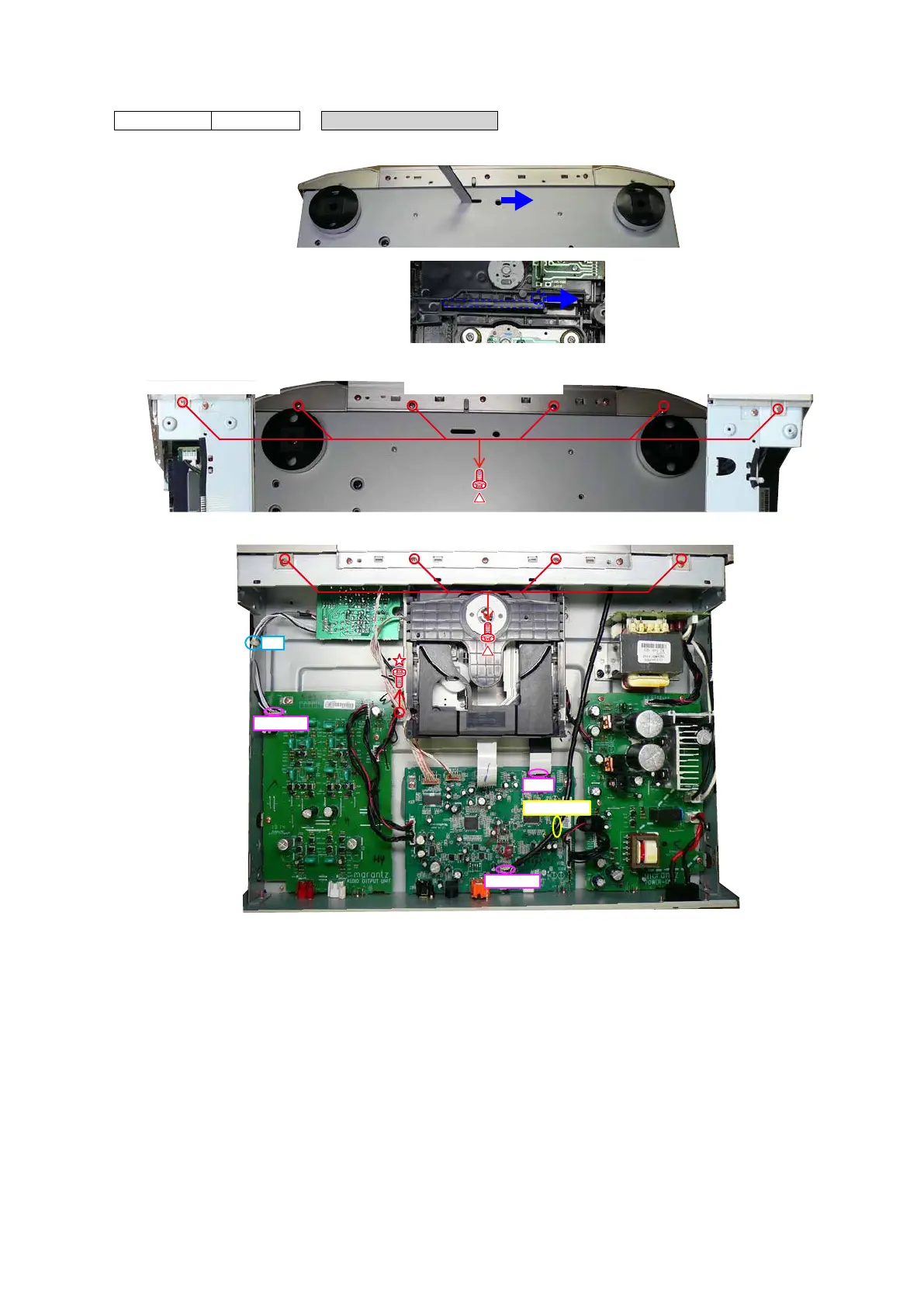

(1) Tray is opened and CD DOOR is removed.
(2) Remove the screws.
(3) Cut the wire clamp band, then remove the style pin and screws. Disconnect the connector wires and FFC cable.
View from the bottom
View from the CD MECHA bottom
View from the bottom Shooting direction: CShooting direction: D
STYLE PIN
cut
CN3301
CN1101
FFC
