Marantz CD6005 - Power Pwb; Audio Output Pwb

3. POWER PWB
Proceeding : TOP COVER
→
POWER PWB

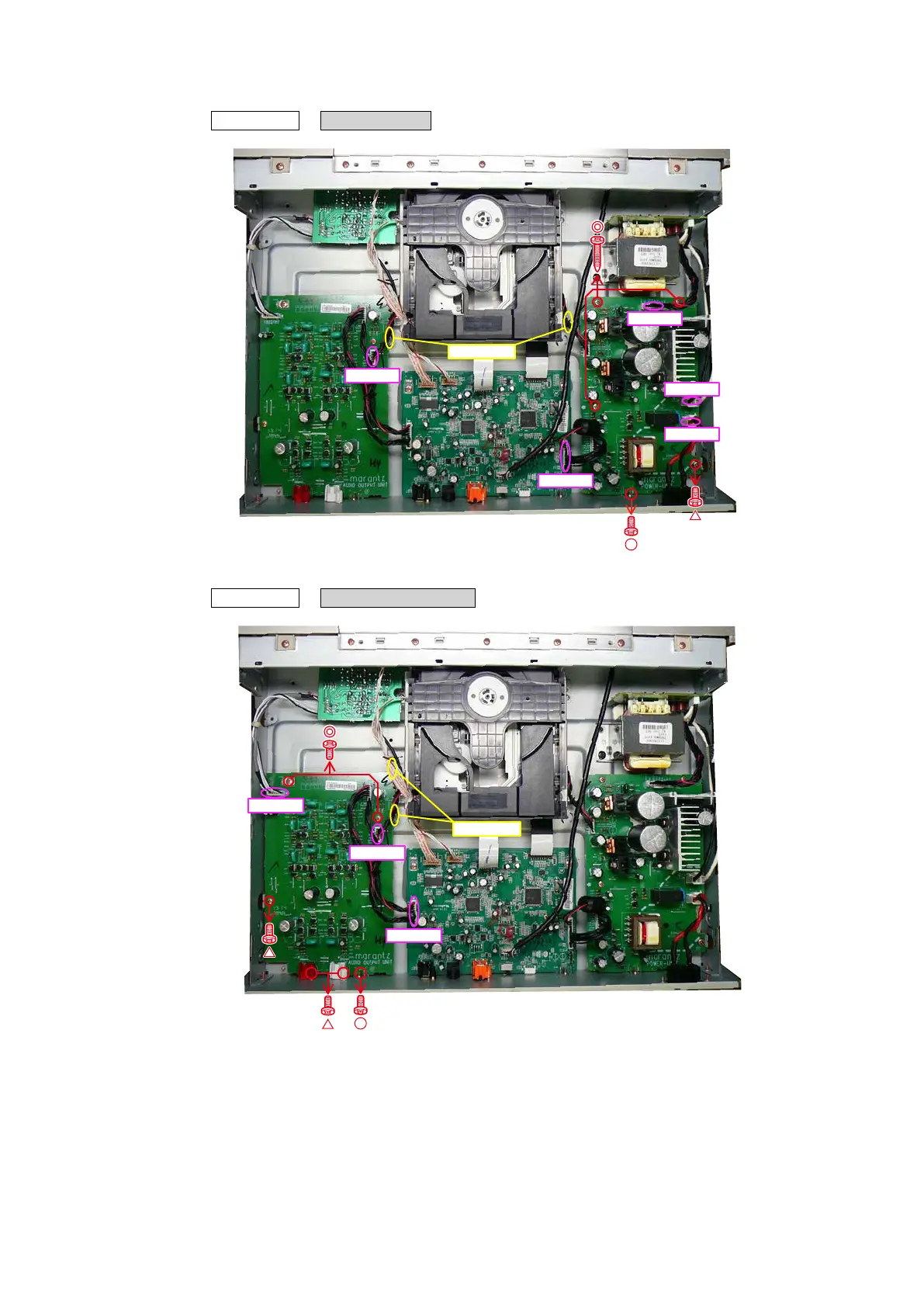

(1) Remove the style pin and screws. Disconnect the connector wires.
4. AUDIO OUTPUT PWB
Proceeding : TOP COVER
→
AUDIO OUTPUT PWB
(1) Remove the style pin and screws. Disconnect the connector wires.
STYLE PIN
CN3504
CN3901
CN3902
CN1101
CN3903
STYLE PIN
CN3504
CN2101
CN3301
