Marantz HD-DAC1 - 3. FRONT PANEL ASSY DISASSEMBLY; Removing Front Panel Components

3. FRONT PANEL ASSY
Proceeding : SIDE PANEL
→
TOP COVER → FRONT PANEL ASSY
(1) Remove the screws.
(2) Cut the wire clampers and remove the connector wires. Remove the screws.

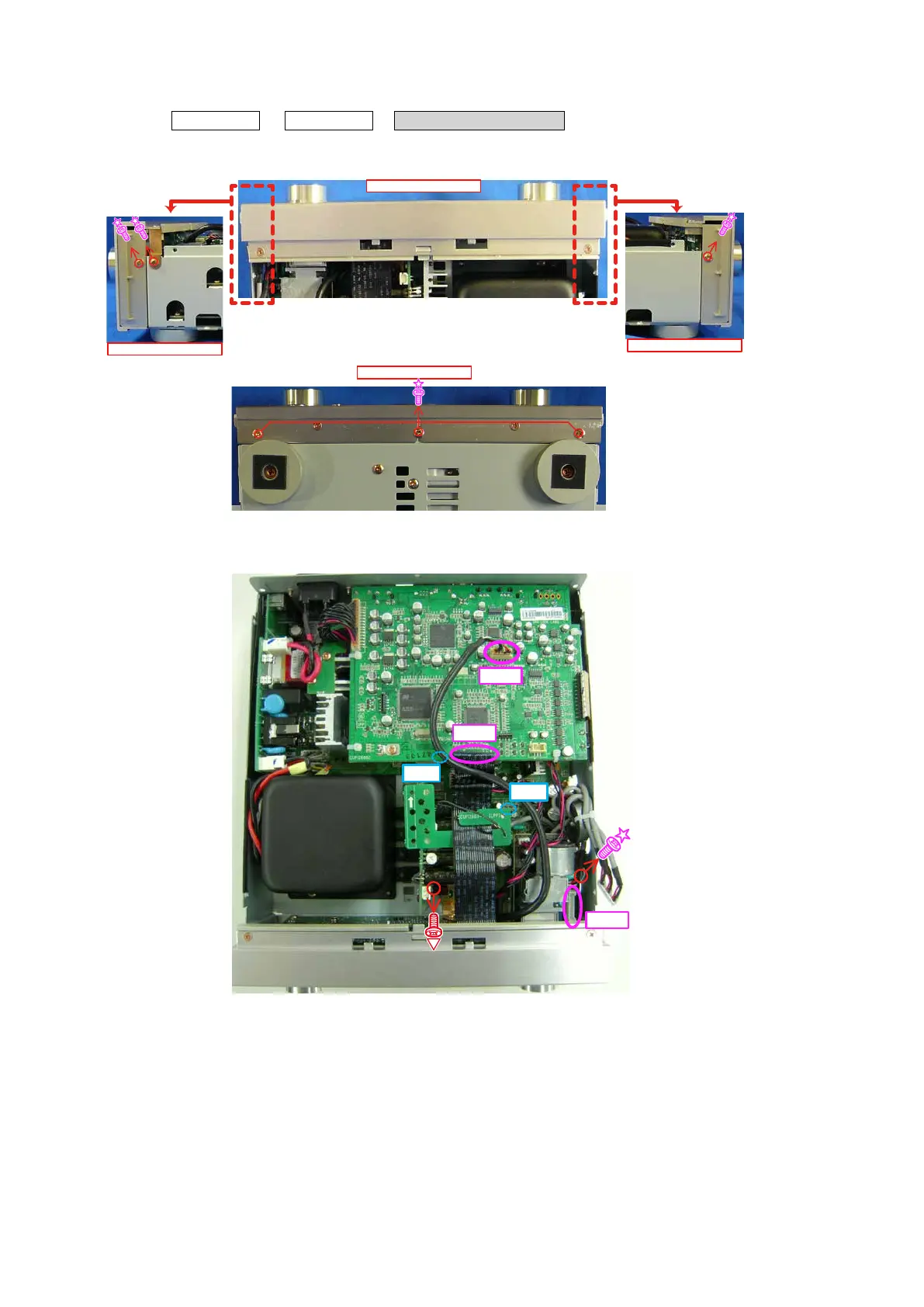

View from the bottom
View from the top
View from the left
View from the right
View from the top
CN81
FFC
CN12
CUT
CUT
