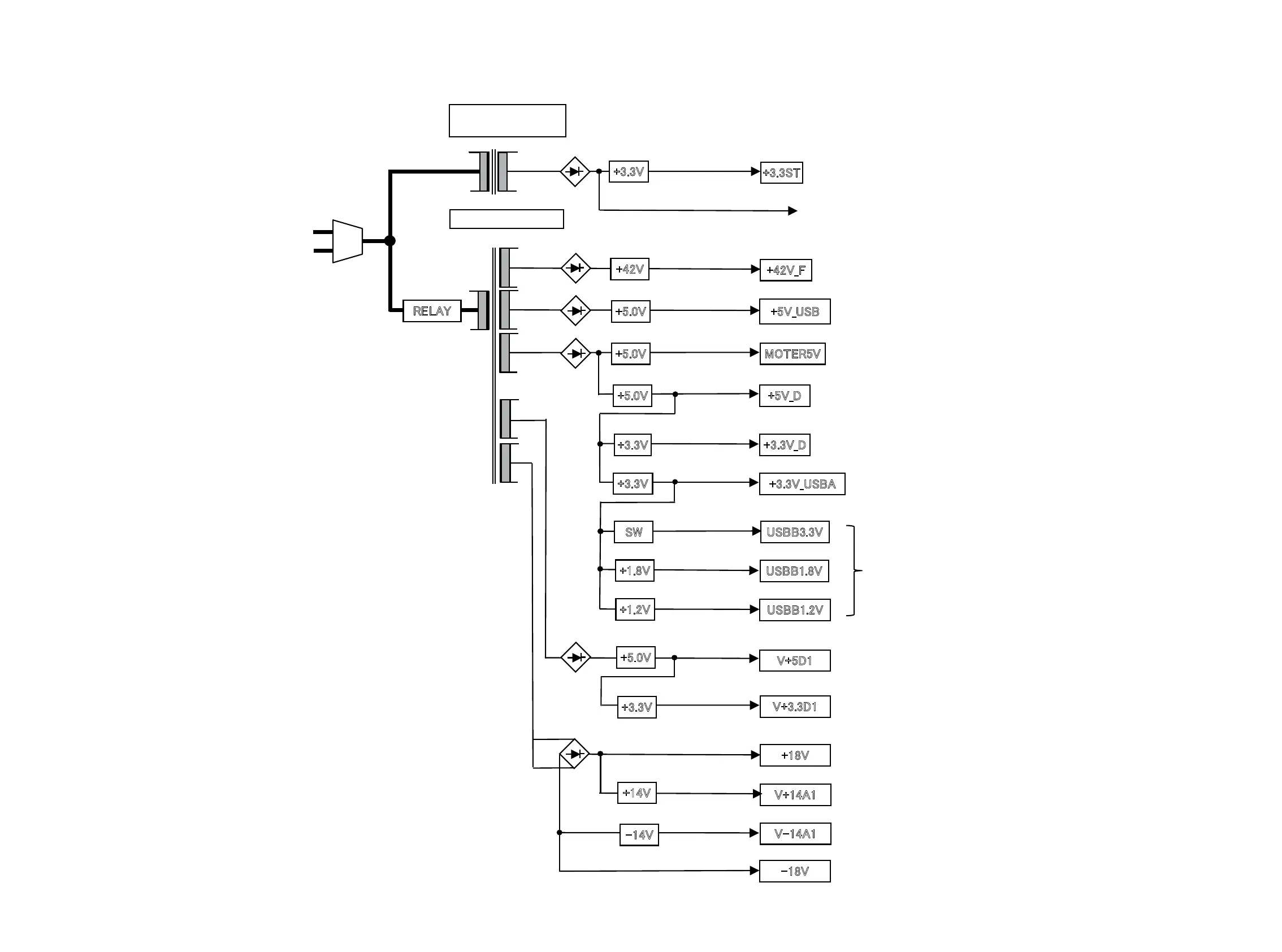

Marantz HD-DAC1 - POWER DIAGRAM

2014/8/5
T901
FLD
T902
IC96
USBB3.3V
+5.0V
Power Relay
Standby
Sub Transformer
+3.3ST
uCOM
Main Transformer
+42V_F
+5V_USB
MOTER5V
+5V_D
USBB1.8V
USBB1.2V
+3.3V_D
IC91
+3.3V
Q905
+42V
IC92
+5.0V
IC93
+5.0V
IC95
+3.3V
IC94
+3.3V
Q104
SW
IC15
+1.8V
IC16
+1.2V
RELAY
V-BUS
MOTER VOLUME
V+5D1
V+3.3D1
+18V
V+14A1
V-14A1
-18V
IC98
+5.0V
IC99
+3.3V
Q955
+14V
Q958
-14V
RC5
ANALOG IN AMP
Timing Generator
DIR, CS2000
USB-A
+3.3V_USBA
USB-B
CS4398
CS4398, VXO
HP AMP
HP AMP
HDAM
HDAM
POWER DIAGRAM
51
