5. SUB TRANS PCB
Proceeding : SIDE PANEL → TOP COVER → SUB TRANS PCB
(1) Remove the connector wires and remove the screws. Pull out the PCB.
(2)Note at the time of assembly. Connect to the connector of WF94 sure.
When the connector is not connected, power will not turn on.

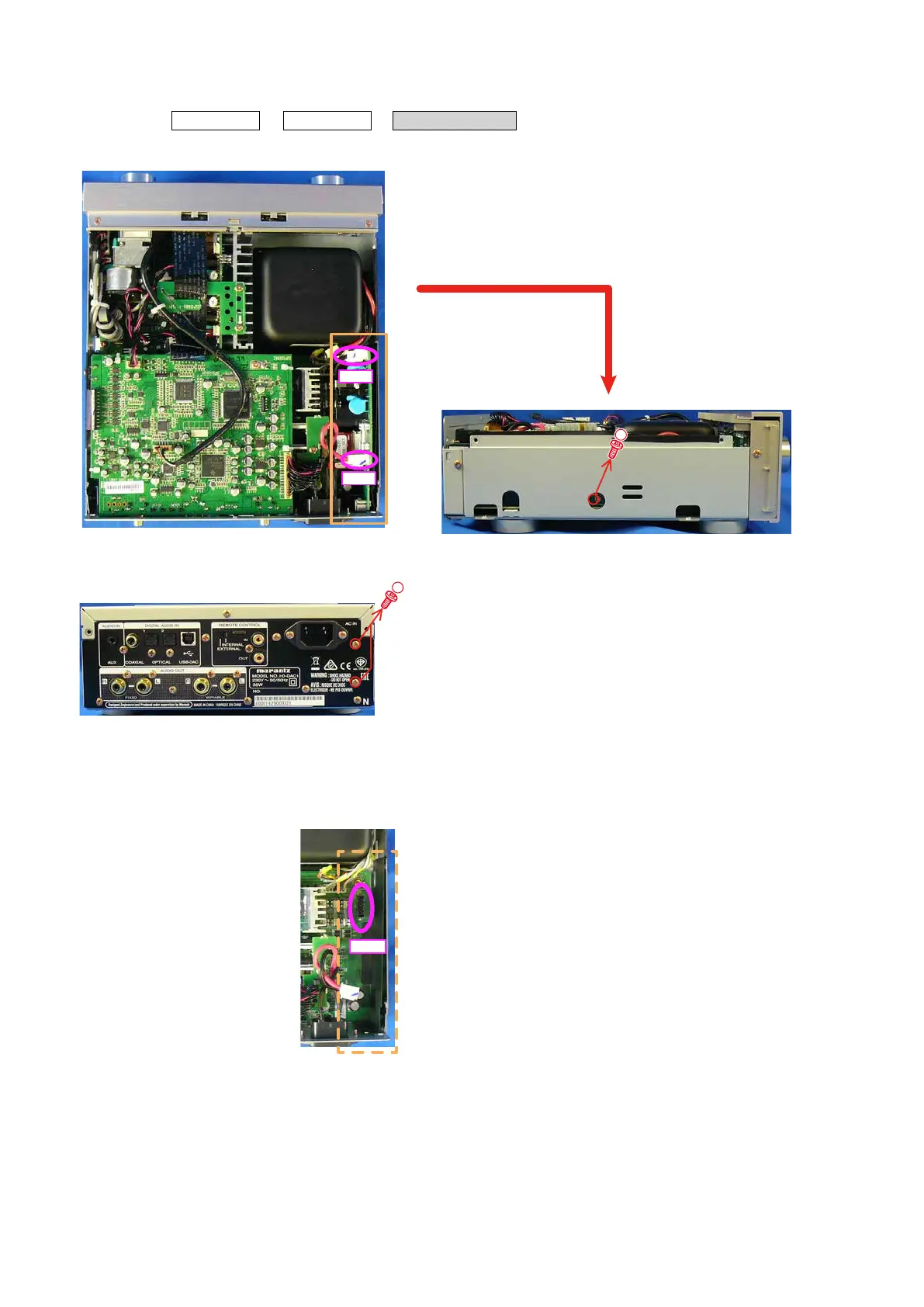

View from the top SUB TRANS PCB
CN92
CN91
View from the rear
View from the left side
View from the top
WF94
20
