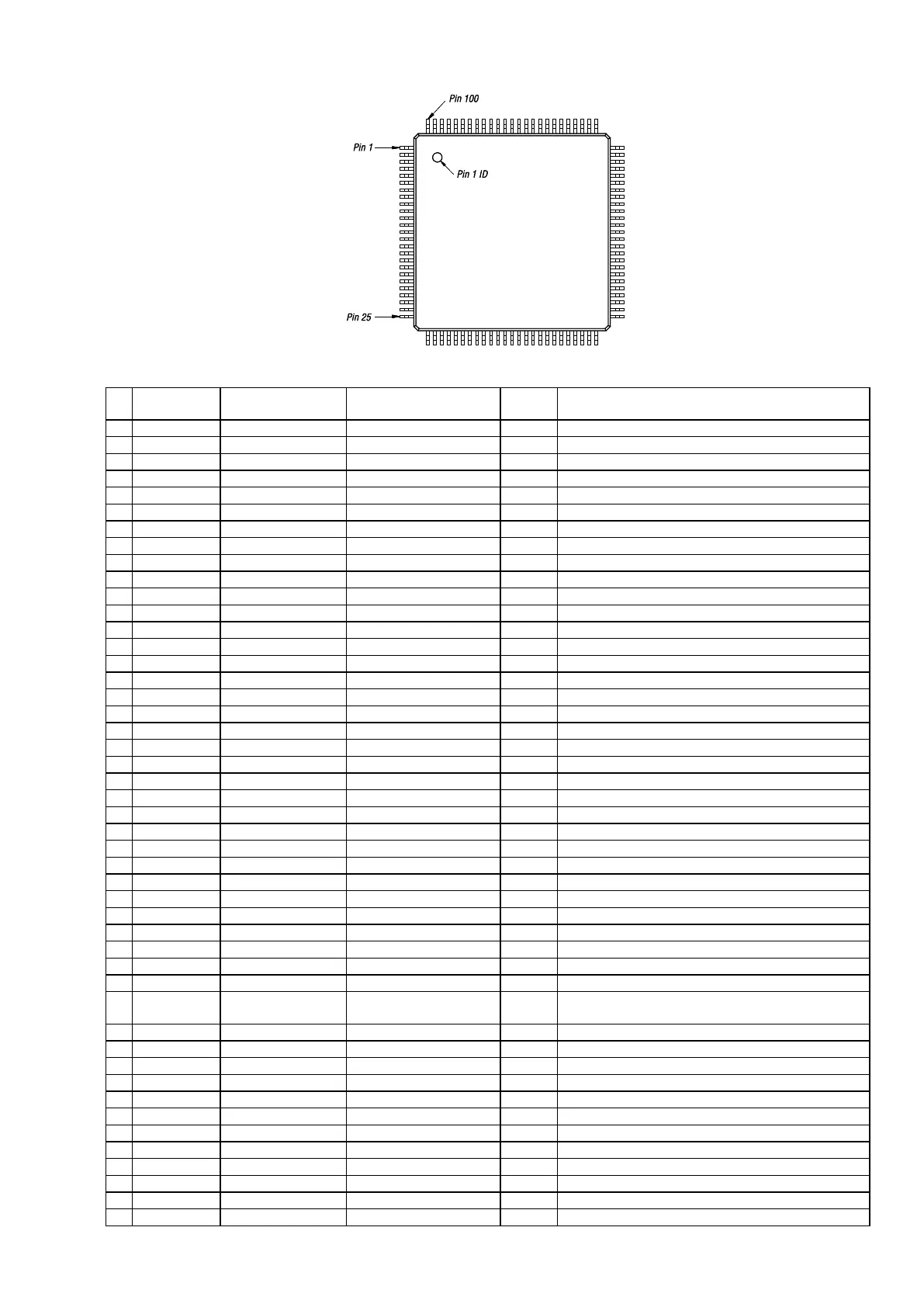

EPM240T100C5N (DIGITAL : IC21)
EPM240T100C5N Terminal Function
Pin
N0.
New Pin/Pad Name Connect Device Direction Detail
1 IO NC - - NC
2 IO NC - - NC
3 IO NC - - NC
4 IO NC - - NC
5 IO NC - - NC
6 IO NC - - NC
7 IO NC - - NC
8 IO NC - - NC
9 VCCIO1 33_VCCIO DA3.3V - Power Supply
10 GNDIO GND DGND - Ground
11 GNDINT GND DGND - Ground
12 IO/GCLK0 .NC - - NC
13 VCCINT 33_VCCIO DA3.3V - Power Supply
14 IO/GCLK1 NC - - NC
15 IO NC - - NC
16 IO NC - - NC
17 IO NC - - NC
18 IO NC - - NC
19 IO NC - - NC
20 IO NC - - NC
21 IO NC - - NC
22 TMS .TMS PLD UPDATE IN Test Mode State for JTAG
23 TDI .TDI PLD UPDATE IN Test Data Input for JTAG
24 TCK .TCK PLD UPDATE IN Test Clock for JTAG
25 TDO .TDO PLD UPDATE OUT Test Data Out for JTAG
26 IO NC - - NC
27 IO .DAC_DSD_DATAL 74LCX157 OUT DAC_DSD_DATAL
28 IO .DAC_DSD_DATAR 74LCX157 OUT DAC_DSD_DATAR
29 IO .DAC_DSD_BCK 74LCX157 OUT DAC_DSD_BCK
30 IO .DAC_LRCK 74LCX157 OUT DAC_LRCK
31 VCCIO1 33_VCCIO DA3.3V - Power Supply
32 GNDIO GND DGND - Ground
33 IO .DAC_DATA 74LCX157 OUT DAC_DATA
34 IO .DAC_BCK 74LCX157 OUT DAC_BCK
35 IO
.DAC_
MCK_22.5792M
DAC_MCK 22M IN DAC_MCK 22.5792MHz
36 IO .22.5792M_DIR DIR_MCK 22M IN DIR_MCK 22.5792MHz
37 IO .22.5792M_USBA USBA_MCK 22M IN USBA_MCK 22.5792MHz
38 IO .DAC_MCK_24.576M DAC_MCK 24M IN DAC_MCK 24.576MHz
39 IO PLD_AMUTE AUDIO MUTE OUT ANALOG Mute
40 IO .44/48 AUDIO UNIT SELECTOR OUT Switch MCK (22M/24M)
41 IO .DAC_CS_OUT CS4398 OUT DAC_CS_OUT
42 IO .DAC_DATA_OUT CS4398 OUT DAC_DATA_OUT
43 IO/DEV_OE .DAC_CK_OUT CS4398 OUT DAC_CK_OUT
44 IO/DEV_CLRn 3.3DD_MONI +3.3DD IN +3.3DD Moni
45 VCCIO1 33_VCCIO DA3.3V - Power Supply
46 GNDIO GND DGND - Ground
47 IO .DAC_RST_OUT CS4398 OUT DAC RST
EPM240T100C5N (DIGITAL : IC21)
EPM240T100C5N Terminal Function
Pin
N0.
New Pin/Pad Name Connect Device Direction Detail
1 IO NC - - NC
2 IO NC - - NC
3 IO NC - - NC
4 IO NC - - NC
5 IO NC - - NC
6 IO NC - - NC
7 IO NC - - NC
8 IO NC - - NC
9 VCCIO1 33_VCCIO DA3.3V - Power Supply
10 GNDIO GND DGND - Ground
11 GNDINT GND DGND - Ground
12 IO/GCLK0 .NC - - NC
13 VCCINT 33_VCCIO DA3.3V - Power Supply
14 IO/GCLK1 NC - - NC
15 IO NC - - NC
16 IO NC - - NC
17 IO NC - - NC
18 IO NC - - NC
19 IO NC - - NC
20 IO NC - - NC
21 IO NC - - NC
22 TMS .TMS PLD UPDATE IN Test Mode State for JTAG
23 TDI .TDI PLD UPDATE IN Test Data Input for JTAG
24 TCK .TCK PLD UPDATE IN Test Clock for JTAG
25 TDO .TDO PLD UPDATE OUT Test Data Out for JTAG
26 IO NC - - NC
27 IO .DAC_DSD_DATAL 74LCX157 OUT DAC_DSD_DATAL
28 IO .DAC_DSD_DATAR 74LCX157 OUT DAC_DSD_DATAR
29 IO .DAC_DSD_BCK 74LCX157 OUT DAC_DSD_BCK
30 IO .DAC_LRCK 74LCX157 OUT DAC_LRCK
31 VCCIO1 33_VCCIO DA3.3V - Power Supply
32 GNDIO GND DGND - Ground
33 IO .DAC_DATA 74LCX157 OUT DAC_DATA
34 IO .DAC_BCK 74LCX157 OUT DAC_BCK
35 IO
.DAC_
MCK_22.5792M
DAC_MCK 22M IN DAC_MCK 22.5792MHz
36 IO .22.5792M_DIR DIR_MCK 22M IN DIR_MCK 22.5792MHz
37 IO .22.5792M_USBA USBA_MCK 22M IN USBA_MCK 22.5792MHz
38 IO .DAC_MCK_24.576M DAC_MCK 24M IN DAC_MCK 24.576MHz
39 IO PLD_AMUTE AUDIO MUTE OUT ANALOG Mute
40 IO .44/48 AUDIO UNIT SELECTOR OUT Switch MCK (22M/24M)
41 IO .DAC_CS_OUT CS4398 OUT DAC_CS_OUT
42 IO .DAC_DATA_OUT CS4398 OUT DAC_DATA_OUT
43 IO/DEV_OE .DAC_CK_OUT CS4398 OUT DAC_CK_OUT
44 IO/DEV_CLRn 3.3DD_MONI +3.3DD IN +3.3DD Moni
45 VCCIO1 33_VCCIO DA3.3V - Power Supply
46 GNDIO GND DGND - Ground
47 IO .DAC_RST_OUT CS4398 OUT DAC RST
77
