TECHNICAL SPECIFICATIONS
n Audio Section
•Power amplifier
Rated output :
Front:
50W+50W(8Ω,20Hz–20kHzwith0.08%T.H.D.)
75W+75W(6Ω,1kHzwith10%T.H.D.)
Center:
50W(8Ω,20Hz–20kHzwith0.08%T.H.D.)
75W(6Ω,1kHzwith10%T.H.D.)
Surround:
50W+50W(8Ω,20Hz–20kHzwith0.08%T.H.D.)
75W+75W(6Ω,1kHzwith10%T.H.D.)
SurroundBack:
50W+50W(8Ω,20Hz–20kHzwith0.08%T.H.D.)
75W+75W(6Ω,1kHzwith10%T.H.D.)
Output connectors : 6–8Ω
•Analog
Input sensitivity/Input impedance : 130mV/50kΩ
Frequency response: 10Hz–100kHz—±3dB(SourceDirectmode)
S/N : 98dB(IHF–Aweighted,DIRECTmode)
n Video Section
•Standard video connectors
Input/output level and impedance : 1Vp-p,75Ω
Frequency response : 5Hz–10MHz—+1,–3dB
•Standard video connectors
Input/output level and impedance :
Y(brightness)signal—1Vp-p,75Ω
PB/CBsignal—0.7Vp-p,75Ω
PR/CRsignal—0.7Vp-p,75Ω
Frequency response : 5Hz–60MHz—+0,–3dB
n Tuner section
[FM](Note:μVat75Ω,0dBf=1x10
–15
W)
Receiving Range (forU):
[FM] 87.5MHz–107.9MHz [AM]520kHz–1710kHz
Receiving Range (forN):
[FM] 87.5MHz–108.0MHz [AM]522kHz–1611kHz
Usable Sensitivity :
[FM]1.2μV(12.8dBf) [AM]18μV
50 dB Quieting Sensitivity (forU):
[FM]MONO2.8μV(20.2dBf)
50 dB Quieting Sensitivity (forN):
[FM]MONO2.0μV(17.3dBf)
STEREO42μV(34.5dBf)
S/N (IHF-A) :
[FM]MONO70dB
STEREO67dB
Total harmonic Distortion (at 1 kHz) (forU):
[FM]MONO0.7%
STEREO1.0%
Total harmonic Distortion (at 1 kHz) (forN):
[FM]MONO0.3%
STEREO0.7%
n General
Power supply(forU) : AC120V,60Hz
Power supply(forN) : AC230V,50Hz
Power consumption :
250W
0.2W(Standby)
3W(CECstandby)
Maximum external dimensions :
440(W)x105(H)x367(D)mm
Weight : 9.0kg
n Remote Control Unit (RC010SR)
Batteries : R03/AAAType(twobatteries)

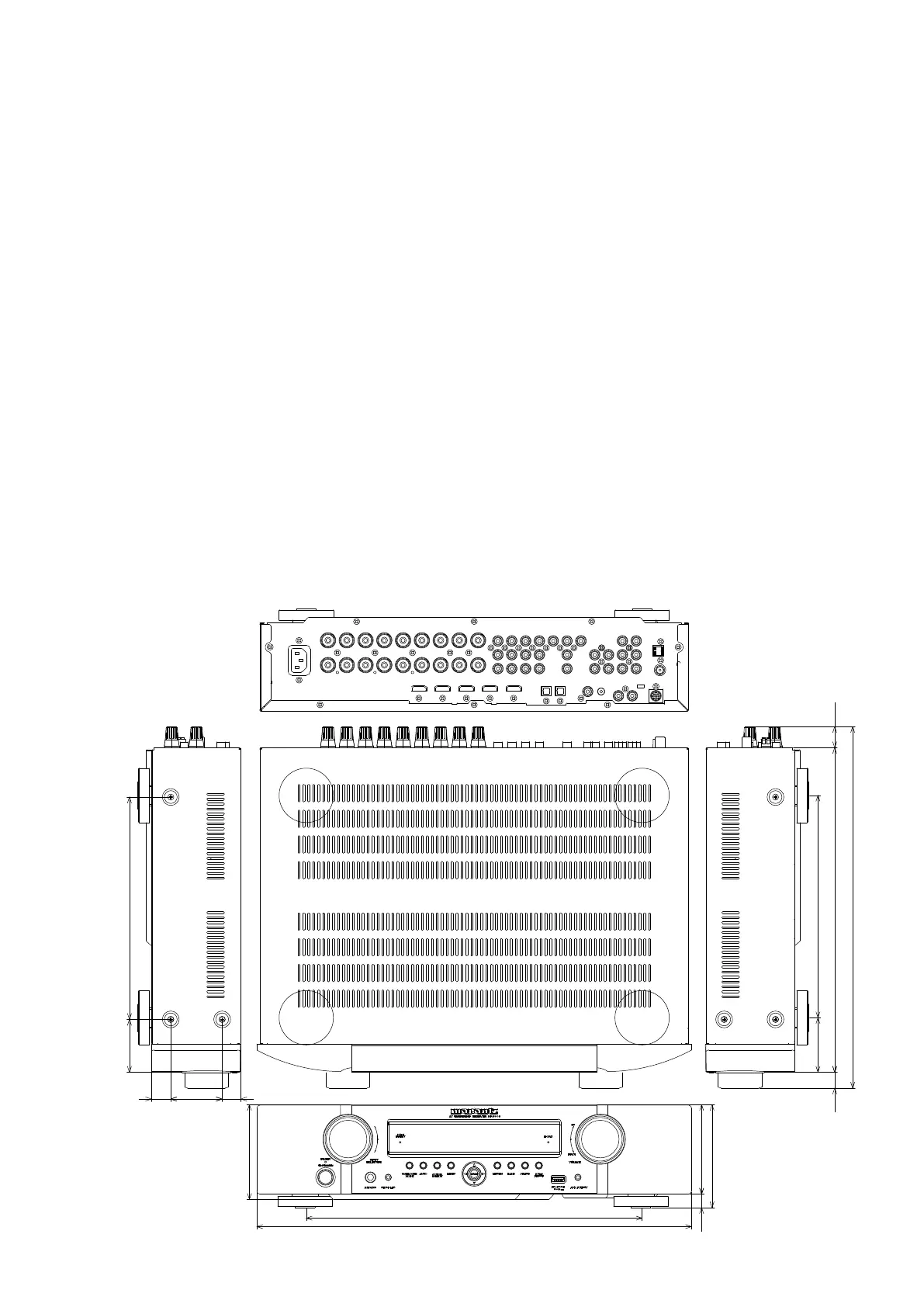

DIMENSION
