Marantz NR1601 - 4. HDMI Unit Assy

12

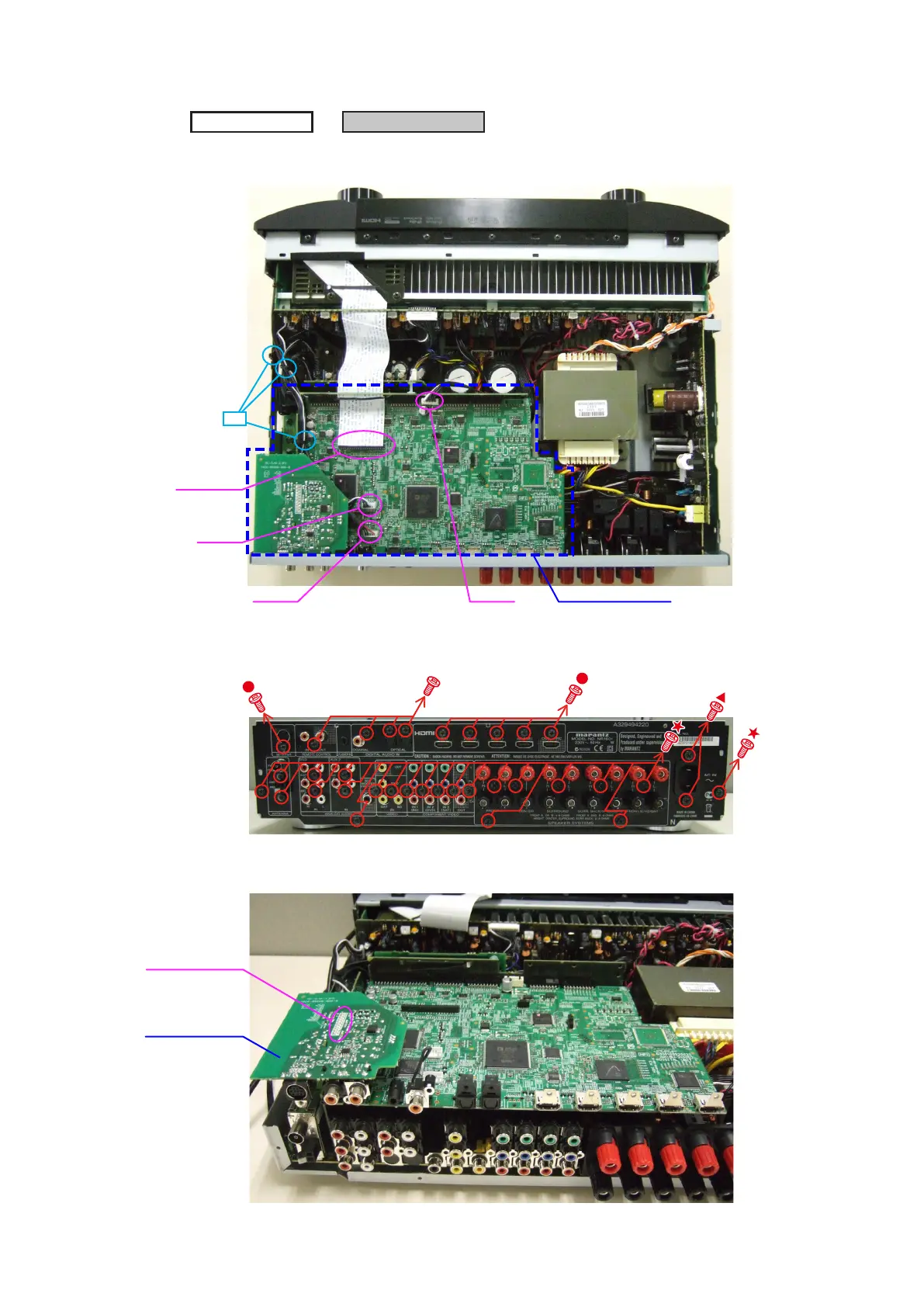

4. HDMI UNIT ASSY
(1) Cutthewireclampbands,thendisconnecttheconnectorwireandFFCcable.
(2) Removethescrews,thenremovetheBACKPANEL.
(3) RemovethePCBRC-5/M-X.
CABINET TOP
HDMI UNIT ASSY
→
Proceeding :
HDMI UNIT ASSY
FFC cable
N2706
N2301 N2501
cut
Direction of photograph: A
Board to board
PCB RC-5/M-X
