Marantz NR1601 - 3. PCB REG CNT;PCB REG

11
3. PCB REG CNT/PCB REG

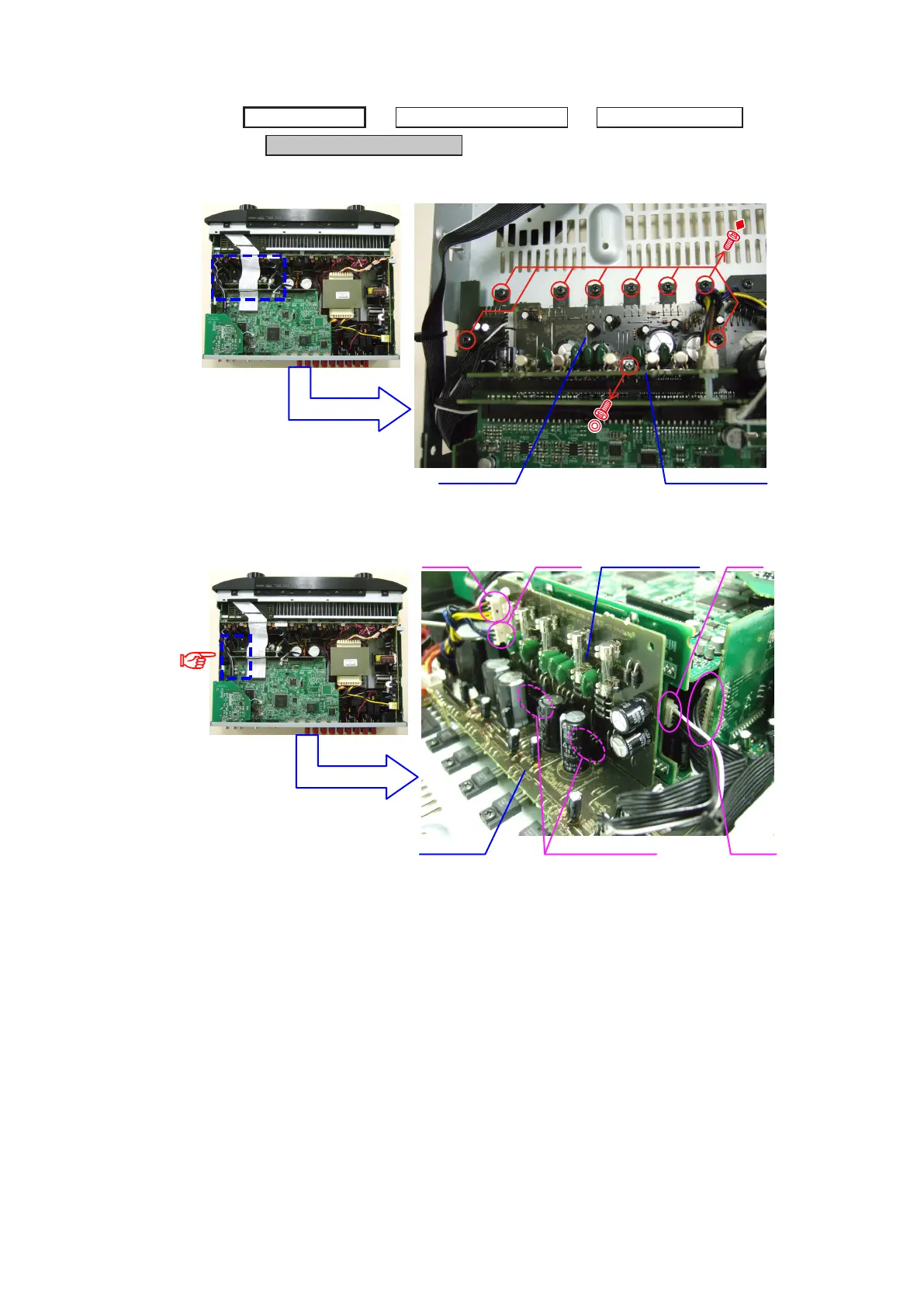

(1) Removethescrews.
(2) Disconnecttheconnectorwiresandconnectorboard.
CABINET TOP
FRONT PANEL ASSY
→
RADIATOR ASSY
→
Proceeding :
PCB REG CNT/PCB REG
→
PCB REG CNTPCB REG
Direction of photograph: C
CP10CP104 PCB REG CNT
Board to board
CP102
CP13A PCB REG
