Marantz NR1601 - 2. Radiator Assy

9

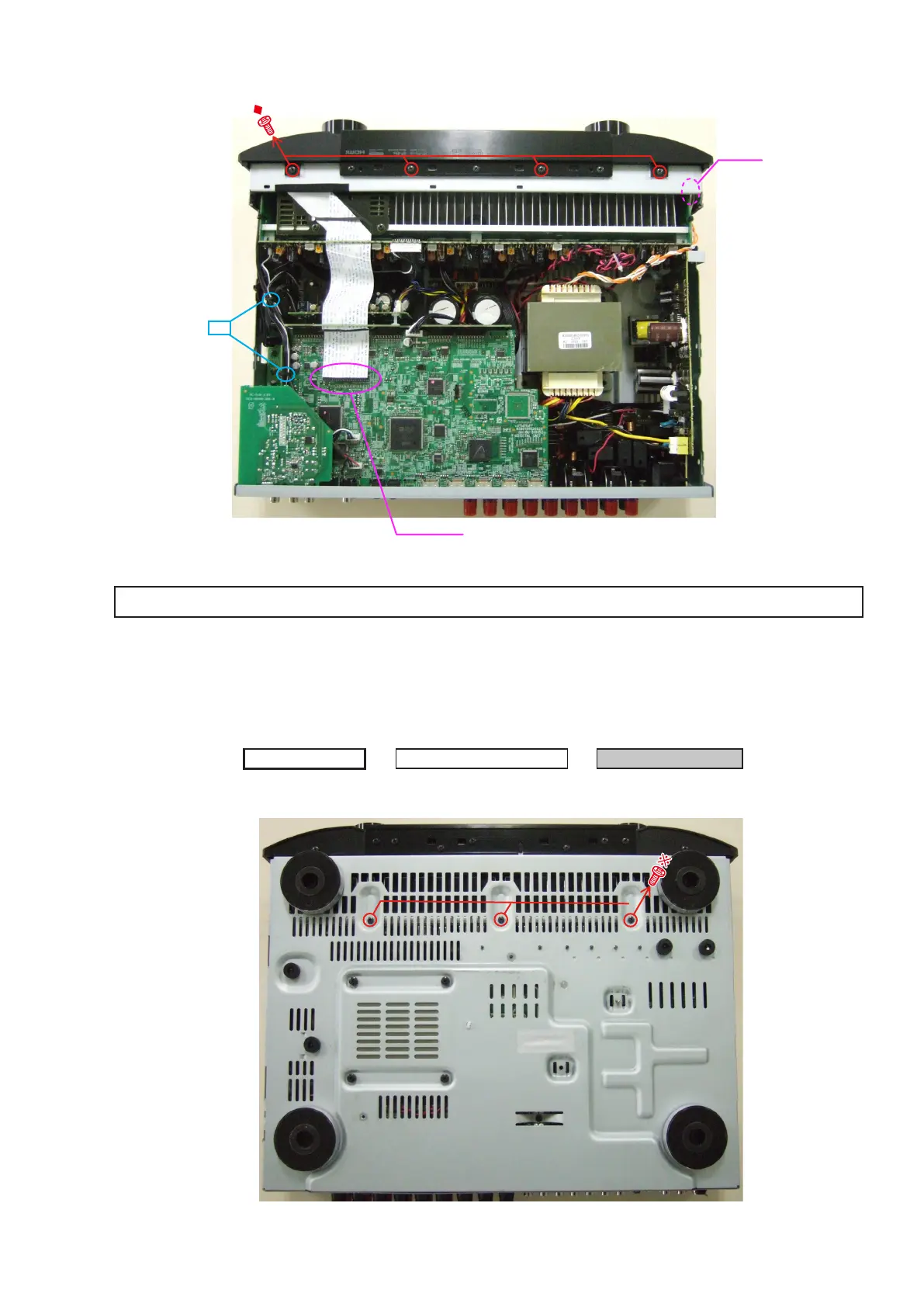

(3) DisconnecttheconnectorwiresandFFCcable.Removethescrews.
2. RADIATOR ASSY
(1) Removethescrews.
CP303
FFC cable
cut
Pleasereferto"EXPLODEDVIEW"forthedisassemblymethodofeachPCBincludedinFRONTPANELASSY.
CABINET TOP
FRONT PANEL ASSY
→
RADIATOR ASSY
→
Proceeding :
View from bottom
