Marantz PM-10 Service Manual

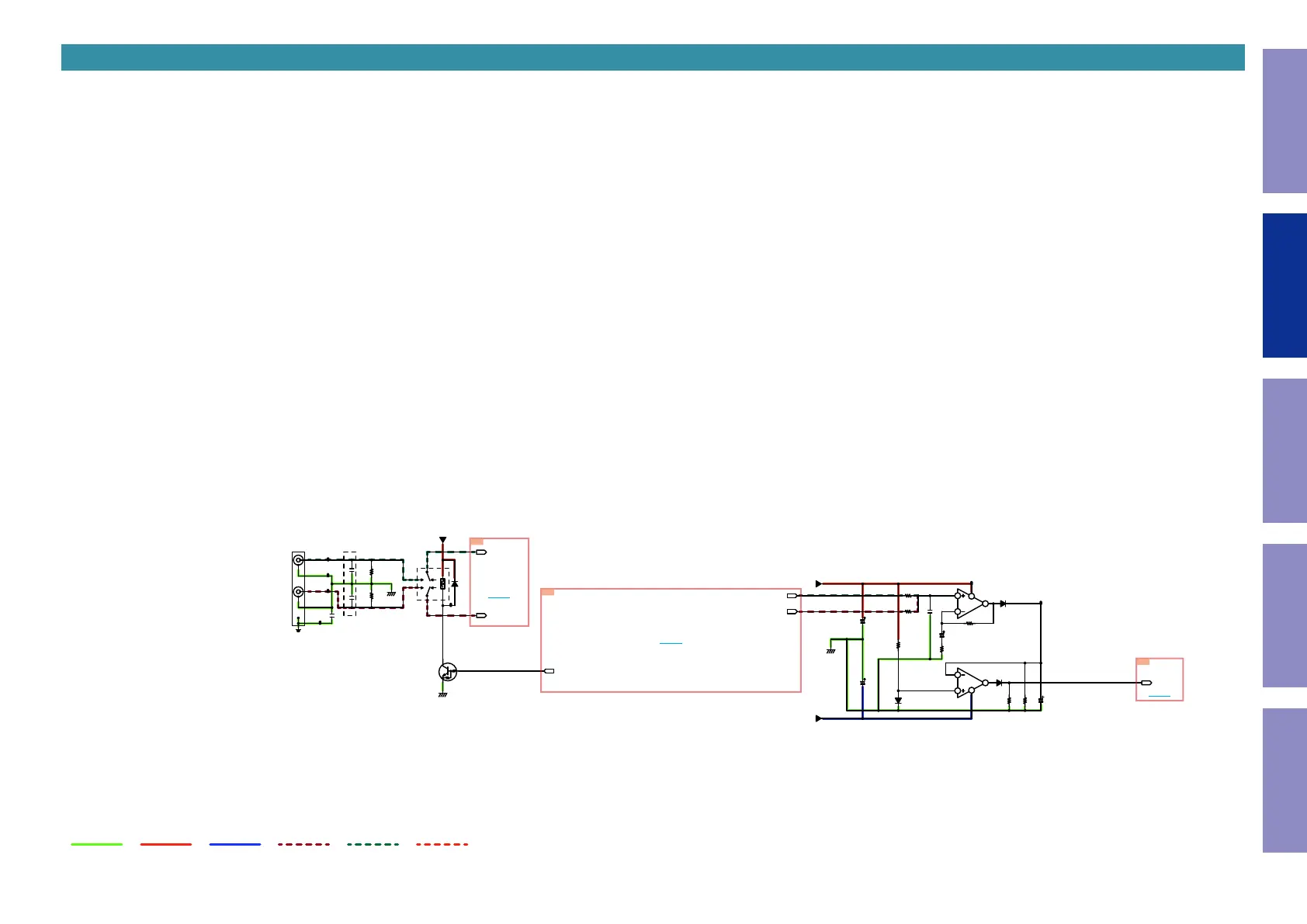

SCH09_RCA IN PWB 2
GND LINE POWER- LINE POWER+ LINE Rch SIGNAL Lch SIGNAL STBY POWER
A-GND.
R3913
39K
R3915
100K
+18V.
C3910 10/35
R3910
100
D3904
1SS355T
R3904
10K
C3901 47/25
D3907
1SS355T
C3907
100P
R3914
100K
-18V.
D3903
1SS355T
NJM2068MD
U3902
C3912 10/35
NJM2068MD
U3902
R3905
10K
R3901
47K
C3902 47/25
CHASSIS
C3615
0.1Z
K3602
DET
RO_L.
RO_R.
C3617
220P
C3616
220P
R3903
330K
R3902
330K
A-GND.
D3901
1SS133
NA24W-K
S3901
+24V.
Q3901
KRC102S
L-GND.
P.DIRECT.
P_DI_L
P_DI_R
7
8
6
5
1
4
2
3
4
3
2
1
6
8 4
5
7 3
1
2
1/2
2/2
R
L
POWER AMP DIRECT IN
F,U: OPEN
N,K: 220pF
8U-210217-2
RCA IN PWB 2/3
to RCA IN PWB 1/3
C3009,C3010
P.DIRECT
+3.3V:P.DIRECT
0V :ohter input
from RCA IN PWB 1/3
from RCA IN PWB 1/3
to RCA IN PWB 1/3
3A
TO A3
5A
TO A5
6A
TO A6
18
Caution in
servicing
Electrical Mechanical Repair Information Updating

Marantz PM-10 Specifications

General

Type	Integrated Amplifier
Frequency Response	5 Hz - 50 kHz
Total Harmonic Distortion	0.005%
Dimensions	440 x 168 x 453 mm
Weight	21.5 kg
Damping Factor	500
Available Colors	Silver, Black
Power Output	200W per channel (8Ω)
Input Sensitivity	220 mV / 22 kohm
