NAMES AND FUNCTIONS
DISPLAY
OPERATE
!5
!6
!7

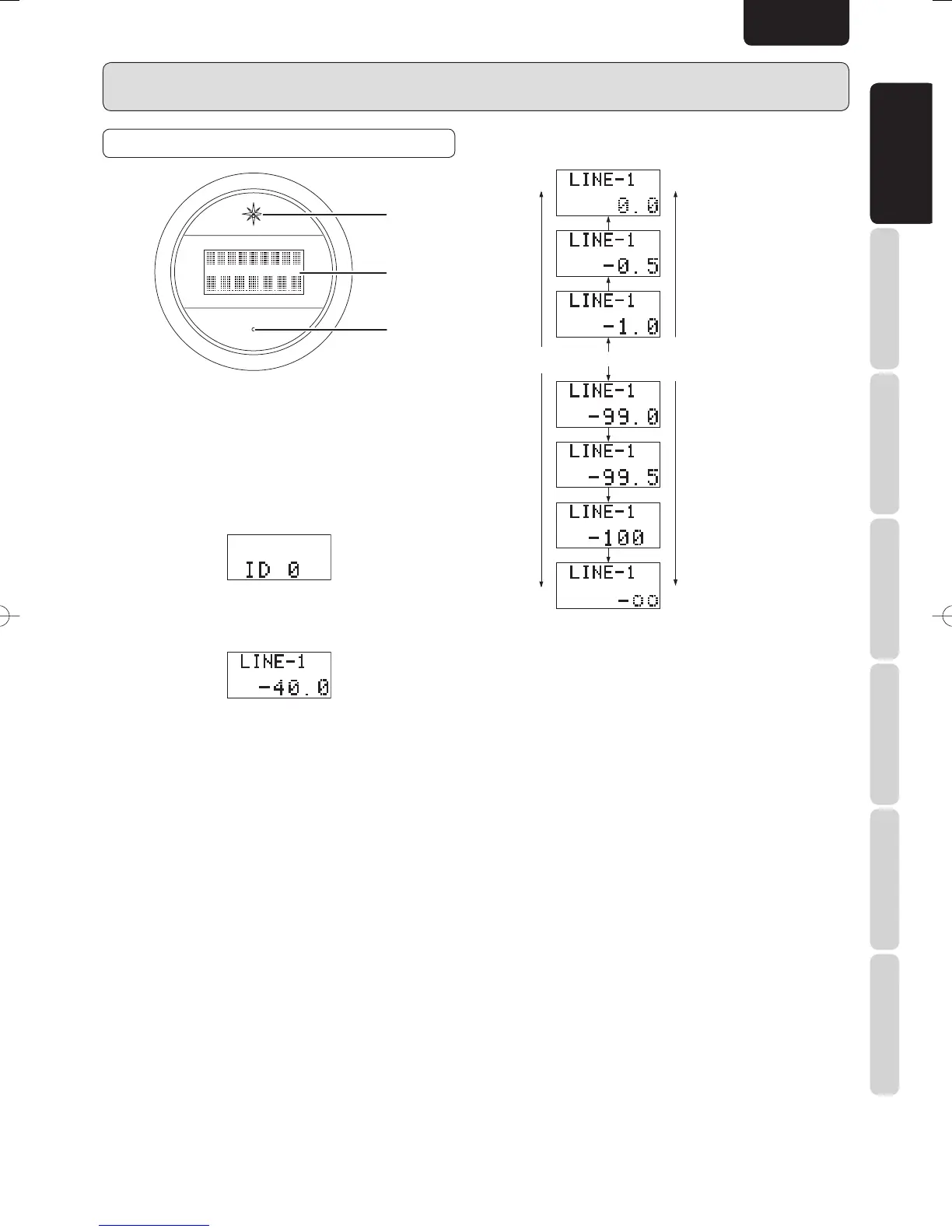

!5 Power Indicator
This indicator is lit a blue color while power to the unit is
ON.
!6 Display Panel
Approximately 3 seconds after the power to the unit is
activated, the ID number is displayed here.
After that, the top line displays the selected input source,
and the bottom line displays the volume level. The volume
attenuation (dB units) is displayed.
The display also displays the setting values when adjusting
the left-right level balance. For instructions on How to
Trim Volume Level, see page. 22. Other messages that
correspond to various operations are also displayed.
!7 OPERATE Indicator
This indicator fl ashes the operating status of the unit.
When the ID is set to “0” for standalone operation, it is lit
a red color. When multiple amplifi ers are connected by
F.C.B.S., only ID number “1” for the master is lit red color.
The slave amplifi er whose indicator does not light a red
color cannot be used to operate other units in sync.
For more information on F.C.B.S., see page. 20.
The indicator fl ashes red if a protective circuit trips.
VOLUME Indicator Volume Display
Max
Min
0.5dB Steps
Turn the VOLUME knob on the
unit to the right, or press the
VOLUME 5 button on the remote
controller.
Turn the VOLUME knob on the
unit to the left, or press the
VOLUME ∞ button on the remote
controller.
