Marantz PM-11S2 - Advanced Connection Methods

16
NAMES AND FUNCTIONS BASIC CONNECTIONS BASIC OPERATIONS
ADVANCED CONNECTIONS
ADVANCED OPERATIONS TROUBLESHOOTING OTHERS
ADVANCED CONNECTIONS
ENGLISH
ADVANCED CONNECTIONS
CD Player

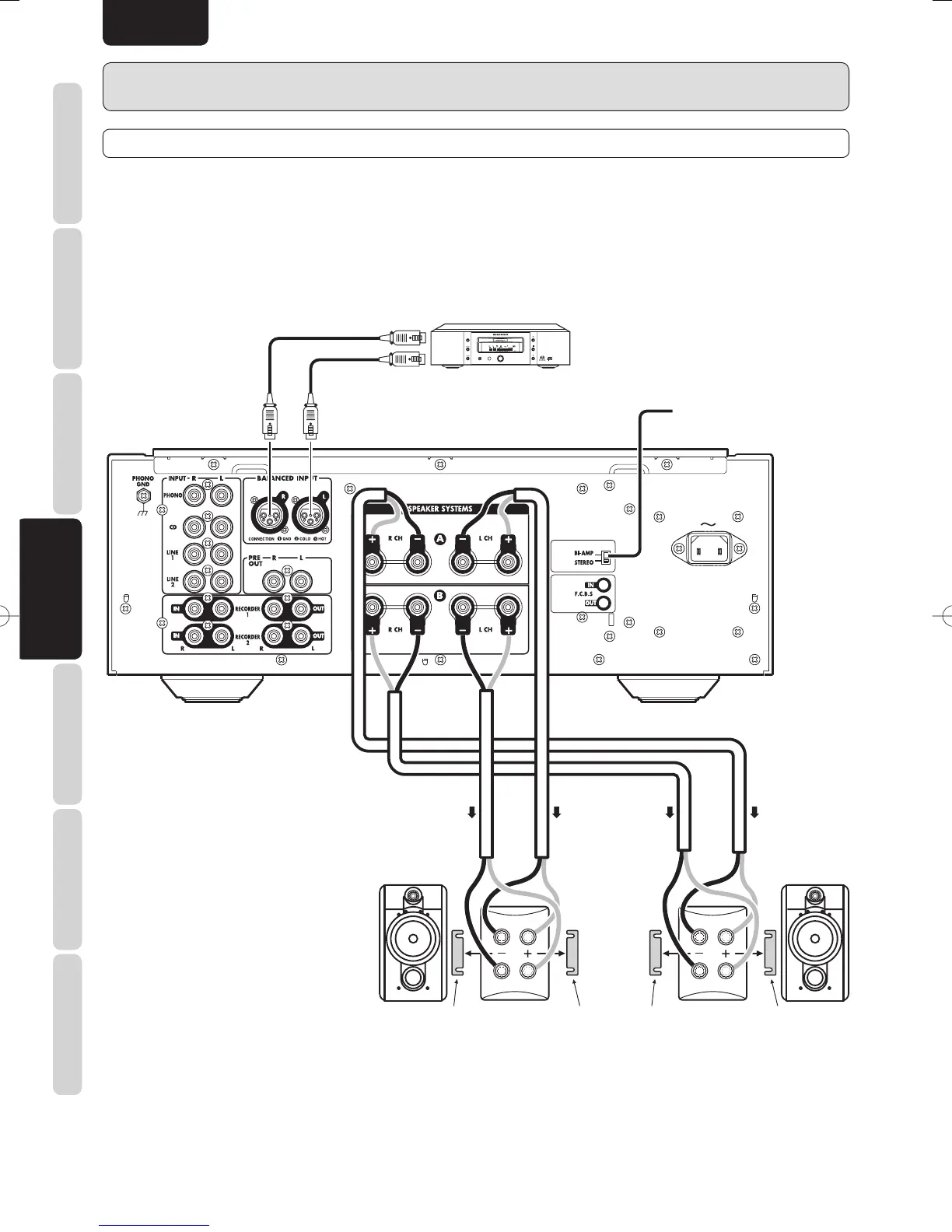

BI-WIRING CONNECTION
A bi-wiring connection separately connects the low and mid/high jacks of the speaker to the amplifier using separate speaker
cables. Because separate cables are used for low and mid/high sounds, the return current generated in the low speaker causes
little interference with the mid/high speaker.
• If speakers that do not support bi-wiring connection are used, connect them to either the SPEAKER A or B terminals.
• If using speakers that do not support a bi-wiring connection, connect them to either the SPEAKER SYSTEM A or B terminals.
AC IN
3
1 2
3
1 2
MF / HF
LF
MF / HF
LF
PAUSEPAUSE
STOPSTOP
PLAYPLAY
DISPLAY OFF
OPEN/OPEN/
SOUNDSOUND POWER ON/OFFPOWER ON/OFF
SUPER AUDIO CD PLAYER SA-11S1SUPER AUDIO CD PLAYER SA-11S1
CLOSECLOSE
MODEMODE
To balanced
output jacks
Set to “STEREO”.
Remove shorting bar. L CH
speaker
R CH
speaker
Remove shorting bar. Remove shorting
bar.
