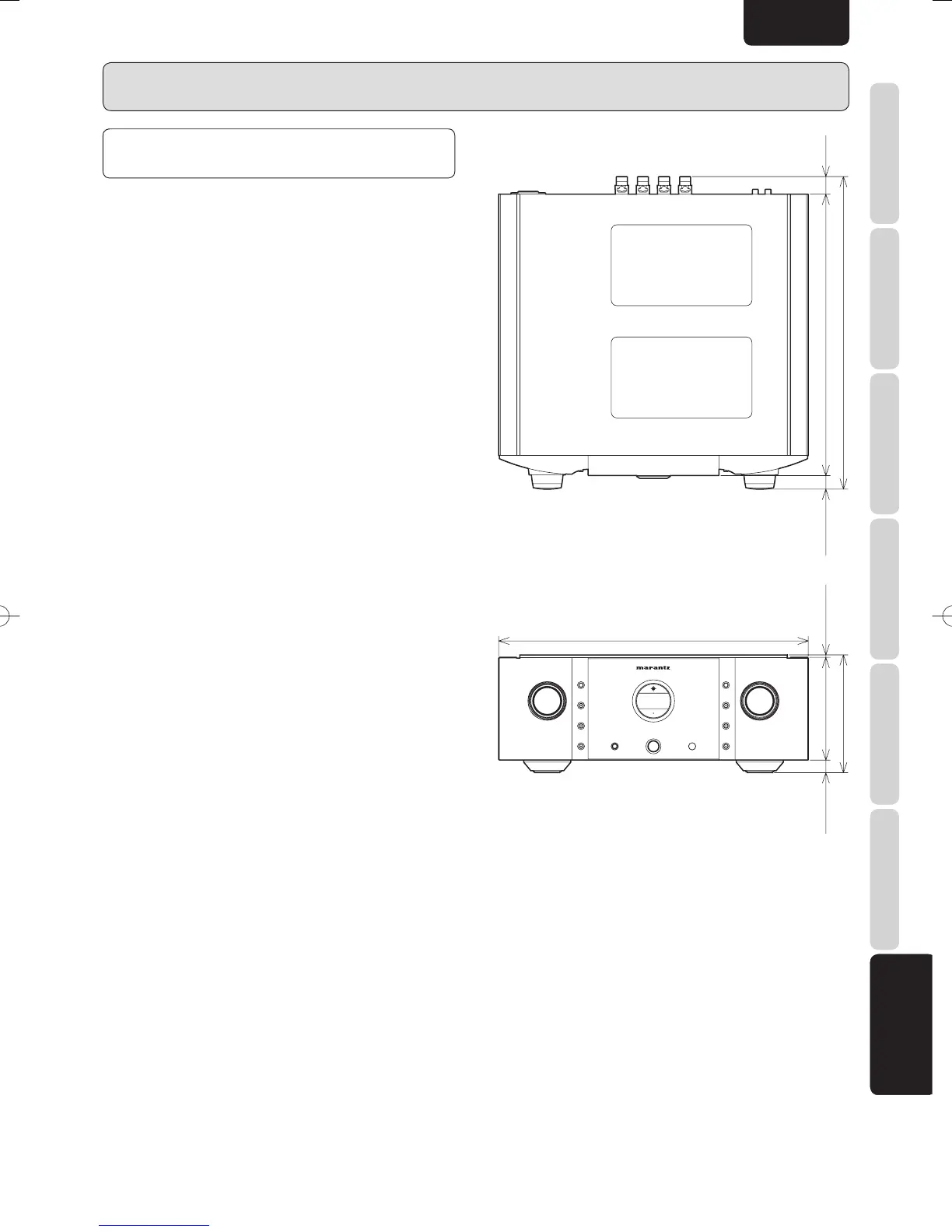

SPECIFICATIONS &
DIMENSIONAL DRAWINGS
Power output
(20 Hz – 20 kHz simultaneous drive of both channels)
.....................................................100W x 2 (8Ω load)
.....................................................200W x 2 (4Ω load)
Total frequency distortion
(20Hz – 20kHz simultaneous drive of both channels, 8Ω load)
..........................................................................0.01%
Output band width (8Ω load, 0.05%) .................. 5Hz ~50kHz
Frequency response (CD, 1W, 8Ω load) ..5Hz ~ 120kHz±3dB
Dumping factor (8Ω load, 20Hz – 20kHz) .........................100
Input sensitivity/Input impedance
PHONO (MC) ................................................270µV/100Ω
PHONO (MM) ..................................................3mV/47kΩ
BALANCED .................................................480mV/20kΩ
CD/LINE .......................................................240mV/20kΩ
Output voltage/Output impedance
PRE OUT ........................................................1.9 V/220Ω
Maximum allowed PHONO input (1kHz)
MC .......................................................................... 12mV
MM ........................................................................ 130mV
RIAA deviation (20Hz ~ 20kHz) ............................ ±0.5dB
S/N (IHF-A, 1W, 8Ω load)
PHONO (MC) .....................................76dB (0.5mV input)
PHONO (MM) .......................................90dB (5mV input)
BALANCED .............................................95dB (1V input)
CD/LINE ............................................96dB (500mV input)
Tone control
Bass (50Hz) ............................................................. ±8dB
Treble (20kHz) .......................................................... ±8dB
Power requirement
...............................................AC 120V 60Hz (U.S.A.)
........................................ AC 230V 50/60Hz (Europe)
Power consumption
(EN60065 7th Ed.) .................................................. 300W
(UL60065) ............................................................... 300W
Accessories
Remote controller ...........................................................1
AAA batteries ..................................................................2
Detachable AC power cable ............................................1
Maximum outer dimensions (Amp)
Width ................................................17-3/8 ins. (440 mm)
Height ................................................6-5/8 ins. (168 mm)
Depth ...............................................17-1/2 ins. (444 mm)
Weight (Amp) .............................................. 58.6 lbs (26.6 kg)
POWER ON/OFF
PHONES
VOLUME
A
TONE
SPEAKER
B
SPEAKER
REC OUT
PRE OUT
ATT.
MC
OPERATE
PHONO
DISPLAY
SELECTOR
INPUT
6-5/8 (168)
3/16 (4)
5-3/4 (146)
3/4 (18)
17-3/8 (440)
17-1/2 (444)
3/4 (19)
1 (25)
15-3/4 (400)
Unit: inch (mm)
Specifications subject to change without prior notice.
