Marantz PM-11S2 - Basic Connection for 5.1 Multi-Channel Playback

19
NAMES AND FUNCTIONSBASIC CONNECTIONSBASIC OPERATIONS
ADVANCED CONNECTIONS
ADVANCED OPERATIONSTROUBLESHOOTINGOTHERS
ADVANCED CONNECTIONS
ENGLISH
ADVANCED CONNECTIONS

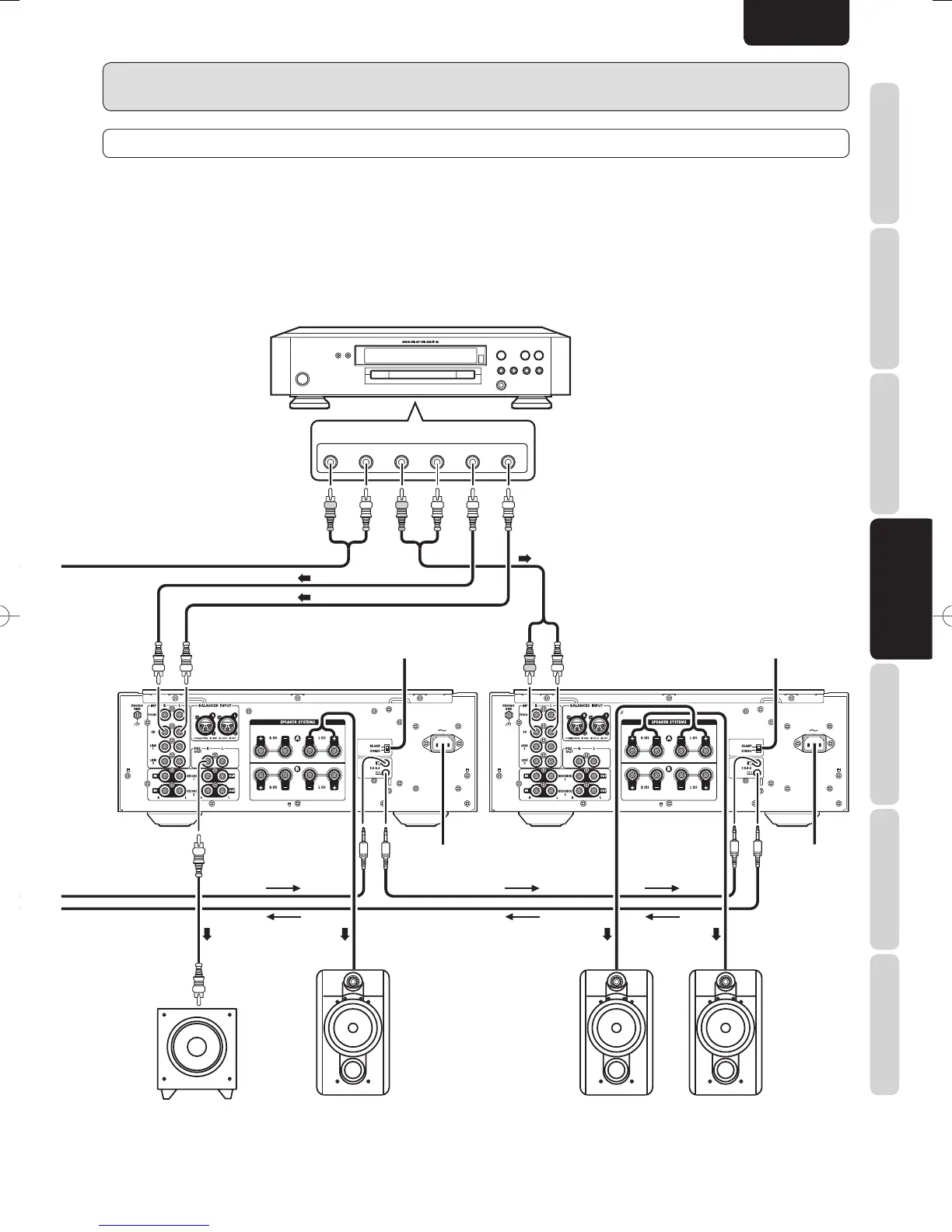

BASIC CONNECTION FOR 5.1 MULTI-CHANNEL PLAYBACK
q The three units are connected using F.C.B.S. For the F.C.B.S connection, prepare 3 audio connection cables, and refer to
F.C.B.S. on page 20.
w Set the ID numbers for the three amplifiers as explained in HOW TO SET ID NUMBERS (page. 21).
When the ID 1 unit is operated, ID 2 and ID 3 units will operate in sync.
e Connect the outputs of players that have 5.1 channel analog outputs to each of the three units.
r If using an active subwoofer, see the instruction manual that came with the subwoofer for further instructions.
AC IN
3
1 2
3
1 2
AC IN
3
1 2
3
1 2
FRONT R FRONT L SURROUND R
MULTI CHANNEL AUDIO OUT
SURROUND L SUB-WOOFER CENTER
SACD multi-channel player, etc.
For center speaker or subwoofer
Set PM-11S2 to ID 2.
Set SPEAKER A button on front
panel in ON position.
Set PRE OUT button on front
panel in ON position.
Set to “STEREO”.
For surround speakers
Set PM-11S2 to ID 3.
Set SPEAKER A button on
front panel in ON position.
Set to “STEREO”.
To power outlet To power outlet
To line input jack
Active
subwoofer
Front center
speaker
L CH
surround
speaker
R CH
surround
speaker
