11
NAMES AND FUNCTIONSBASIC CONNECTIONSBASIC OPERATIONS
ADVANCED CONNECTIONS
ADVANCED OPERATIONSTROUBLESHOOTINGOTHERS BASIC CONNECTIONS
ENGLISH
BASIC CONNECTIONS
Notes:
• Do not connect the power cord of this unit or any of the
other components to the power supply until all of the
connections are completed.
• Insert the plugs of the connections cords firmly into the
connecting jacks. Incorrect insertion may cause noise.
• Connect the wires correctly to the L (left) and R (right)
channels. The red jack is the R (right) channel, and the
white jack is the L (left) channel.
• Make sure that input and output are connected correctly.
• Refer also to the instruction manuals of components to
connect equipment correctly.
BALANCED JACKS
q The BALANCED jacks on this unit are equipped with XLR
connectors that are widely used on professional equipment.
Their features are listed below.
• The 3 pin construction enables the musical signal to be
transmitted as a balanced signal, with little effect from
external noise
• The detachable locking mechanism minimizes connector
play and enhances connection reliability.

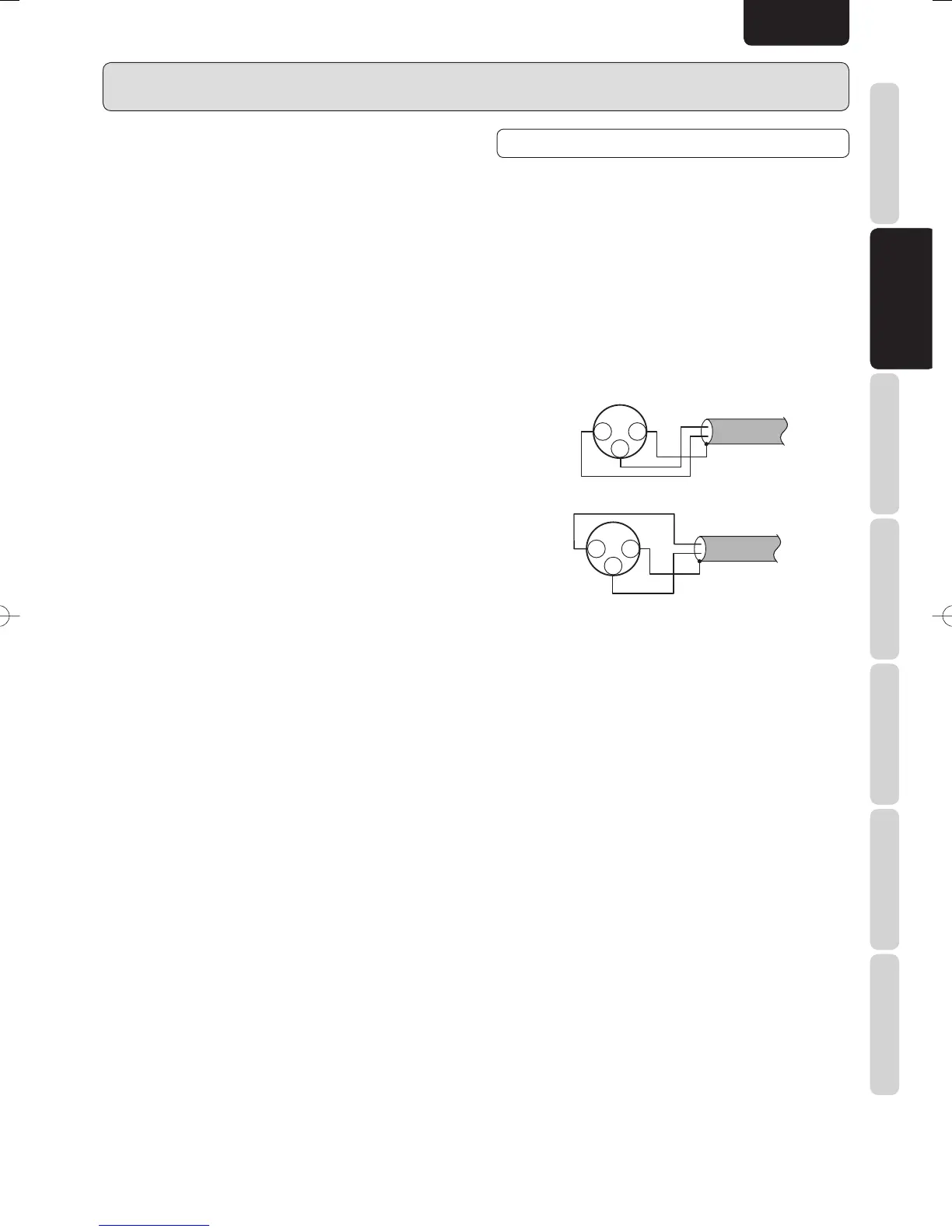

w The XLR connector for professional use is internally wired
in either of the following two systems.
1. USA system (Pin w = COLD, Pin e = HOT)
21
3
GND
COLD
HOT
2. European system (Pin w = HOT, Pin e = COLD)
21
3
HOT
GND
COLD
e This unit uses the 1. USA system.
If a product that employs the European system is connected
with this unit via a balanced cable, the reproduced signal
may be phase-inverted.
In this case, refer to “ANALOG OUTPUT CONNECTOR
PHASE SWITCHING”, and set so that the correct phase
is used.
PM-11S2UN01Eng.indd11PM-11S2UN01Eng.indd11 08.8.76:42:19PM08.8.76:42:19PM
