BASIC CONNECTIONS

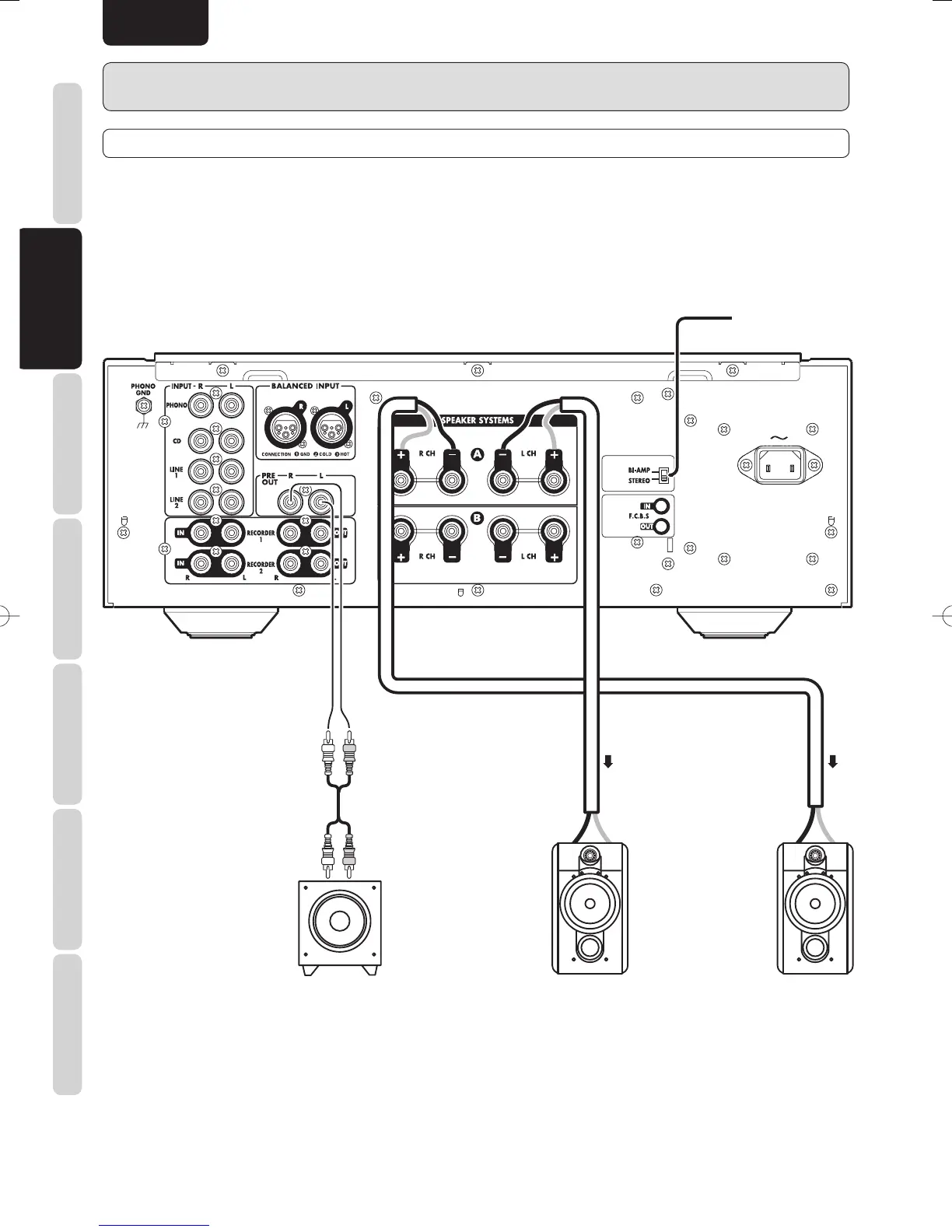

CONNECTING SPEAKER SYSTEMS
• If using an active subwoofer, set the PRE OUT button on the front panel to ON.
• Your speaker system needs to meet the following requirements. If speakers that do not meet the following requirements are used,
the amplifier protective circuit may trip, and sounds will not playback correctly. In certain cases, damage may also be caused to
the amplifier and speaker system.
• If using 1 set of speakers, total speaker impedance must be 4Ω or more.
• If using 2 sets of speakers, total speaker impedance must be 8Ω or more.
AC IN
3
1
2
3
1
2
Set to “STEREO”
To LINE IN jacks
Active subwoofer, etc. L CH speaker R CH speaker
