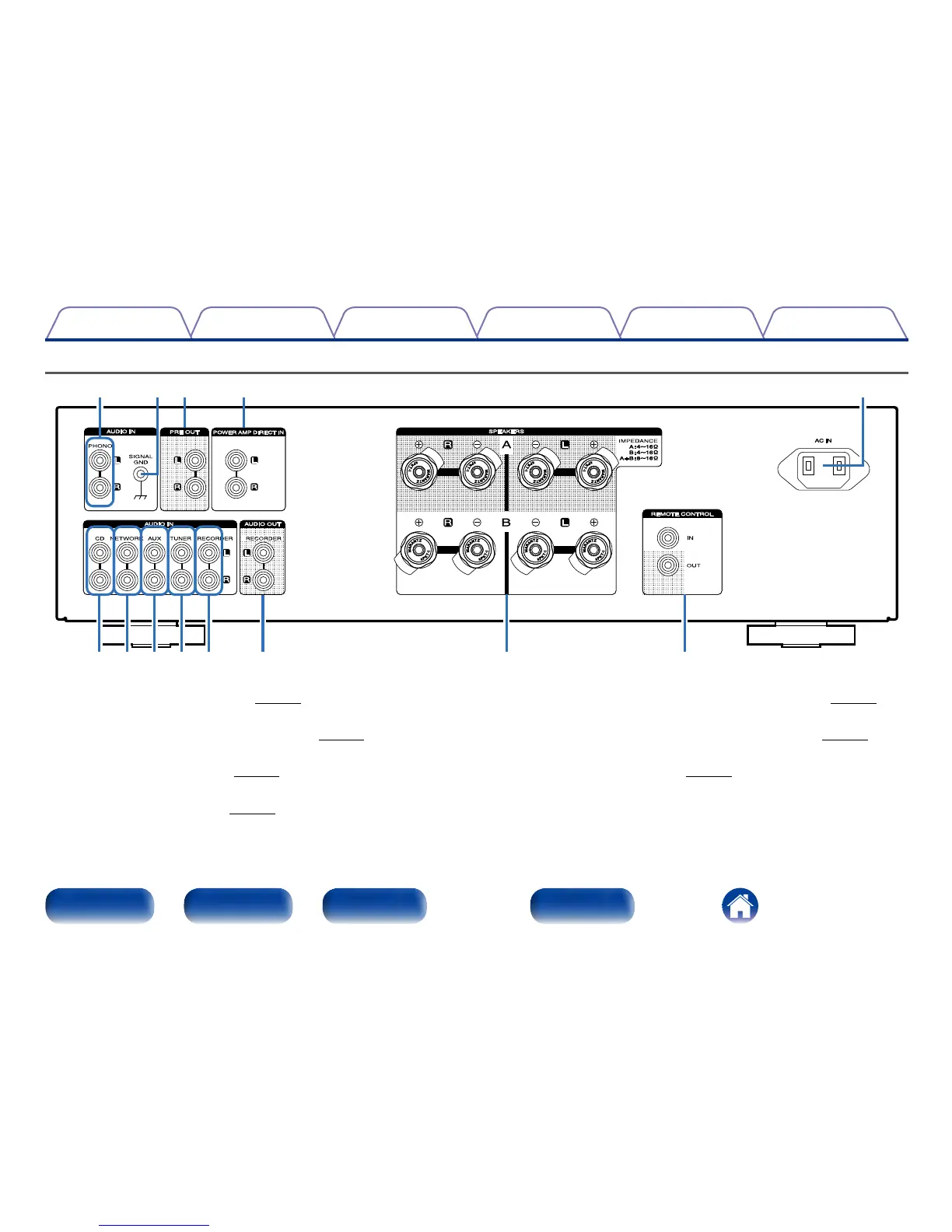

Rear panel
u i
Q0Q1Q2Q3 o
yrewq t
q CD input connectors
Used to connect a CD player (vpage19).
w Network audio player input connectors (NETWORK)
Used to connect a network audio player (vpage19).
e AUX input connectors
Used to connect a player (vpage19).
r Tuner input connectors (TUNER)
Used to connect a tuner (vpage19).
t Recorder input connectors (RECORDER)
Used to connect the output connector of a recorder (vpage20).
y Recorder output connectors (RECORDER)
Used to connect the input connector of a recorder (vpage20).
u Speaker system terminals (SPEAKERS)
Used to connect speakers (vpage16).
