Basic Recording Operation

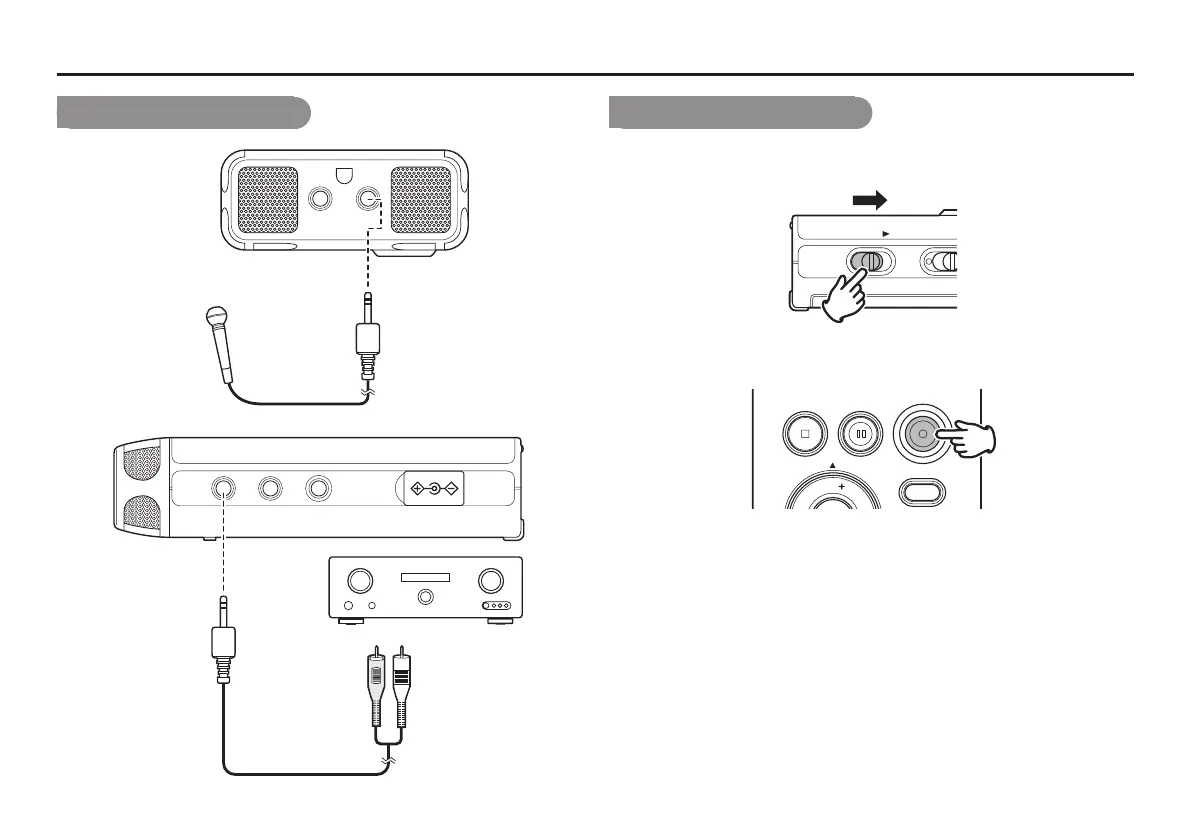

Connection Diagram
PHONES MIC
MIC IN
MICROPHONE
IN - LINE - OUT REMOTE DC IN
LINE
IN
LINE
OUT
AMPLIFIER
Recording Procedure
1.
Slide and hold the POWER switch to turn on.
POWER KEYLOCK
2.
Press the REC button to begin recording.
REC
DISPLAY
VOL
REC PAUSESTOP/CANCEL
• The Rec indicator will be lit and steady while recording.
