Marantz PMD620 User Manual

38
Extended Remote Jack
The play, FF, RWD keys can be added to the remote control
functions by using the equivalent circuit showing below.

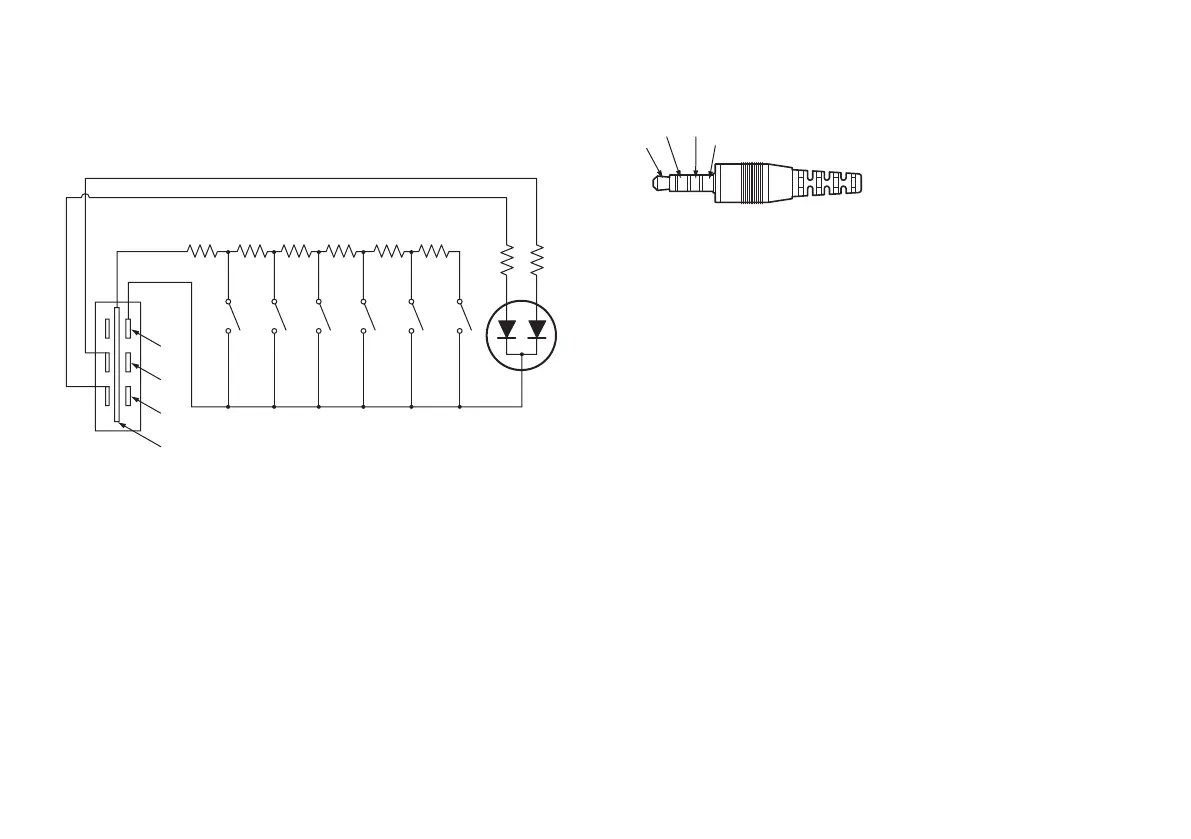

Circuit diagram:
R1
1k
S1
4
REC PLAY REW MARK FFREC
PAUSE
S2 S3 S4 S5 S6
R2
3.9k
R3
6.8k
R4
11k
R5
15k
R6
30k
R7
220
R8
220
3
2
1
Notes:
Playback during closing and holding the PLAY switch, and skip back then
pause at the point when it opened.
The MARK switch is invalid for the PMD620.
Resistance error - Within 5%.
Never apply external voltage. Doing so will result in malfunction.
Insurate the circuit so that it cannot be touched directly. Use a structure that
protects the circuit from static electricity, which will cause malfunction.
Do not operate the switches at the same time as the buttons on the set.
D&M professional accepts no responsibility whatsoever for any damages or
infringements of patents or other rights resulting from the use of the circuits.
This does not sanction patents or other rights of D&M professional or third
parties.
It is strictly forbidden to reprint or reproduce the circuit diagrams in part or
in whole.
•
•
•
•
•
•
•
•
Plug Type (1/8” T-R-R-S Mini Plug)
ø3.5/4P (TMP-B66)
1
4
23
1: Tip
2: Ring
3: Ring
4: Sleeve
