Marantz SA8400 - Connecting the Player; Audio and Digital Connections; Signal Output Notes

ENGLISH
ENGLISH
10
CONNECTIONS
Depending on your amplifier/receiver/Stereo System, there are various ways to connect to this player. For correct connection
please refer to instruction manuals of stereo system to be connected.
Caution: Do not connect output from this unit to PHONO input of your audio system.

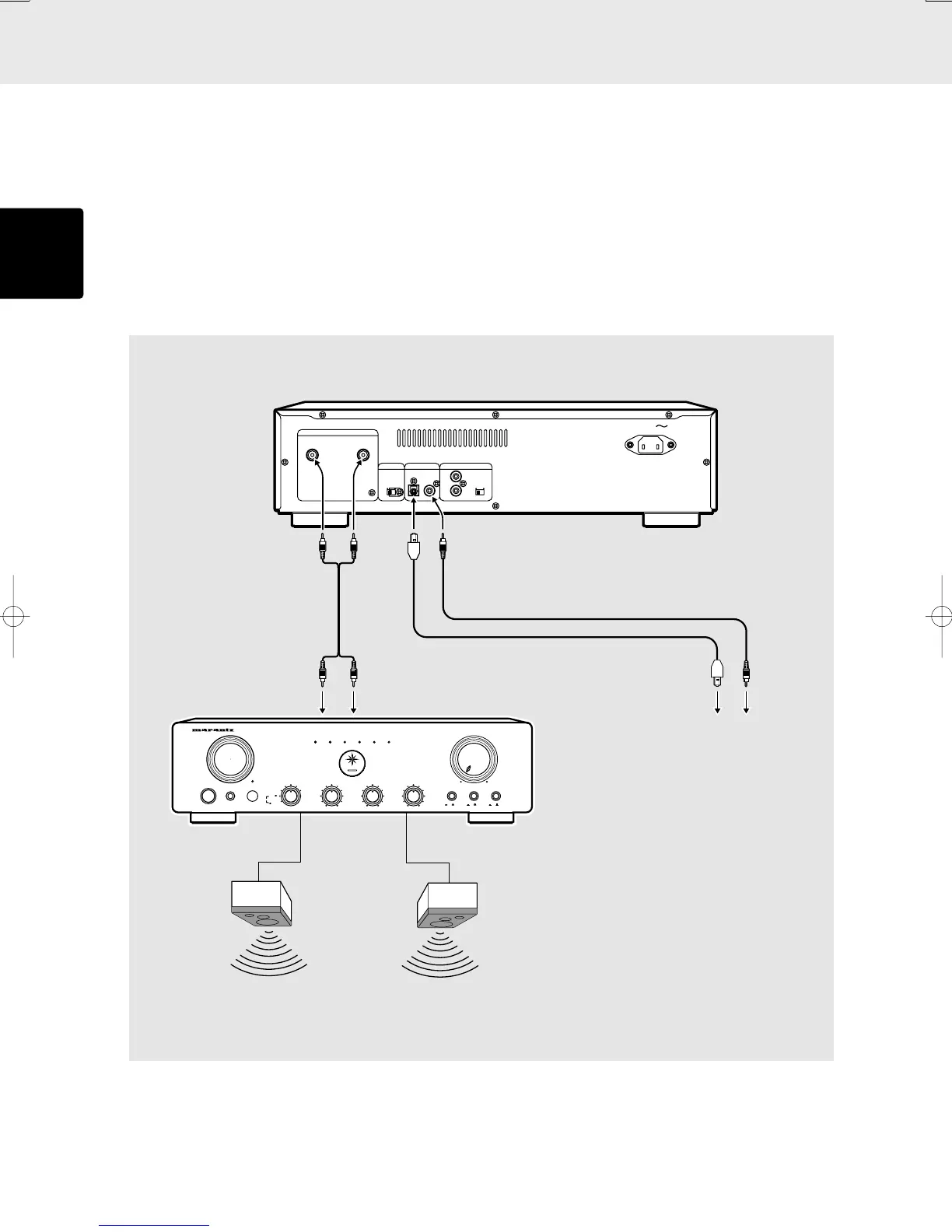

1. Connect the audio cable q to this unit’s front speaker outputs and the stereo inputs on your amplifier, receiver or stereo
system.
2. Connect the optical cable w, coaxial cable e to the digital input on your AV amplifier, D/A converter, CD-R, etc..
* Signal will be output from the digital audio out jacks (OPT./COAX.) only when a CD disc is played. When playing a Super Audio
CD disc, no signal will be output.
OUT
AUDIO OUT
EXT.
DIGITAL AUDIO OUT
INT.
REMOTE CONTROL
IN
LR
OPT. COAX.
STAN-
DARD
CUS-
TOM
FILTER
AC IN
MULTI CHANNEL
OFF ON OFF ON OFF ON
DVD
CD
REC SELECTOR
OFF
COPY
MULTI CHANNEL
SOURCE DIRECT
SPEAKER
MIN
MAX
PHONO
TUNER
CD-R
MD/TAPE
CD-R
-
+
-
+
VOLUME
L
R
PHONO CD TUNER DVD CD-R
MUTE
INPUT SELECTOR
MD/TAPE
MD/TAPE
BASS
PHONES
POWER ON/OFF
BALANCE TREBLE
To Analog Audio output
(white) (red)
To Digital Audio output
Left speaker
Right speaker
Audio cable q
(Supplied)
To audio input terminals
on amplifier
w
(Optional)
e
(Optional)
Connect to digital input
terminals of receiver, D/A
converter or CD recorder,
etc..
Example)
PM8100SA Ver.2
Example)
S version
